5kV Metal Ceramic Seal

Working Voltage: 5.0kV

Current Rating: -

Conductor Material: -

Skip to product information
1 of 1
Product Code: B2004010
Estimated Lead Time: Confirmed on Request

Product Description

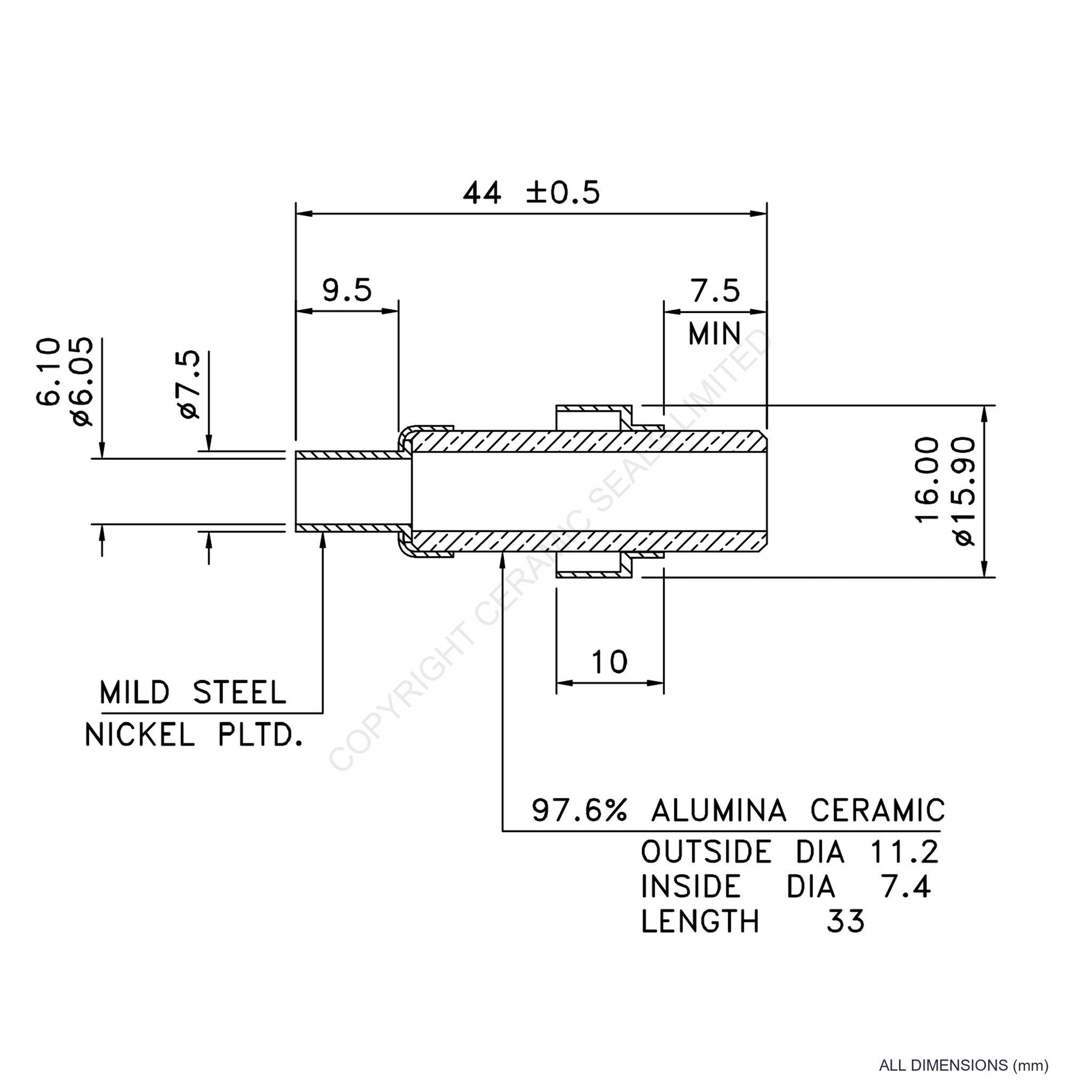

5.0kV Power feedthrough with 16.00/15.90mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Skirt (Weld)
Termination Size 16.00/15.90mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 5.0kV
