5kV Metal Ceramic Seal

Working Voltage: 5.0kV

Current Rating: 80A

Conductor Material: Stainless Steel

1 1
Product Code: B3005010
Estimated Lead Time: Confirmed on Request

Product Description

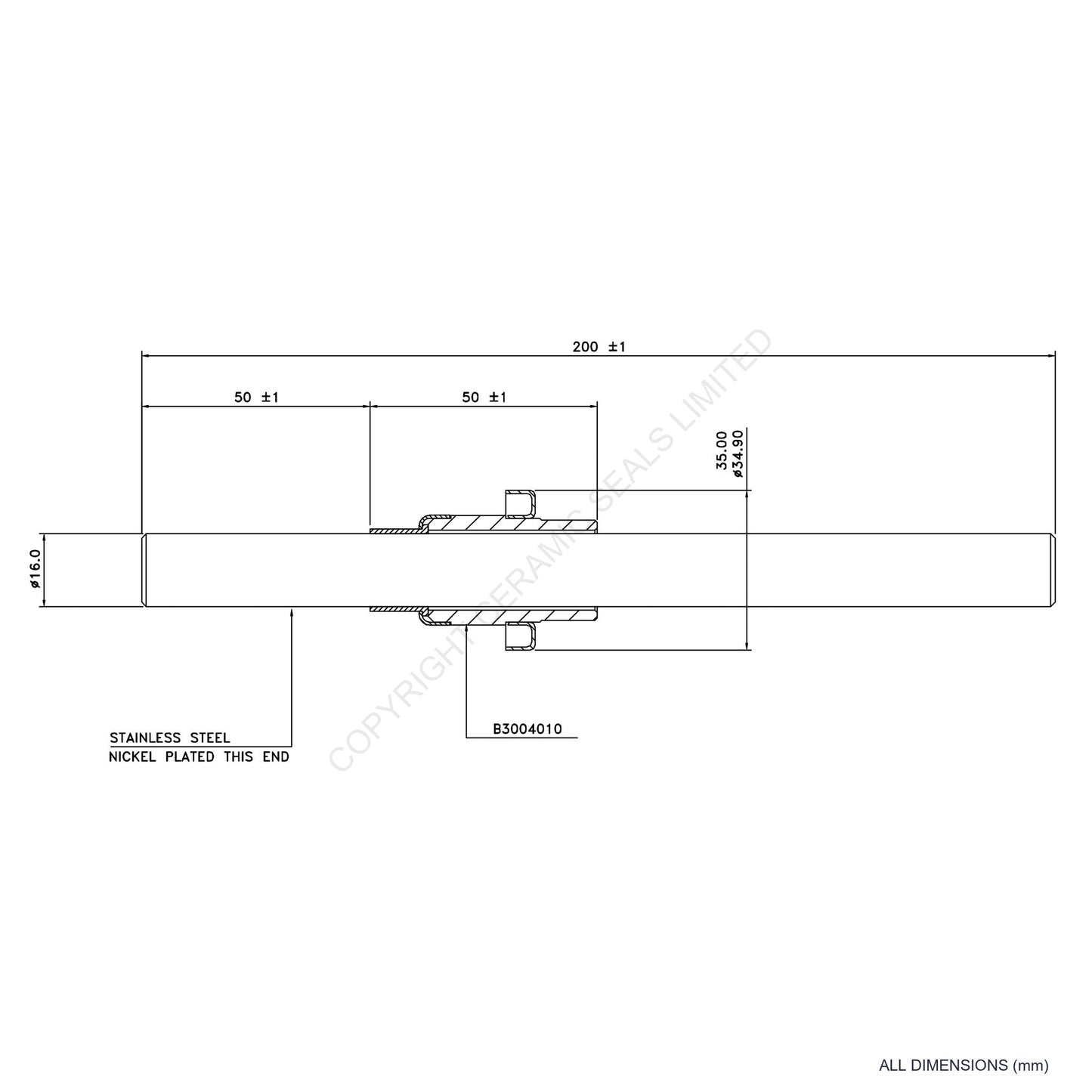

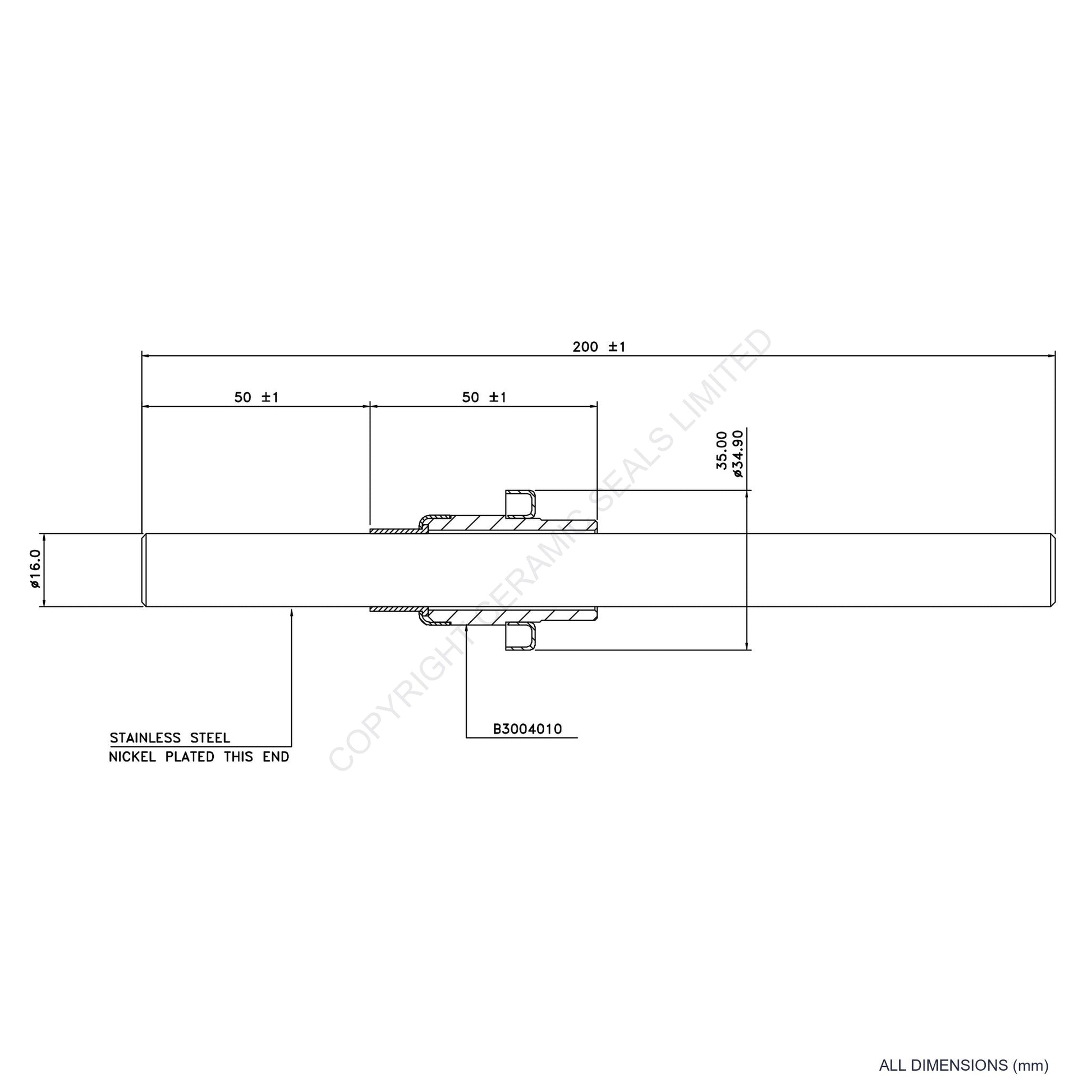

5.0kV 80A High Current feedthrough with 35.00/34.90mm Skirt (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Stainless Steel
Current Rating 80A
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 1
Termination Skirt (Weld)
Termination Size 35.00/34.90mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 5.0kV
