5kV MHV Bulkhead Feedthrough
Working Voltage: 5.0kV
Current Rating: 3A
Conductor Material:

General Specifications
Air
Side
Plug
C3009001
Configuration
Single Ended
Connector
Type
MHV
Current
Rating
3A
Feedthrough
Quantity
1
Flange
Material
Stainless Steel (1.4307)
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Bulkhead
Termination
Size
3/8" BSPT
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
5.0kV
Product Code: C3004020
5kV MHV Bulkhead Feedthrough

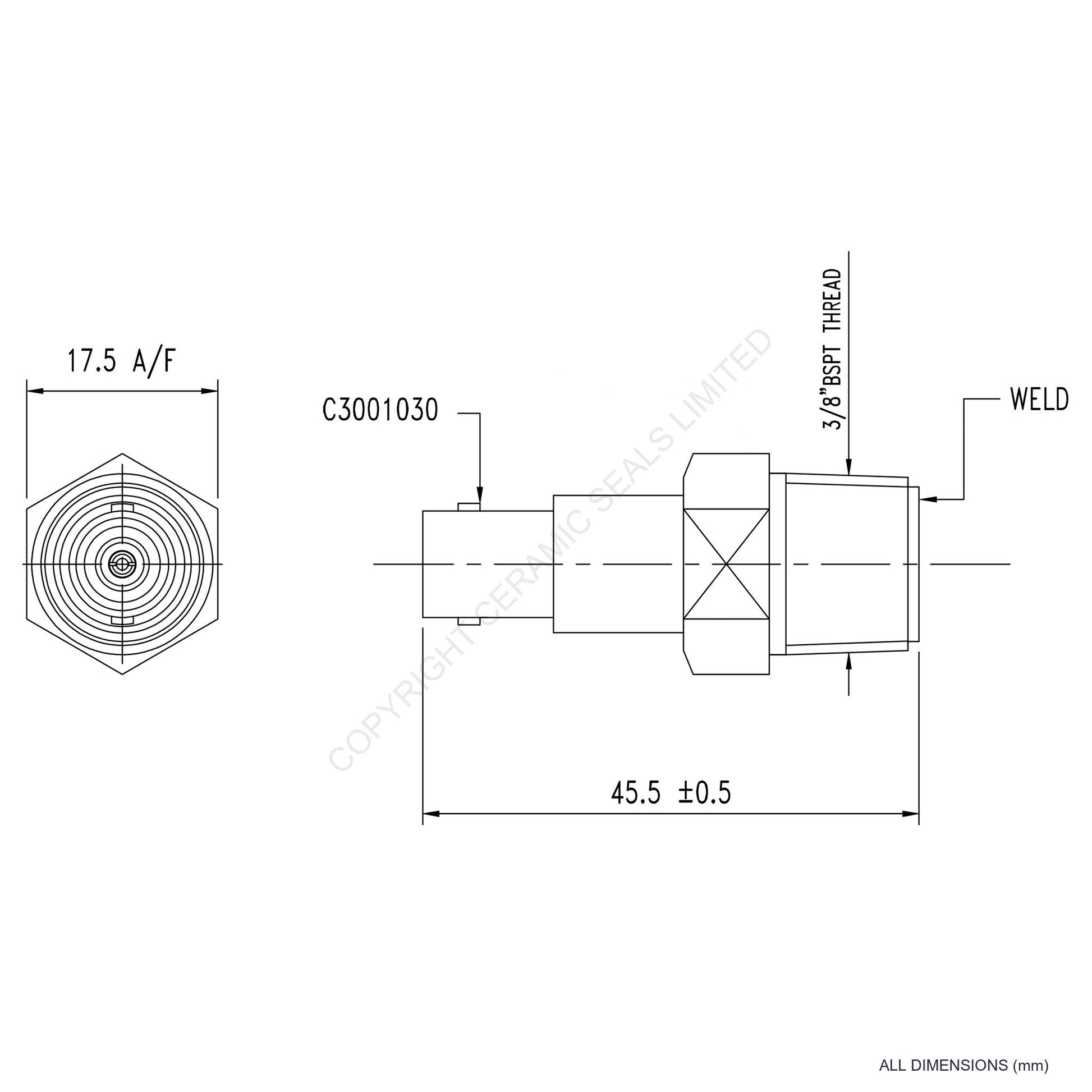

5.0kV Single Ended MHV connector with 3/8" BSPT Bulkhead termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C3009001
Configuration
Single Ended
Connector
Type
MHV
Current
Rating
3A
Feedthrough
Quantity
1
Flange
Material
Stainless Steel (1.4307)
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Bulkhead
Termination
Size
3/8" BSPT
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
5.0kV
