5kV Single Feedthrough Flanged
Working Voltage: 5.0kV
Current Rating: 70A
Conductor Material: Nickel (Alloy 200)
General Specifications
Conductor
Material
Nickel (Alloy 200)
Current
Rating
70A
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
CF Flange
Termination
Size
34mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
Product Code: B2002111

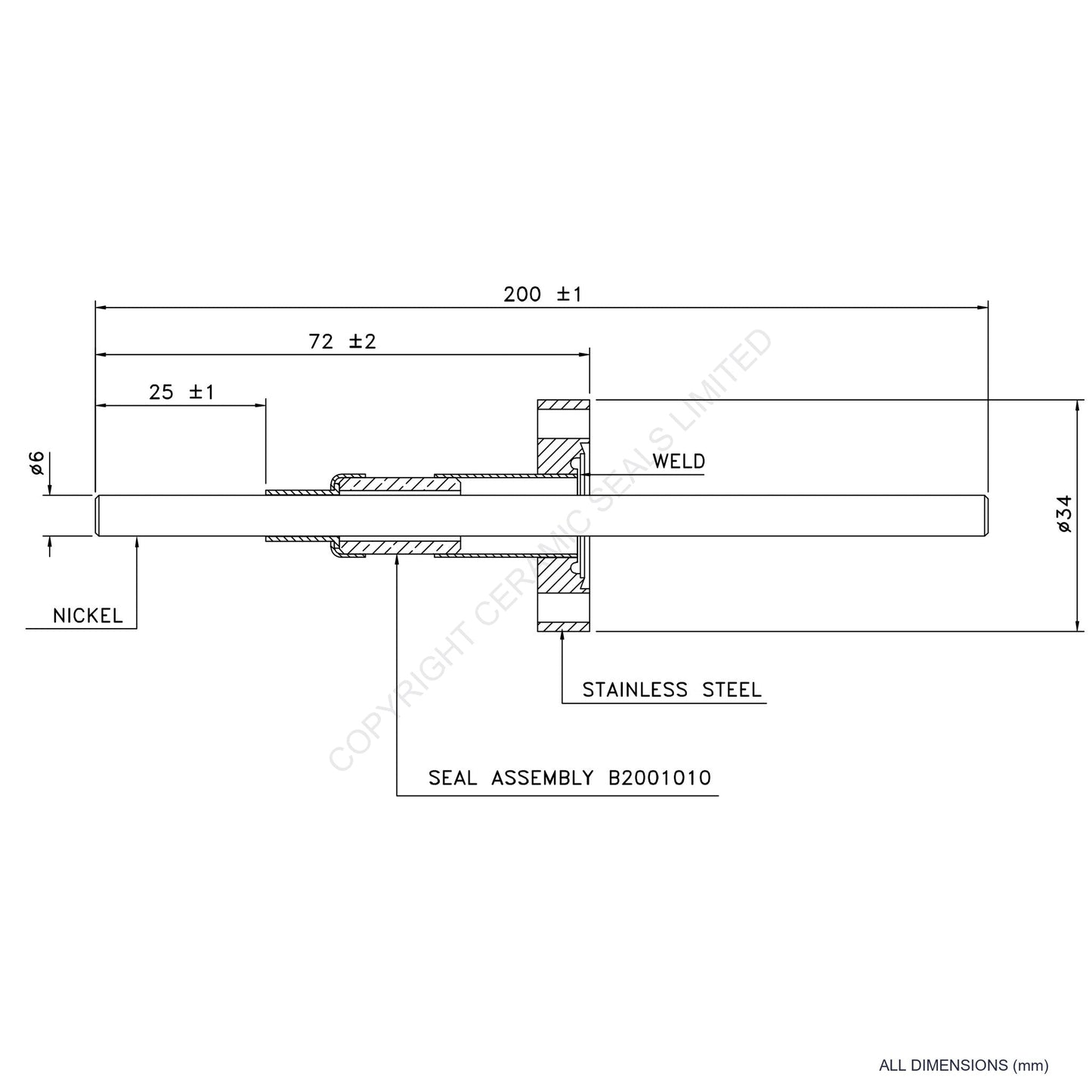

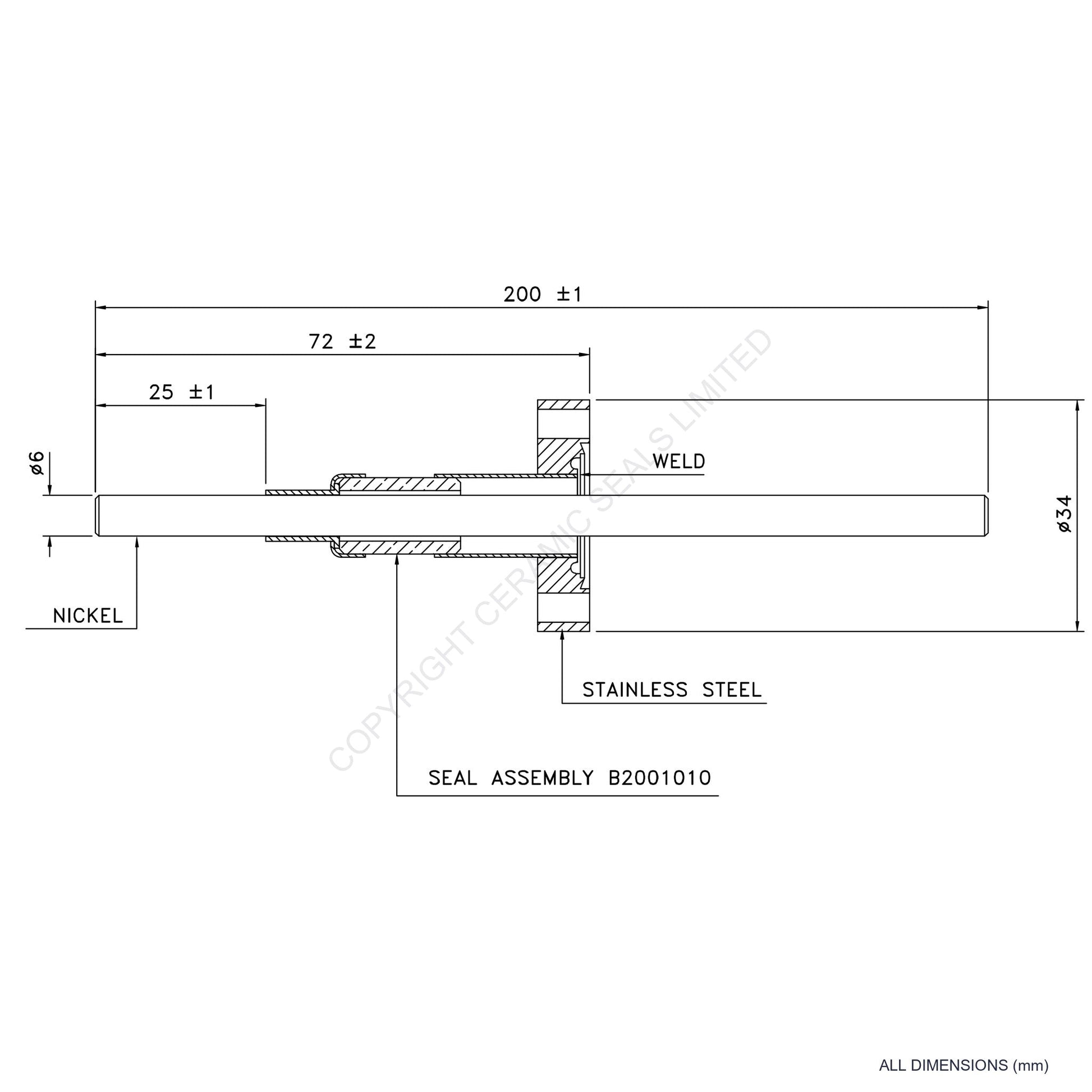

5kV Single Feedthrough Flanged
5.0kV 70A Power feedthrough with 34mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.
Conductor
Material
Nickel (Alloy 200)
Current
Rating
70A
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
No
Of
Conductors
1
Termination
CF Flange
Termination
Size
34mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
