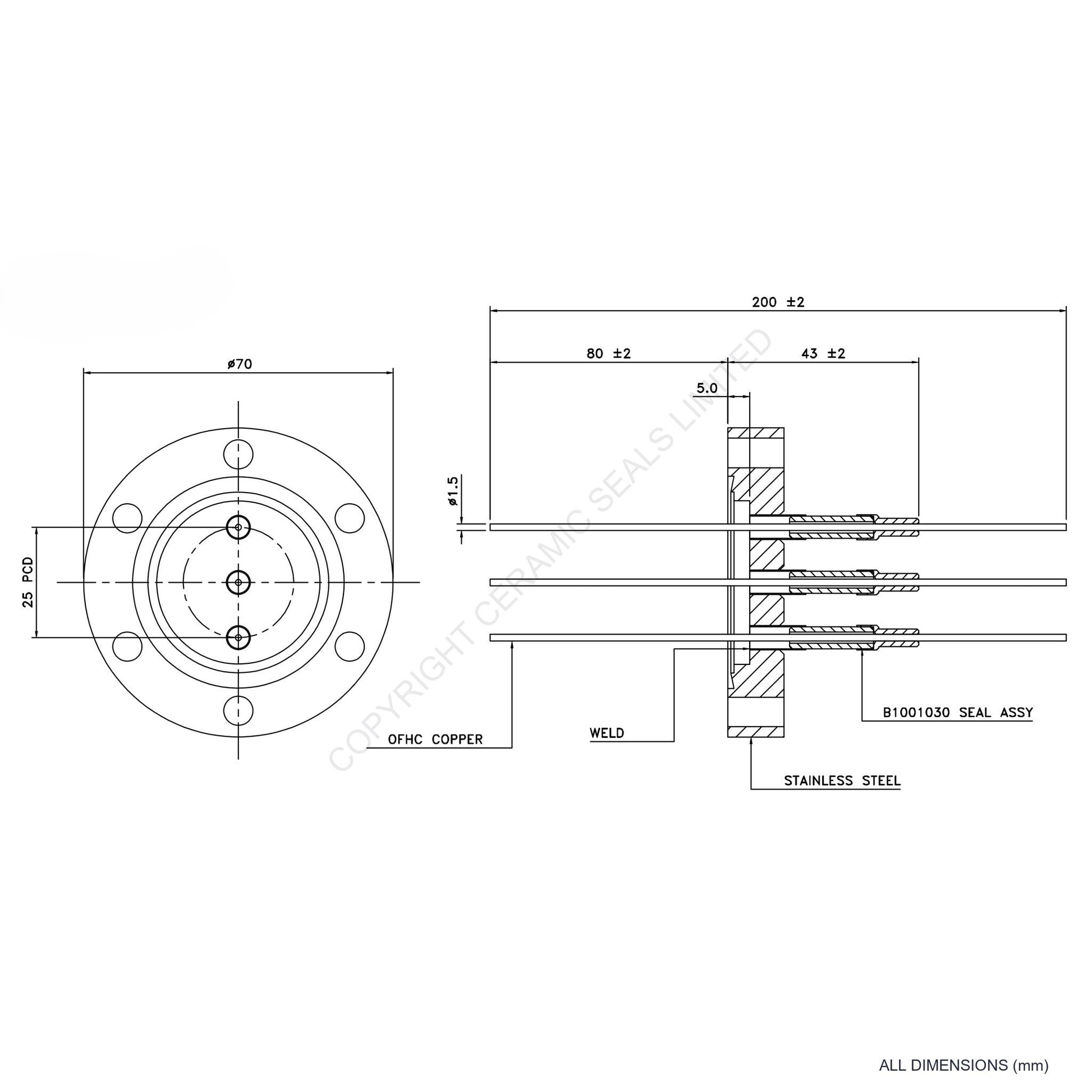

5kV Three Way Feedthrough Flanged

Working Voltage: 5.0kV

Current Rating: 20A

Conductor Material: OFHC Copper

1 1
Product Code: B1103315
Estimated Lead Time: Confirmed on Request

Product Description

5.0kV 20A Instrumentation feedthrough with 70mm CF Flange termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material OFHC Copper
Current Rating 20A
Flange Material Stainless Steel (1.4307)
Gasket O Ring Material Copper
Insulating Material Alumina (96-98%)
Magnetic Yes
No Of Conductors 3
Termination CF Flange
Termination Size 70mm
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 5.0kV
