5kV Type 'N' Feedthrough
Working Voltage: 5.0kV
Current Rating: 5A
Conductor Material:

General Specifications
Air
Side
Plug
C6009001
Configuration
Single Ended
Connector
Type
N Type
Current
Rating
5A
Feedthrough
Quantity
1
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination
Size
9.60/9.40mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
Product Code: C6001120

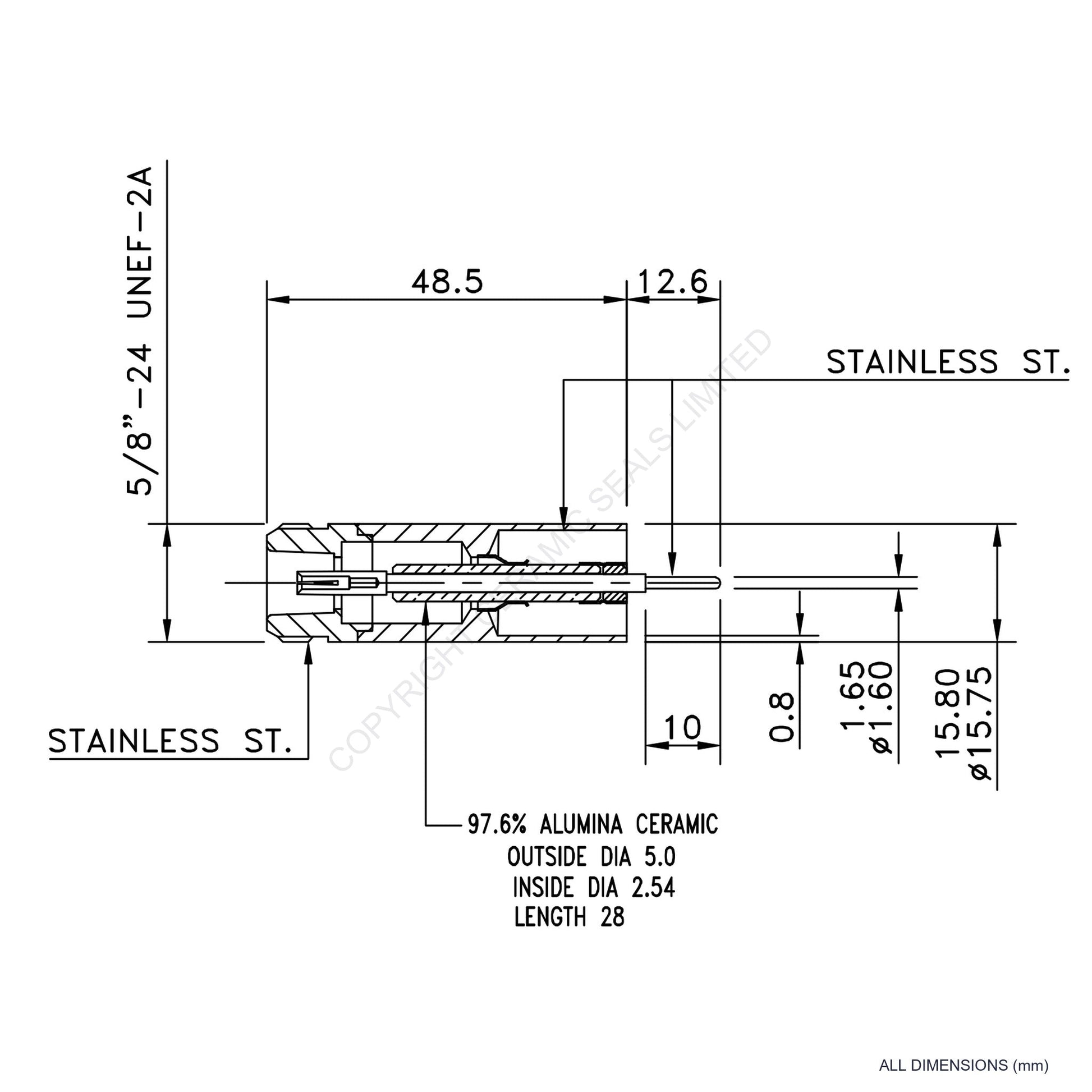

5kV Type 'N' Feedthrough
5.0kV Single Ended N Type connector with 9.60/9.40mm Tube (Weld) termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Air
Side
Plug
C6009001
Configuration
Single Ended
Connector
Type
N Type
Current
Rating
5A
Feedthrough
Quantity
1
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination
Size
9.60/9.40mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
5.0kV
