Heat Sink Isolator (M5)
Working Voltage: -
Current Rating:
Conductor Material:

General Specifications
Insulating
Material
Alumina (96-98%)
Isolator
Type
Heat Sink Isolator
Magnetic
Yes
Termination
Thread Female
Termination
Size
M5
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: F4004040

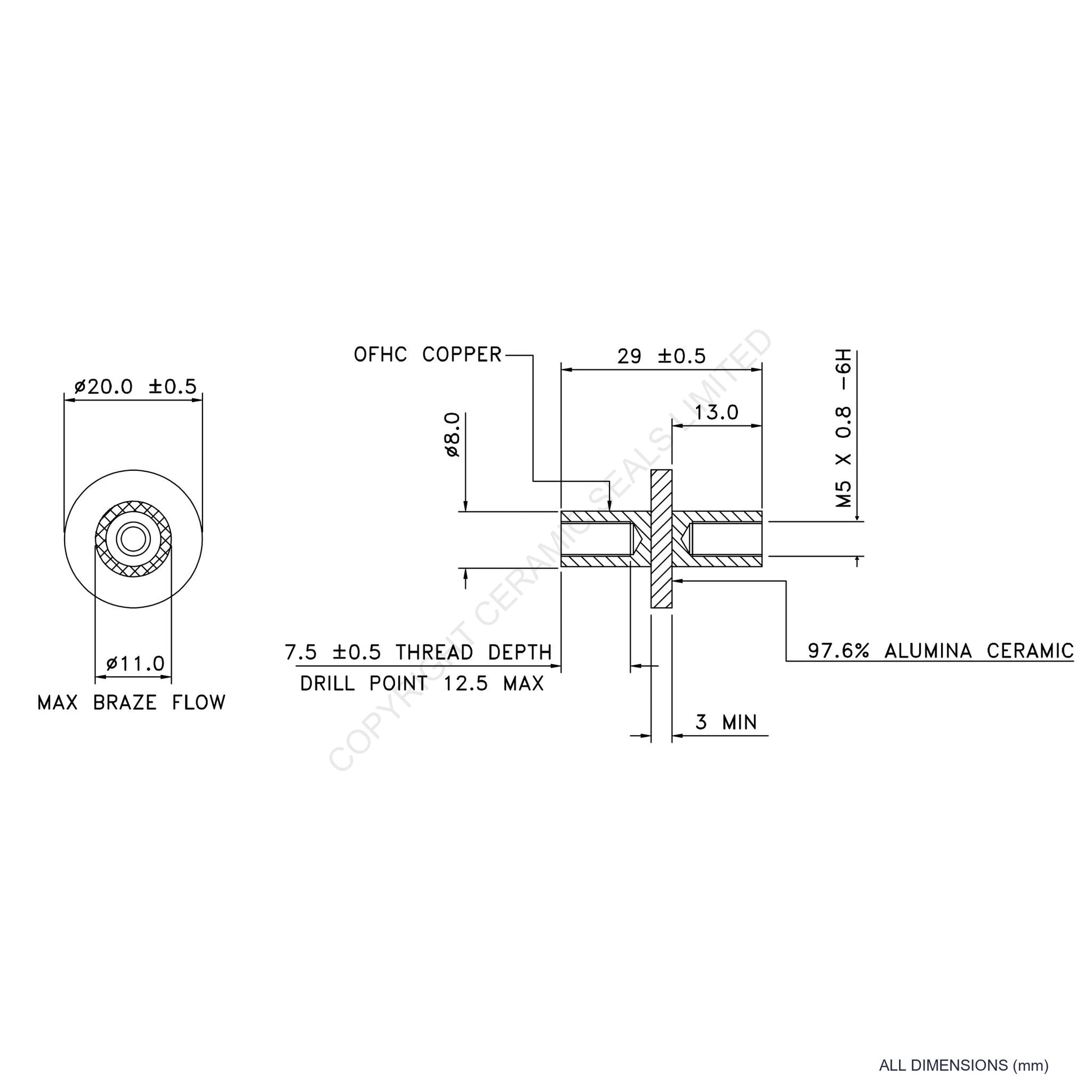

Heat Sink Isolator (M5)
Heat Sink Isolator with M5 Thread Female termination. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Insulating
Material
Alumina (96-98%)
Isolator
Type
Heat Sink Isolator
Magnetic
Yes
Termination
Thread Female
Termination
Size
M5
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
