In Vacuum Connector 12 Way Female
Working Voltage:
Current Rating: 2A
Conductor Material:
General Specifications
Breakdown
Voltage
Pin
To
Pin
3.5kV (Min)
Current
Rating
2A
For
Use
With
E2002020/E7502010/E7502020
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
In Vacuum Connector
No
Of
Pins
12
Working
Temperature
-196°C to 450°C
Product Code: E9002040

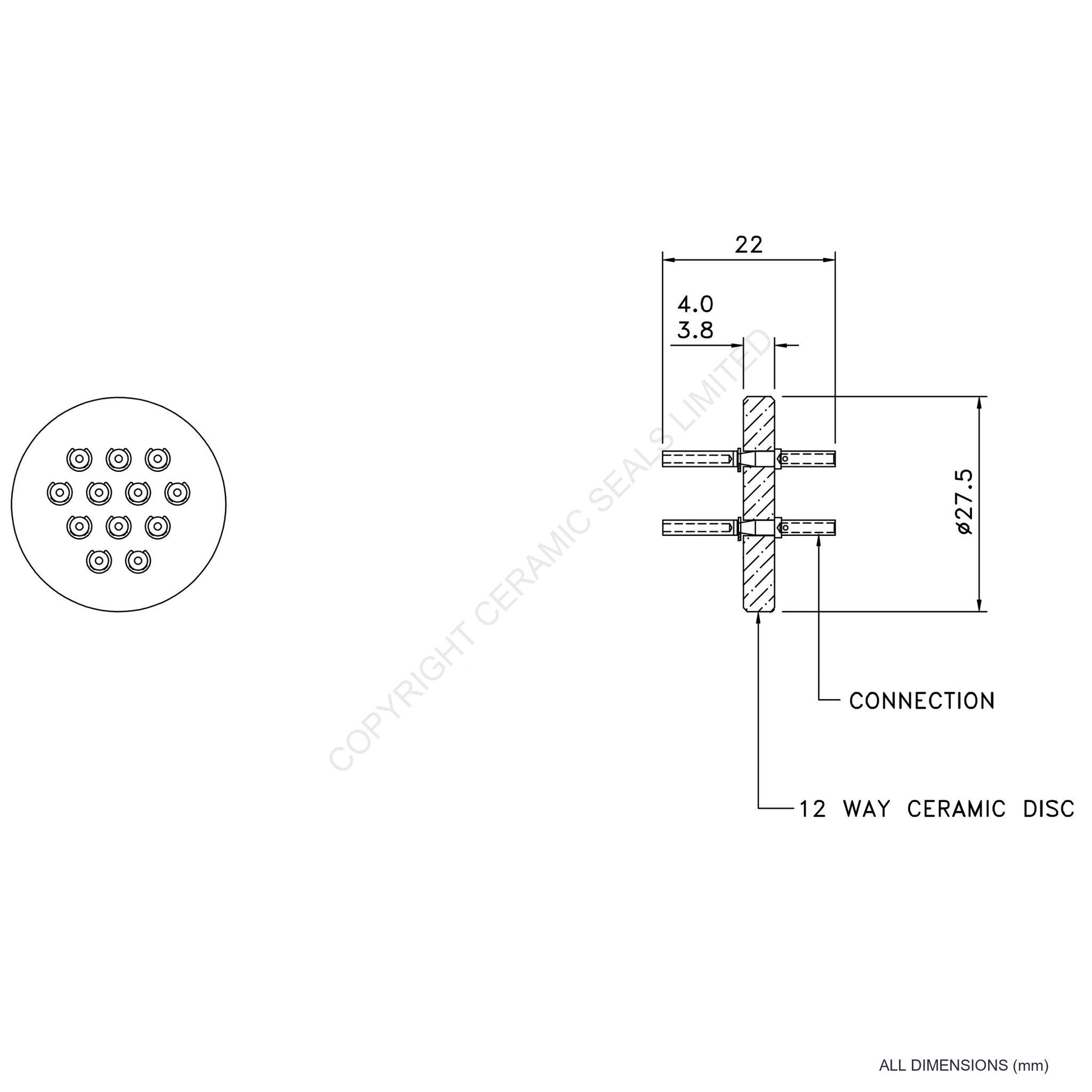

In Vacuum Connector 12 Way Female
12 Pin In Vacuum Connector. Rated for a working temperature of -196°C to 450°C and leak rate .
Breakdown
Voltage
Pin
To
Pin
3.5kV (Min)
Current
Rating
2A
For
Use
With
E2002020/E7502010/E7502020
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
In Vacuum Connector
No
Of
Pins
12
Working
Temperature
-196°C to 450°C
