In Vacuum Connector 5 Way Male
Working Voltage:
Current Rating: 4A
Conductor Material:
General Specifications
Breakdown
Voltage
Pin
To
Pin
10.0kV (Min)
Current
Rating
4A
For
Use
With
E6002020
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
In Vacuum Connector
No
Of
Pins
5
Working
Temperature
-196°C to 450°C
Product Code: E9004010

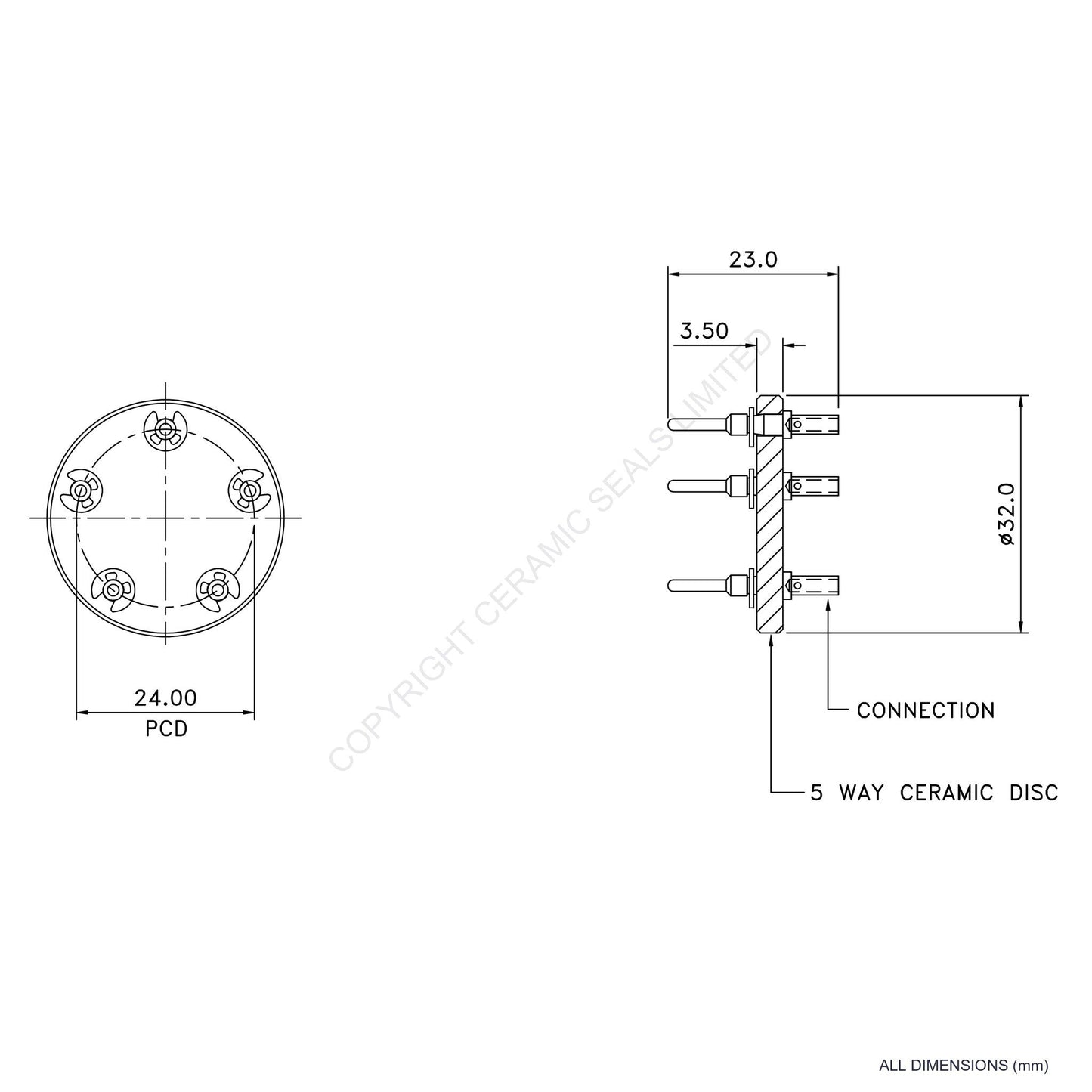

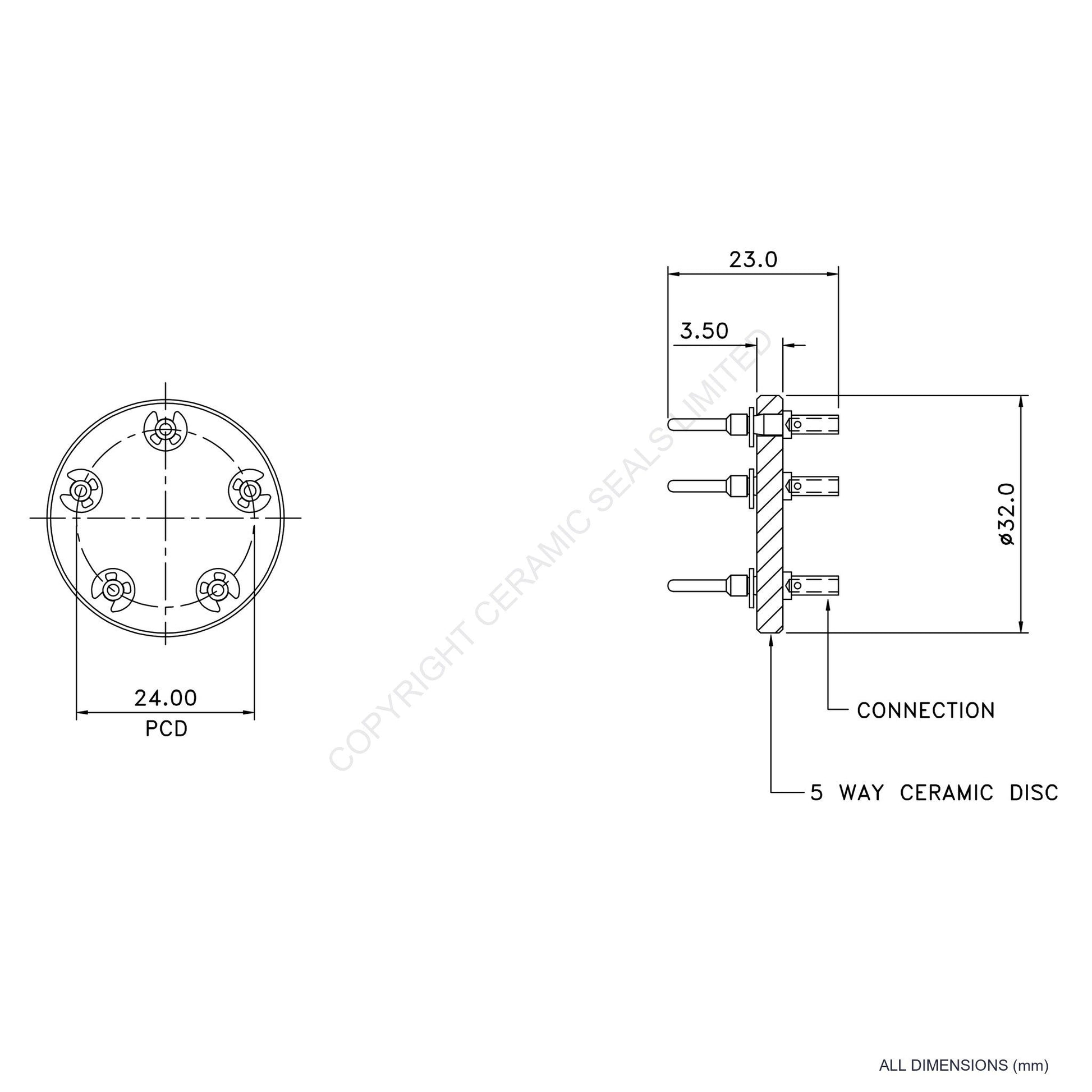

In Vacuum Connector 5 Way Male
5 Pin In Vacuum Connector. Rated for a working temperature of -196°C to 450°C and leak rate .
Breakdown
Voltage
Pin
To
Pin
10.0kV (Min)
Current
Rating
4A
For
Use
With
E6002020
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Multi
Pin
Type
In Vacuum Connector
No
Of
Pins
5
Working
Temperature
-196°C to 450°C
