Power And Thermocouple Type J
Working Voltage: 2.5kV
Current Rating: 5A
Conductor Material: Iron / Constantan

General Specifications
Conductor
Material
Iron / Constantan
Current
Rating
5A
Feedthrough
Style
Thermocouple & Power
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
CF Flange
Termination
Size
34mm
Thermocouple
Range
20°C to 700°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type J
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
2.5kV
Product Code: D6002020
Power And Thermocouple Type J

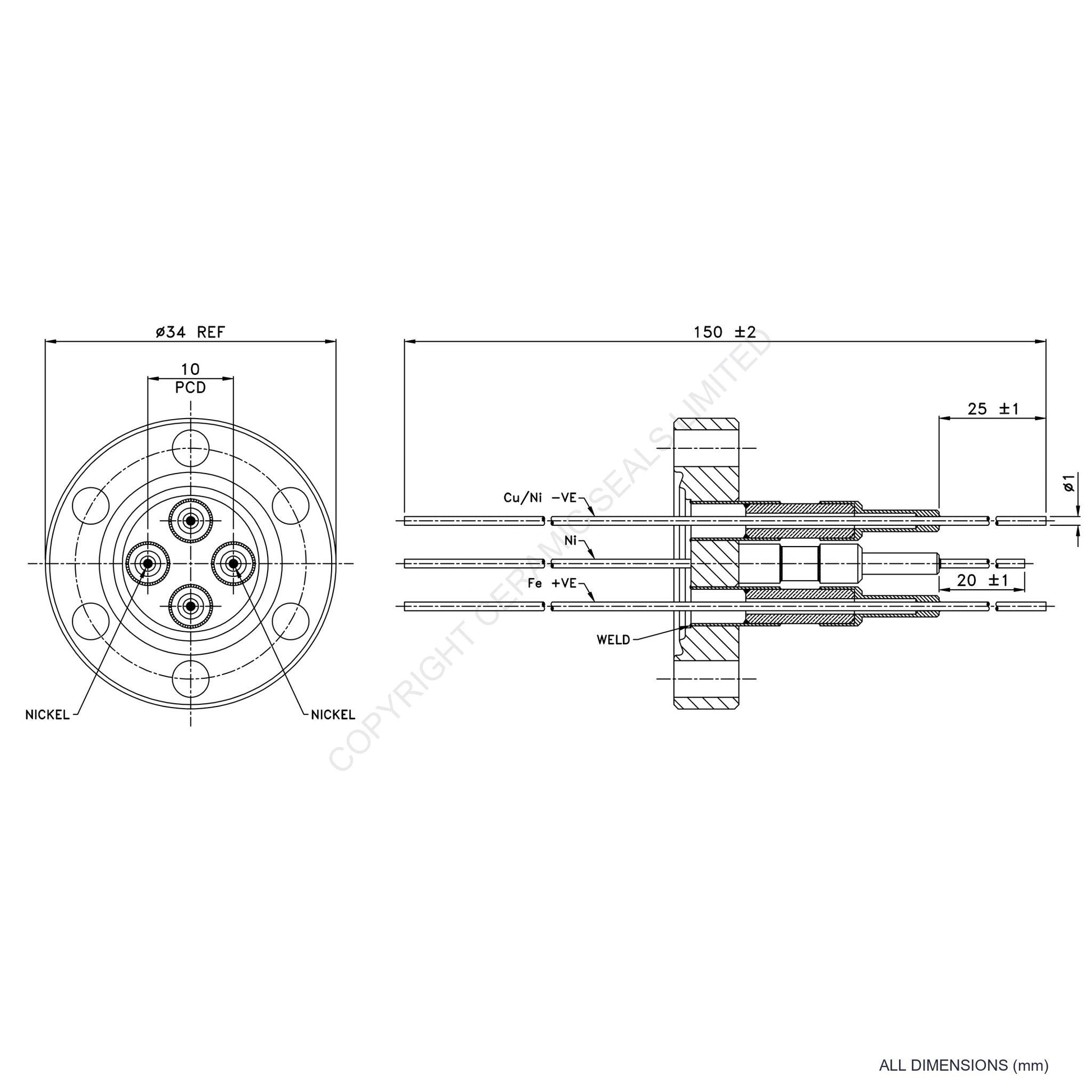

Type J thermocouple feedthrough with Iron / Constantan conductors and Plain terminations. Includes 2.5kV 5A power feedthrough and 34mm CF Flange mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Iron / Constantan
Current
Rating
5A
Feedthrough
Style
Thermocouple & Power
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Copper
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
CF Flange
Termination
Size
34mm
Thermocouple
Range
20°C to 700°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type J
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Working
Voltage
2.5kV
