Power & Thermocouple Flanged Type S incl. Compensating Cables

Working Voltage: 2.5kV

Current Rating: 5A

Conductor Material: Platinum - 10% Rhodium / Platinum

1 1
Product Code: D6002050
Estimated Lead Time: Confirmed on Request

Product Description

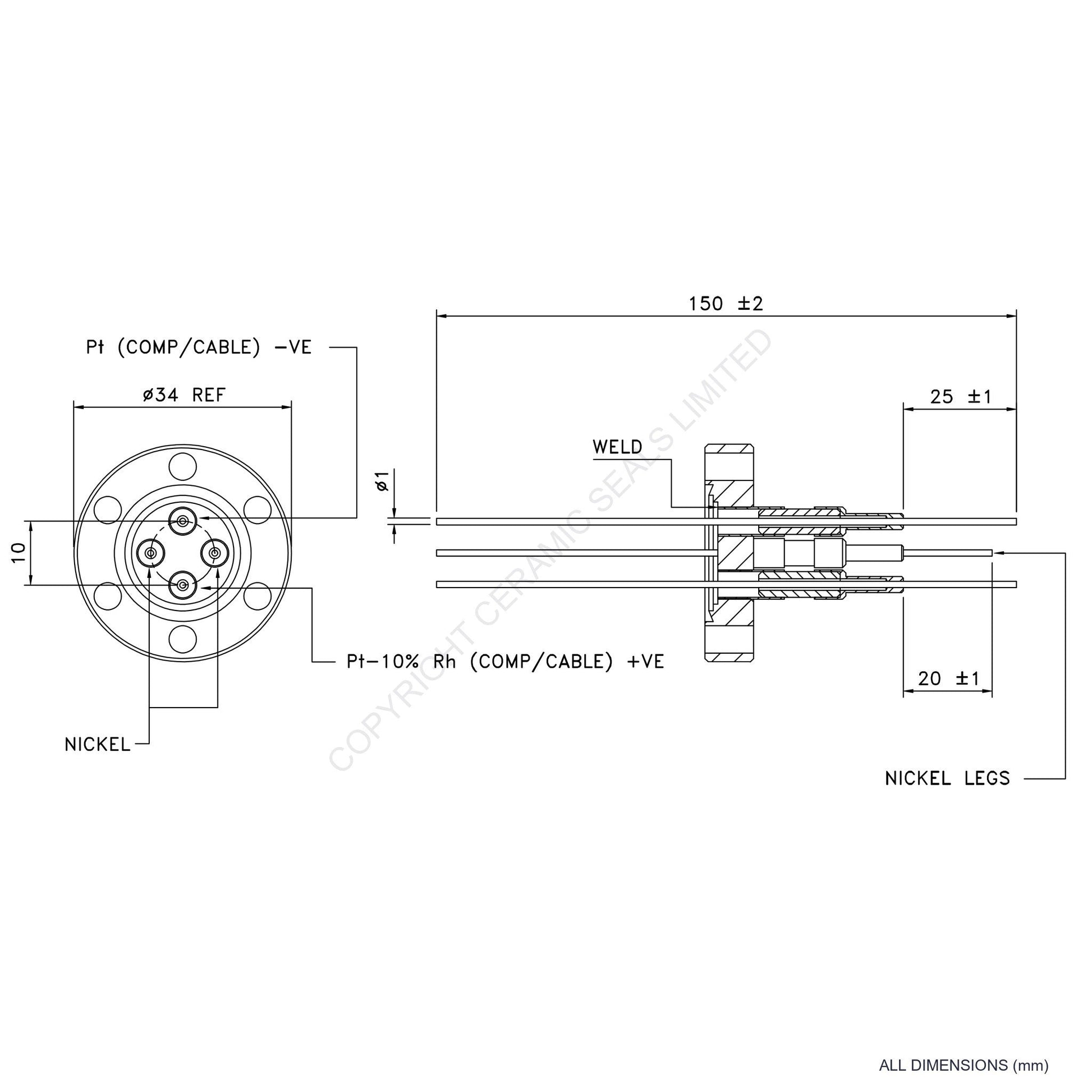

Type S thermocouple feedthrough with Platinum - 10% Rhodium / Platinum conductors and Plain terminations. Includes 2.5kV 5A power feedthrough and 34mm CF Flange mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Platinum - 10% Rhodium / Platinum
Current Rating 5A
Feedthrough Style Thermocouple & Power
Flange Material Stainless Steel (1.4307)
Gasket O Ring Material Copper
Insulating Material Alumina (96-98%)
Magnetic Yes
Termination CF Flange
Termination Size 34mm
Thermocouple Range 0°C to 1500°C
Thermocouple Termination Plain
Thermocouple Type Type S
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
Working Voltage 2.5kV
