Power & Thermocouple O-Ring Type K
Working Voltage: 2.5kV
Current Rating: 5A
Conductor Material: Chromel / Alumel

General Specifications
Conductor
Material
Chromel / Alumel
Current
Rating
5A
Feedthrough
Style
Thermocouple & Power
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Klein Flange
Termination
Size
40mm
Thermocouple
Range
0°C to 1100°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type K
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
2.5kV
Product Code: D6003030

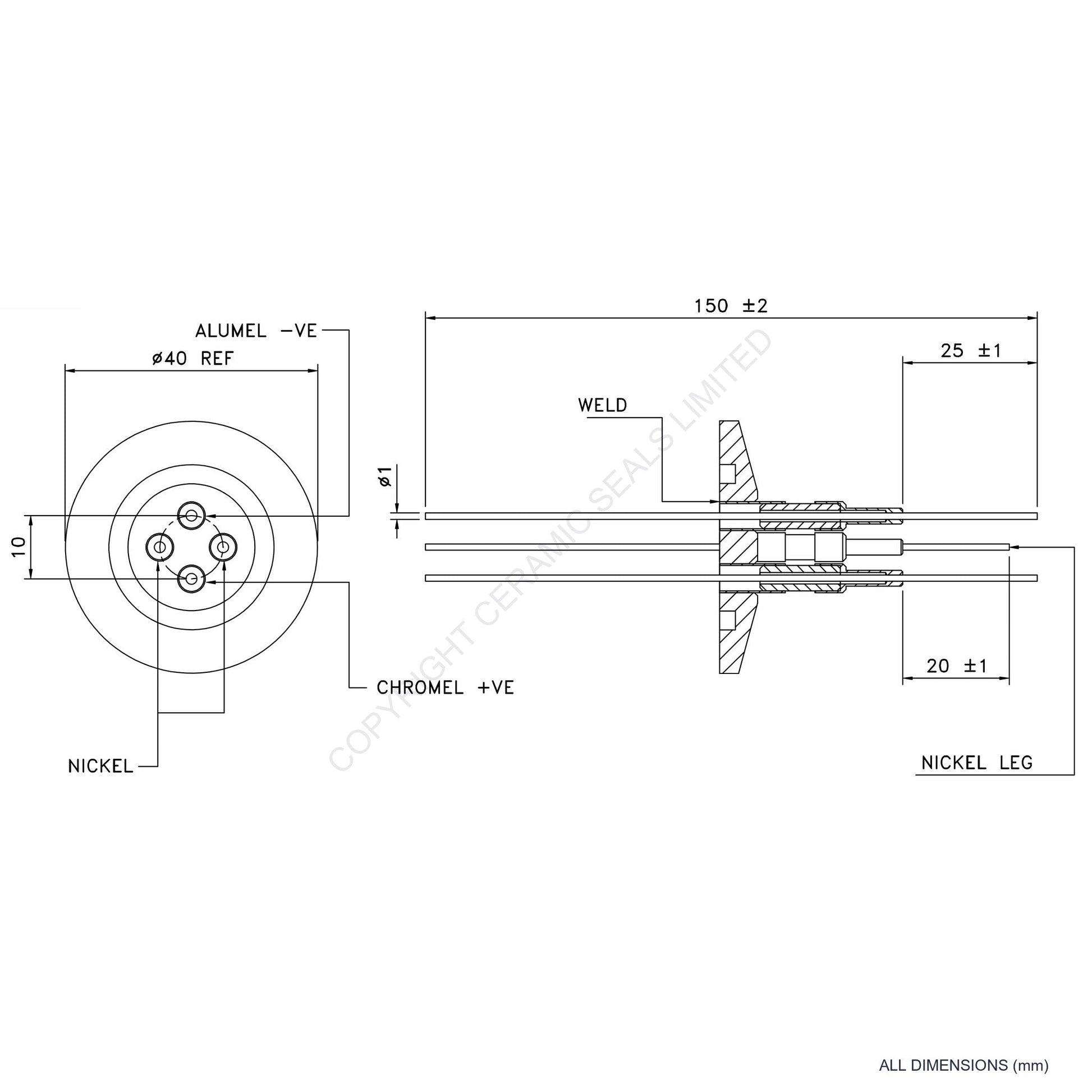

Power & Thermocouple O-Ring Type K
Type K thermocouple feedthrough with Chromel / Alumel conductors and Plain terminations. Includes 2.5kV 5A power feedthrough and 40mm Klein Flange mounting. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Chromel / Alumel
Current
Rating
5A
Feedthrough
Style
Thermocouple & Power
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Nitrile
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Klein Flange
Termination
Size
40mm
Thermocouple
Range
0°C to 1100°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type K
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-20°C to 150°C
Working
Voltage
2.5kV
