Single Thermocouple (-) Alumel
Working Voltage: -
Current Rating: -
Conductor Material: Alumel

General Specifications
Conductor
Material
Alumel
Feedthrough
Style
Single
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Tube (Weld)
Termination
Size
4.55/4.45mm
Thermocouple
Termination
Plain
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: D1002014

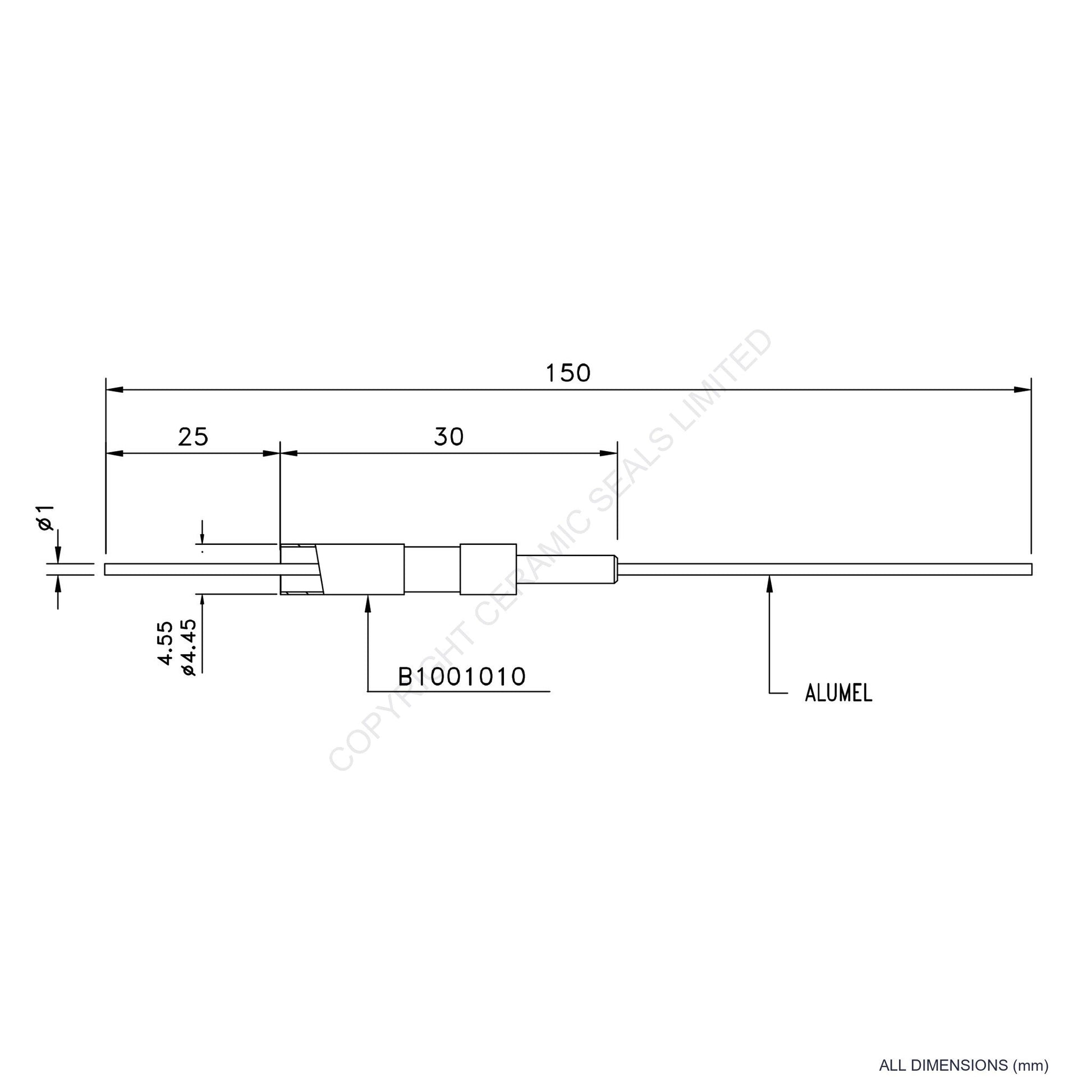

Single Thermocouple (-) Alumel
Single thermocouple feedthrough with Alumel conductor and Plain terminations. 4.55/4.45mm Tube (Weld) mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Alumel
Feedthrough
Style
Single
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Tube (Weld)
Termination
Size
4.55/4.45mm
Thermocouple
Termination
Plain
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
