Single Thermocouple (-) Platinum incl. Compensating Cable

Working Voltage: -

Current Rating: -

Conductor Material: Platinum

1 1
Product Code: D1002016
Estimated Lead Time: Confirmed on Request

Product Description

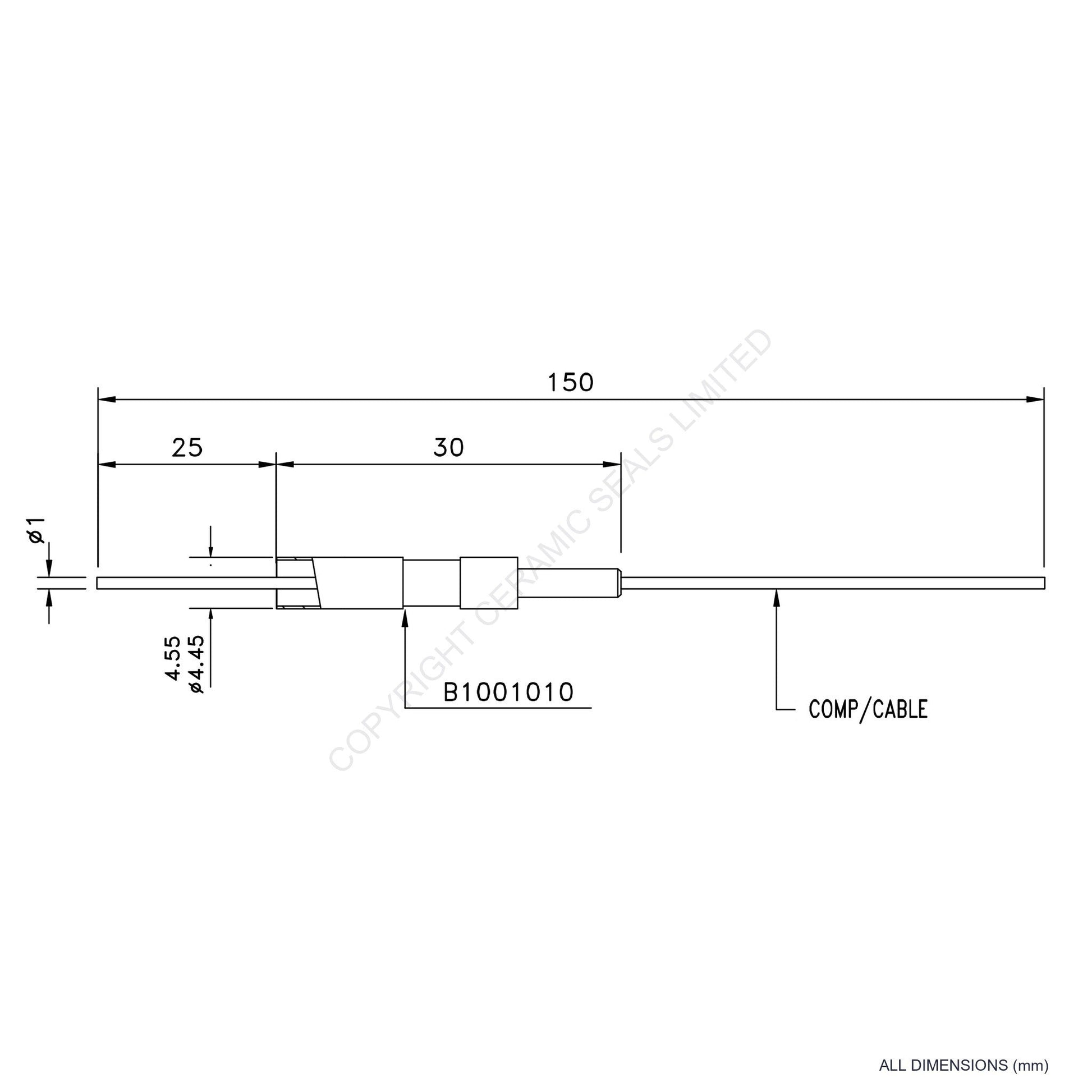

Single thermocouple feedthrough with Platinum conductor and Plain terminations. 4.55/4.45mm Tube (Weld) mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Platinum
Feedthrough Style Single
Insulating Material Alumina (96-98%)
Magnetic Yes
Termination Tube (Weld)
Termination Size 4.55/4.45mm
Thermocouple Termination Plain
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
