Single Thermocouple (+) Chromel

Working Voltage: -

Current Rating: -

Conductor Material: Chromel

Skip to product information
1 of 1
Product Code: D1502003
Estimated Lead Time: Confirmed on Request

Product Description

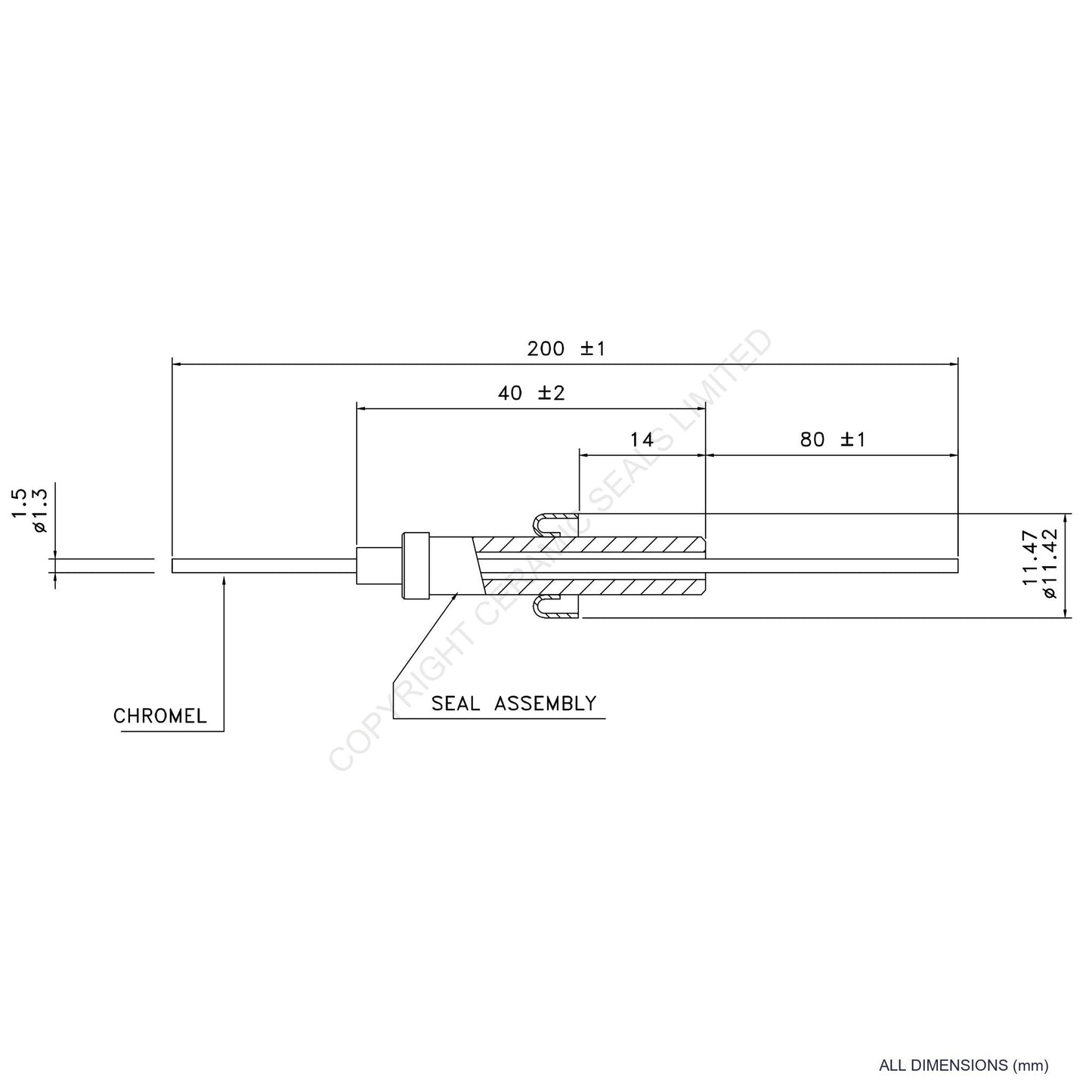

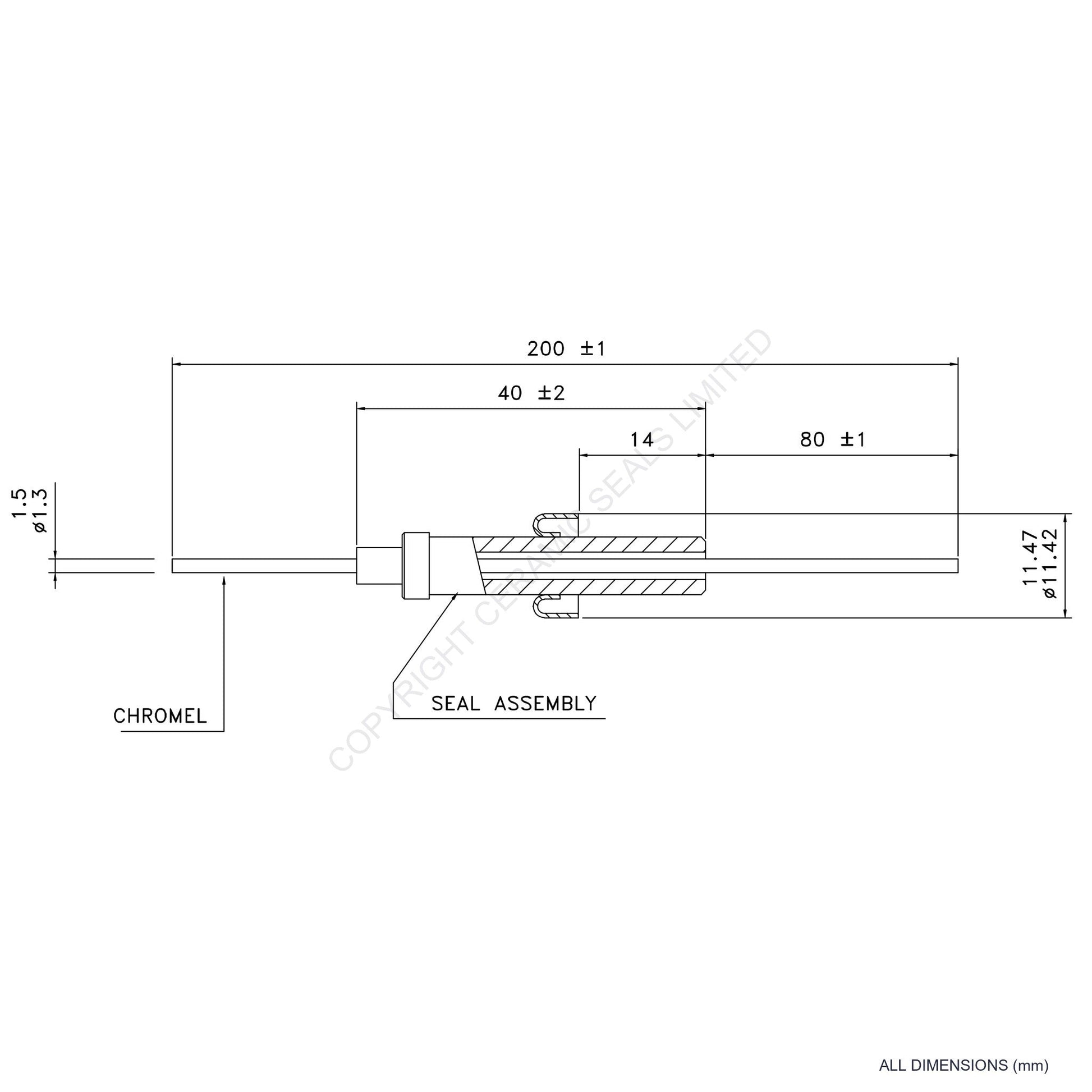

Single thermocouple feedthrough with Chromel conductor and Plain terminations. 11.47/11.42mm Skirt (Weld) mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

View full details

General Specifications

Conductor Material Chromel
Feedthrough Style Single
Insulating Material Alumina (96-98%)
Magnetic Yes
Termination Skirt (Weld)
Termination Size 11.47/11.42mm
Thermocouple Termination Plain
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
