Twin Thermocouple Type J

Working Voltage: -

Current Rating: -

Conductor Material: Iron / Constantan

1 1
Product Code: D2002002
Estimated Lead Time: Confirmed on Request

Product Description

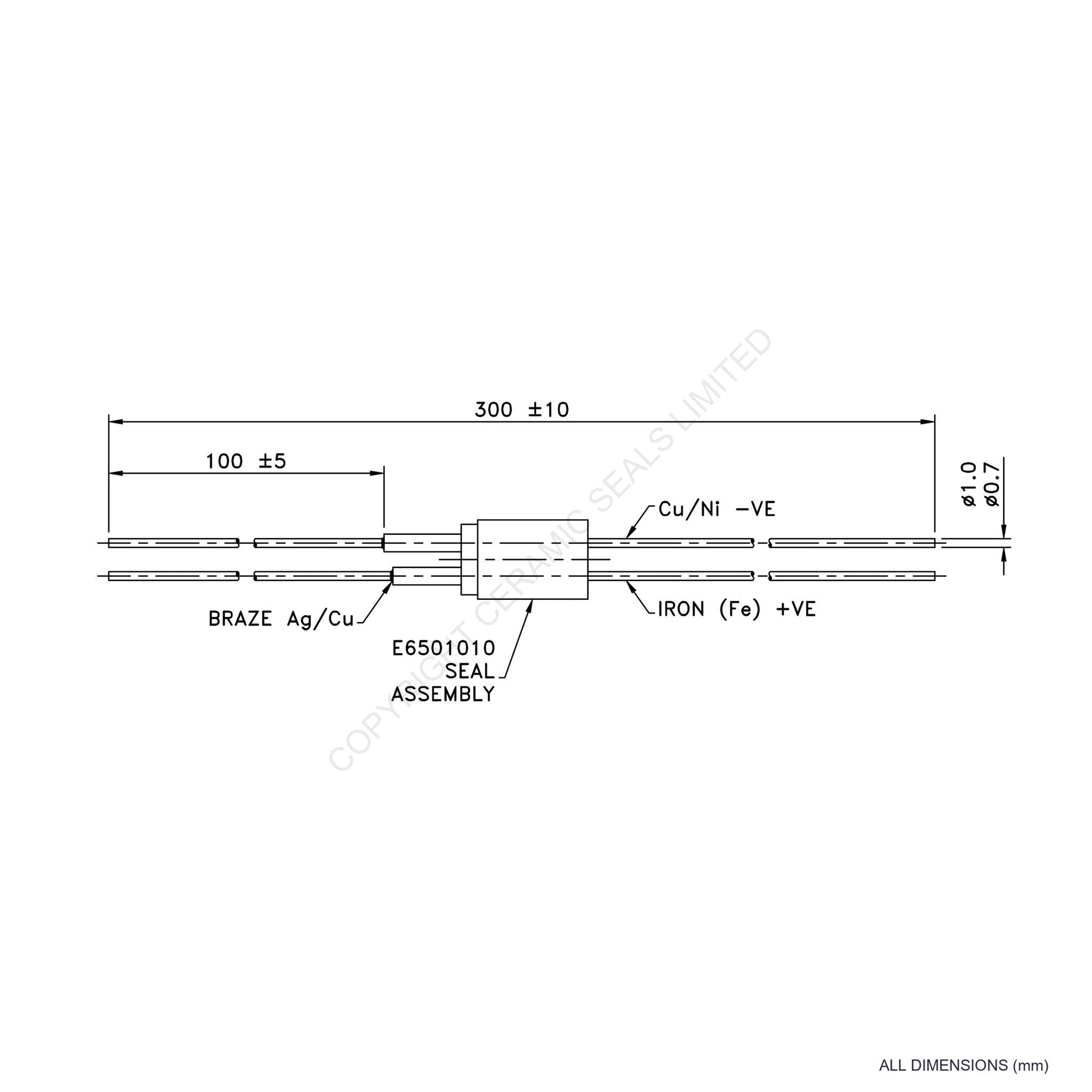

Type J thermocouple feedthrough with Iron / Constantan conductors and Plain terminations. 7.25/7.10mm Tube (Weld) mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Technical References

Download spec sheet
View full details

General Specifications

Conductor Material Iron / Constantan
Feedthrough Style Twin
Insulating Material Alumina (96-98%)
Magnetic Yes
Termination Tube (Weld)
Termination Size 7.25/7.10mm
Thermocouple Range 20°C to 700°C
Thermocouple Termination Plain
Thermocouple Type Type J
U H V Capability < 1 x 10¯⁹ mbar l s¯¹
Working Temperature -196°C to 450°C
