Twin Thermocouple Type K
Working Voltage: -
Current Rating: -
Conductor Material: Chromel / Alumel

General Specifications
Conductor
Material
Chromel / Alumel
Feedthrough
Style
Twin
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Tube (Weld)
Termination
Size
7.25/7.10mm
Thermocouple
Range
0°C to 1100°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type K
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
Product Code: D2002013

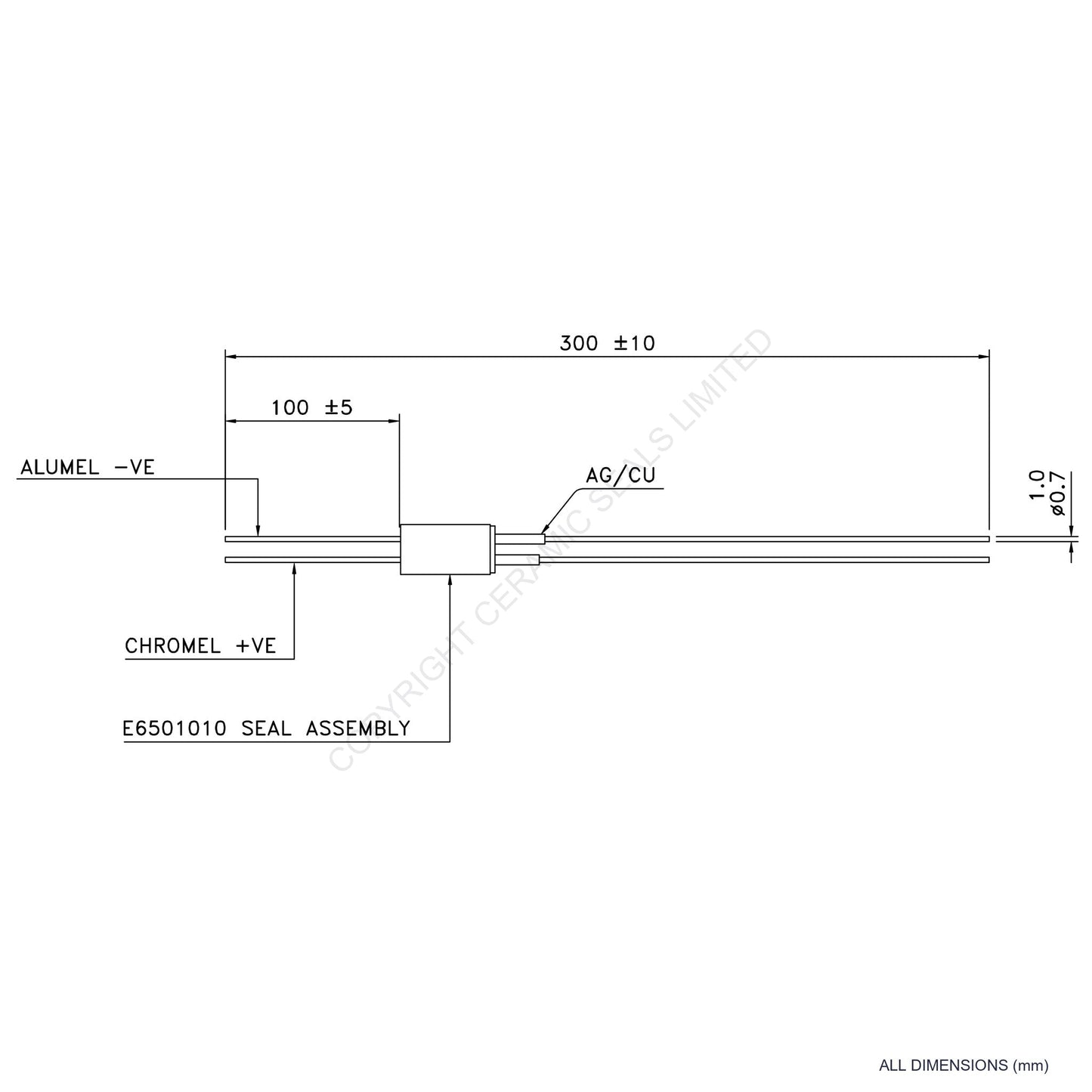

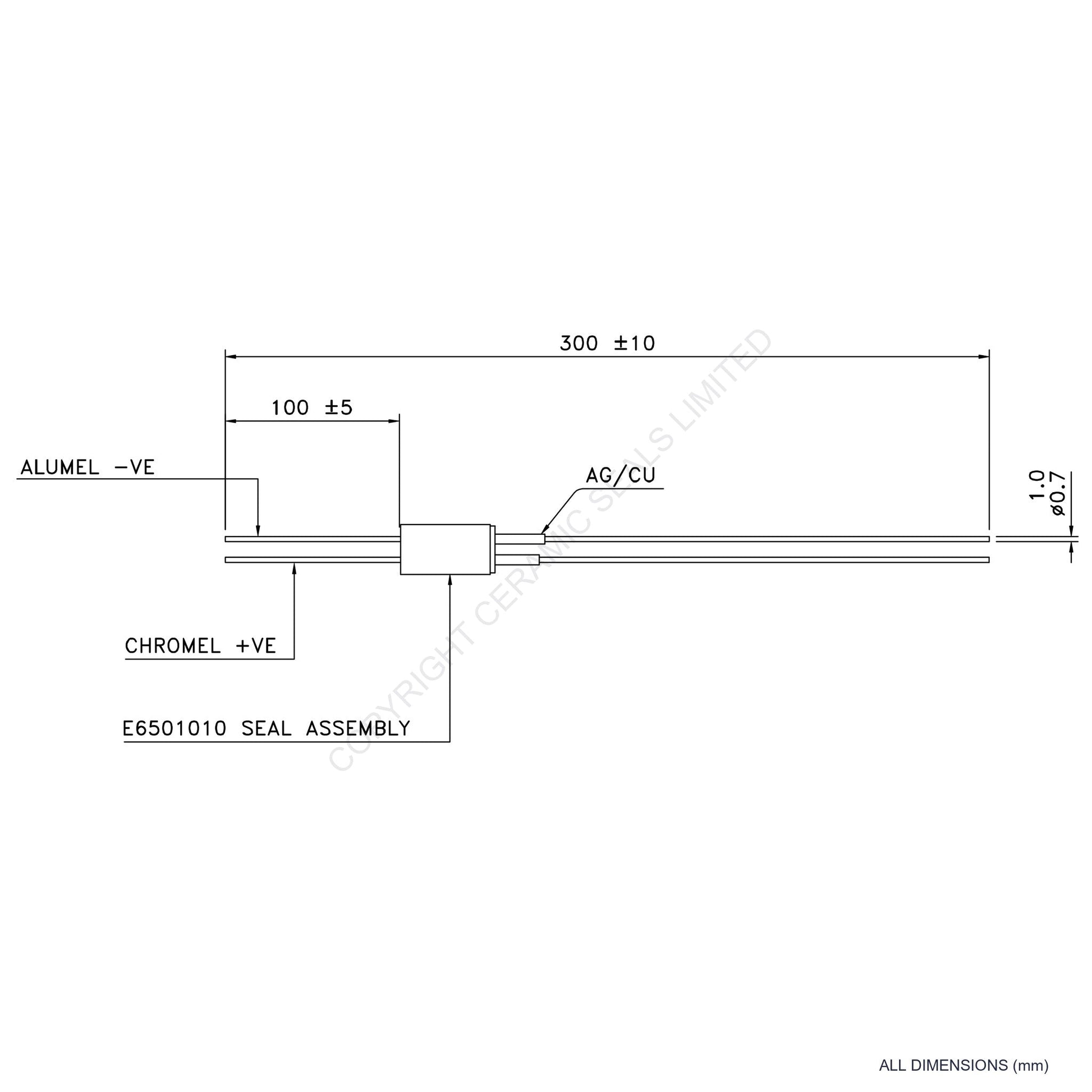

Twin Thermocouple Type K
Type K thermocouple feedthrough with Chromel / Alumel conductors and Plain terminations. 7.25/7.10mm Tube (Weld) mounting. Rated for a working temperature of -196°C to 450°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Conductor
Material
Chromel / Alumel
Feedthrough
Style
Twin
Insulating
Material
Alumina (96-98%)
Magnetic
Yes
Termination
Tube (Weld)
Termination
Size
7.25/7.10mm
Thermocouple
Range
0°C to 1100°C
Thermocouple
Termination
Plain
Thermocouple
Type
Type K
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Working
Temperature
-196°C to 450°C
