Viewport O-Ring Flanged (25mm)
Working Voltage:
Current Rating:
Conductor Material:

General Specifications
Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Nitrile
Magnetic
Yes
Termination
Klein Flange
Termination
Size
55mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport
Material
Sapphire
View
Diameter
25mm
Working
Temperature
-20°C to 150°C
Product Code: G7002040
Viewport O-Ring Flanged (25mm)

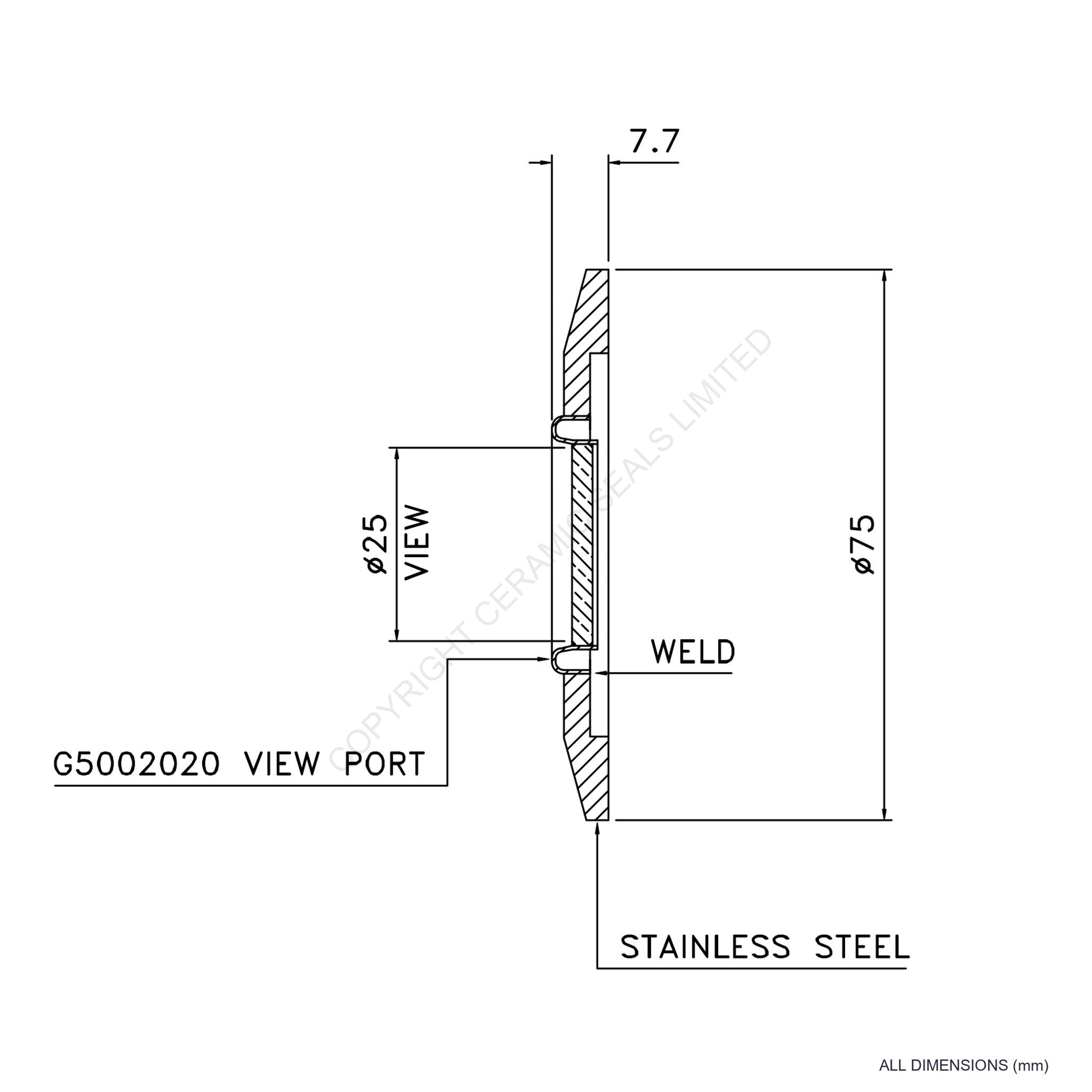

Sapphire Viewport 25mm diameter with 55mm Klein Flange termination. Rated for a working temperature of -20°C to 150°C and leak rate < 1 x 10¯⁹ mbar l s¯¹.

Flange
Material
Stainless Steel (1.4307)
Gasket
O
Ring
Material
Nitrile
Magnetic
Yes
Termination
Klein Flange
Termination
Size
55mm
U
H
V
Capability
< 1 x 10¯⁹ mbar l s¯¹
Viewport
Material
Sapphire
View
Diameter
25mm
Working
Temperature
-20°C to 150°C
