Coaxial Connectors

Product Collection

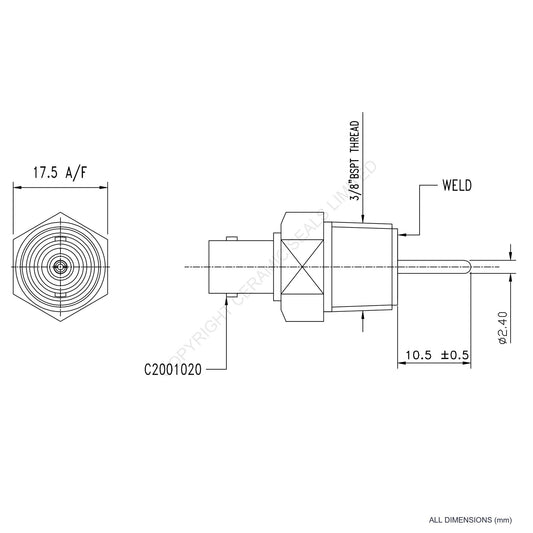

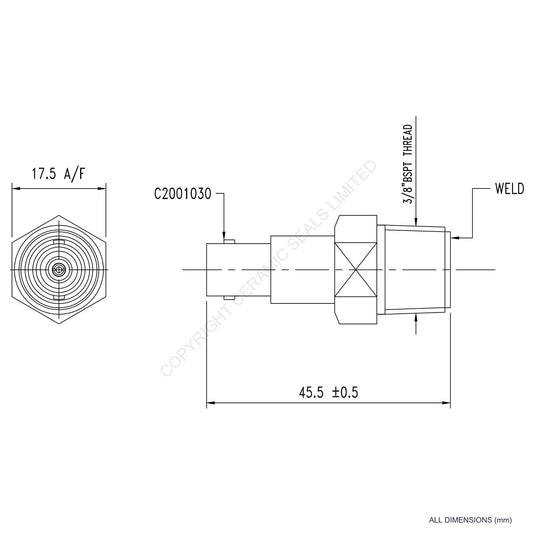

  • 500V BNC Bulkhead Feedthrough

    500V BNC Bulkhead Feedthrough

    500V BNC Bulkhead Feedthrough

    Working Voltage: 500V Current Rating: 3A Termination: Bulkhead
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Bulkhead
    Termination Size 3/8" BSPT
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
  • 500V BNC Bulkhead Feedthrough

    500V BNC Bulkhead Feedthrough

    500V BNC Bulkhead Feedthrough

    Working Voltage: 500V Current Rating: 3A Termination: Bulkhead
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Bulkhead
    Termination Size 3/8" BSPT
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V

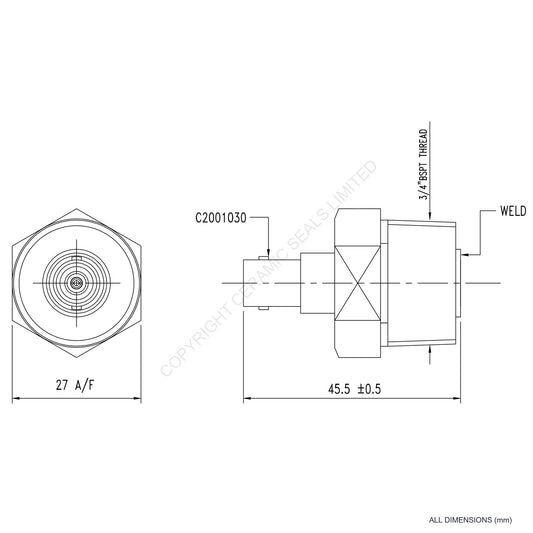

  • 500V BNC Bulkhead Feedthrough

    500V BNC Bulkhead Feedthrough

    500V BNC Bulkhead Feedthrough

    Working Voltage: 500V Current Rating: 3A Termination: Bulkhead
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Bulkhead
    Termination Size 3/4" BSPT
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V

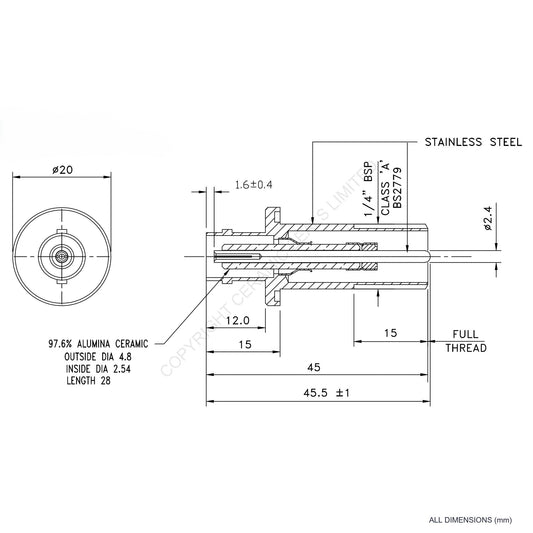

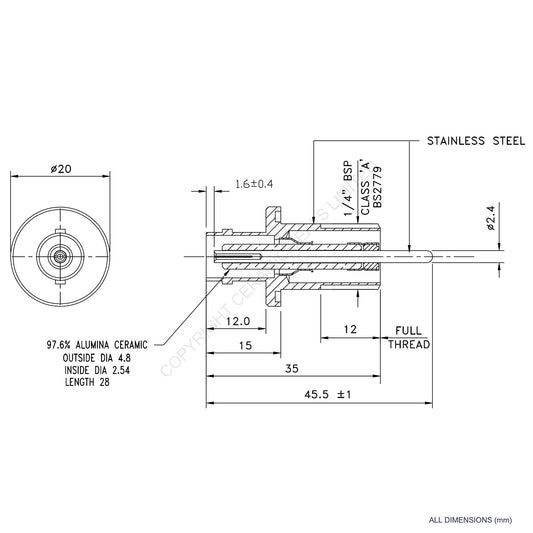

  • 500Vs BNC Single O-Ring Connector

    500Vs BNC Single O-Ring Connector

    500Vs BNC Single O-Ring Connector

    Working Voltage: 500V Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
  • 500Vs BNC Single O-Ring Connector

    500Vs BNC Single O-Ring Connector

    500Vs BNC Single O-Ring Connector

    Working Voltage: 500V Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
  • 500Vs BNC Single O-Ring Connector

    500Vs BNC Single O-Ring Connector

    500Vs BNC Single O-Ring Connector

    Working Voltage: 500V Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V

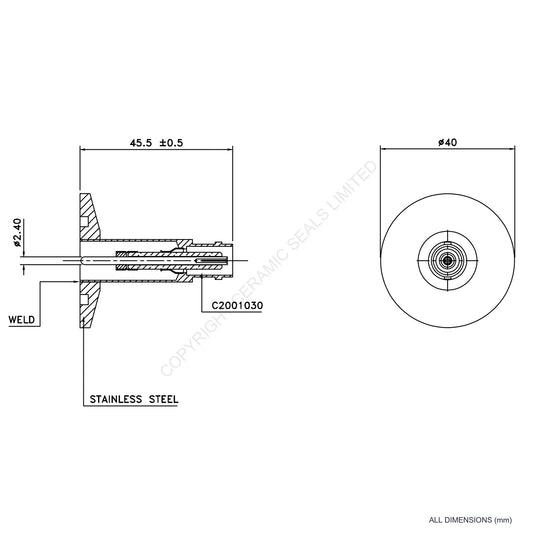

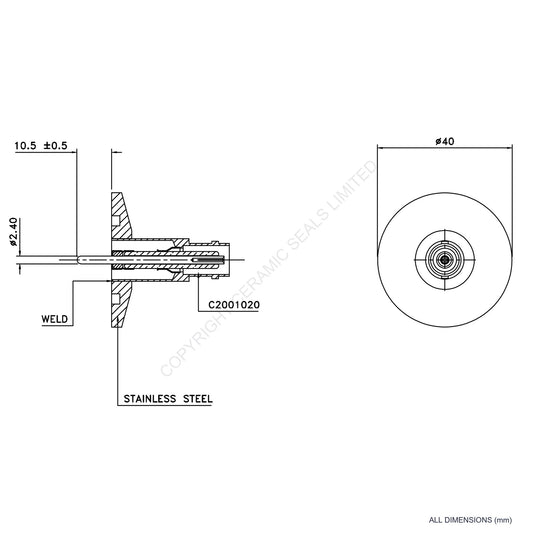

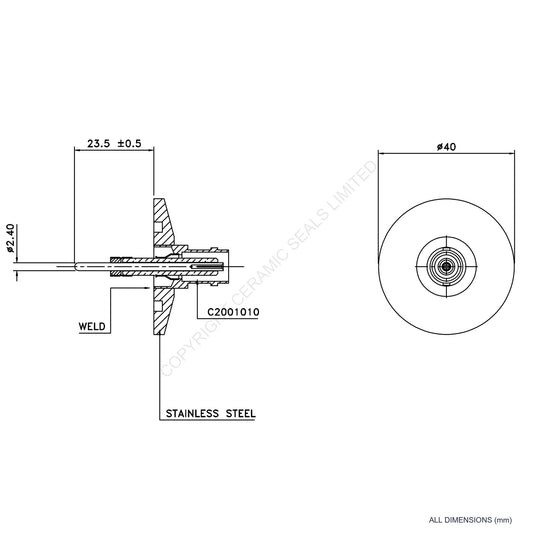

  • 500V BNC Flanged Connector

    500V BNC Flanged Connector

    500V BNC Flanged Connector

    Working Voltage: 500V Current Rating: 3A Termination: Klein Flange
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
  • 500V BNC Flanged Connector

    500V BNC Flanged Connector

    500V BNC Flanged Connector

    Working Voltage: 500V Current Rating: 3A Termination: Klein Flange
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
  • 500V BNC Flanged Connector

    500V BNC Flanged Connector

    500V BNC Flanged Connector

    Working Voltage: 500V Current Rating: 3A Termination: Klein Flange
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V

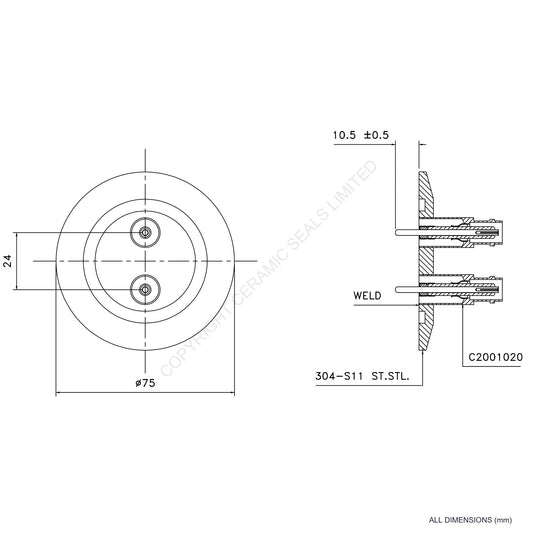

  • 500V BNC 2 Way O-Ring Assembly

    500V BNC 2 Way O-Ring Assembly

    500V BNC 2 Way O-Ring Assembly

    Working Voltage: 500V Current Rating: 3A Termination: Klein Flange
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 2
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 75mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V

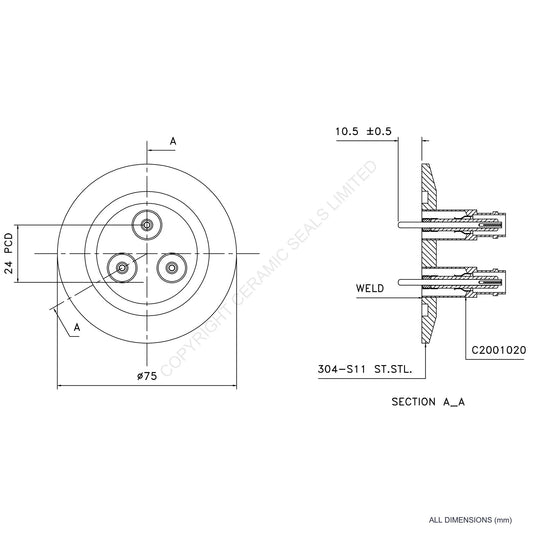

  • 500V BNC 3 Way O-Ring Assembly

    500V BNC 3 Way O-Ring Assembly

    500V BNC 3 Way O-Ring Assembly

    Working Voltage: 500V Current Rating: 3A Termination: Klein Flange
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 3
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 75mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
  • 500V BNC 4 Way O-Ring Assembly

    500V BNC 4 Way O-Ring Assembly

    500V BNC 4 Way O-Ring Assembly

    Working Voltage: 500V Current Rating: 3A Termination: Klein Flange
    Air Side Plug C2009001
    Configuration Single Ended
    Connector Type BNC
    Current Rating 3A
    Feedthrough Quantity 4
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 75mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 500V
