Homepage
Coaxial Connectors
[ { "target": "Uhv", "replacement": "U.H.V." } ]
Collection:
Coaxial Connectors
Product Collection
Single Feedthroughs
Multi-pin
Coaxial Connectors
Thermocouple
Electrical Isolators
Sapphire Viewports

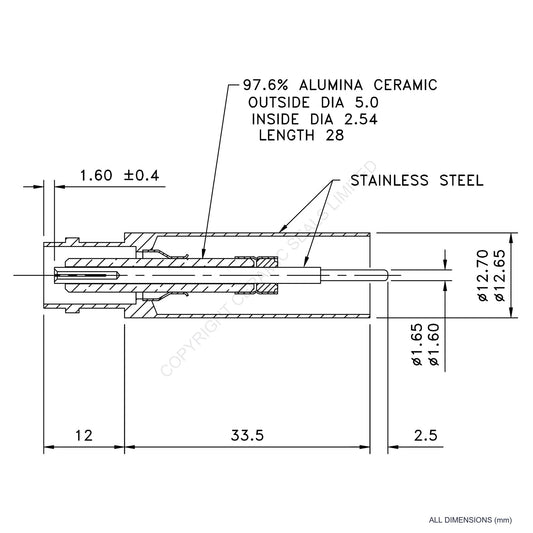

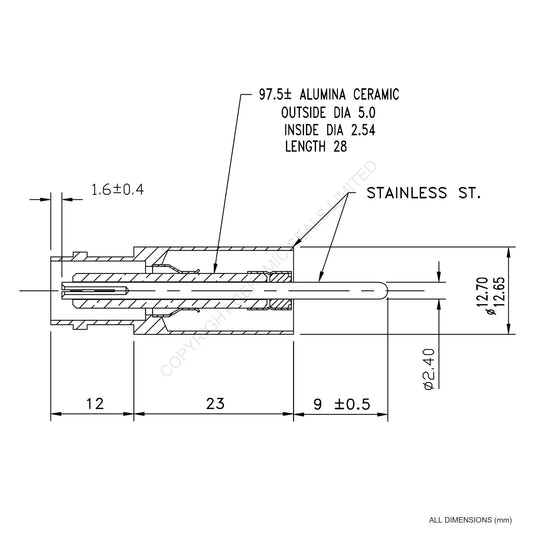

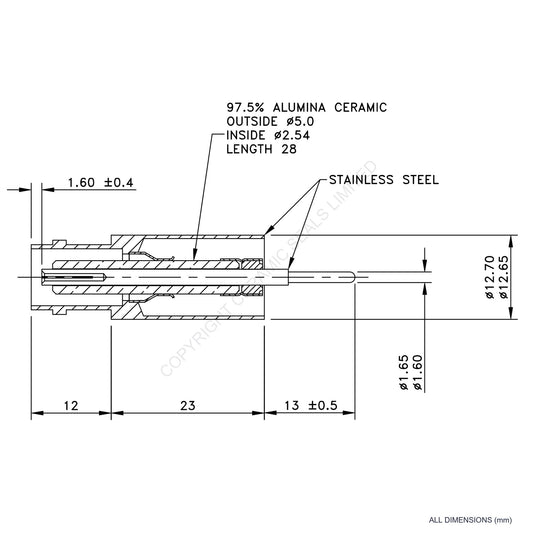

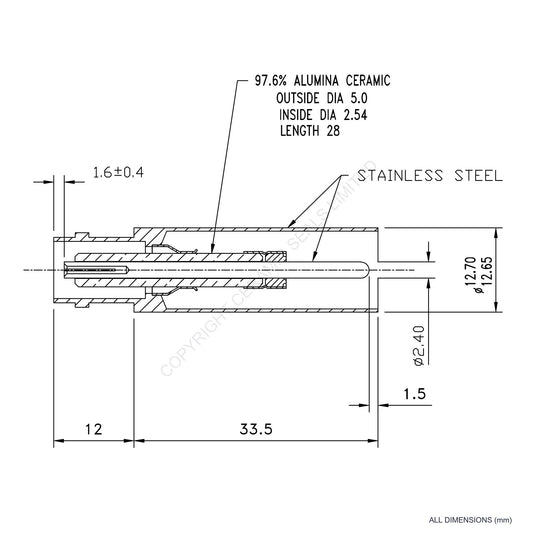

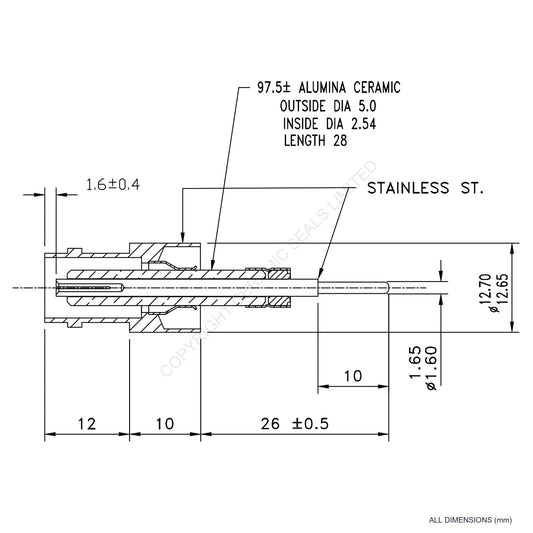

5kV MHV Feedthrough
5kV MHV Feedthrough
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination Size
12.70/12.65mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV
5kV MHV Feedthrough
5kV MHV Feedthrough
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination Size
12.70/12.65mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV
5kV MHV Feedthrough
5kV MHV Feedthrough
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination Size
12.70/12.65mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV
5kV MHV Feedthrough
5kV MHV Feedthrough
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination Size
12.70/12.65mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV
5kV MHV Feedthrough
5kV MHV Feedthrough
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
Tube (Weld)
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Tube (Weld)
Termination Size
12.70/12.65mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV

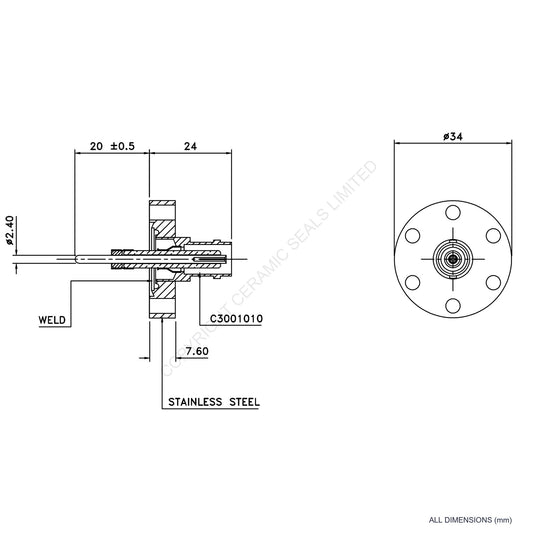

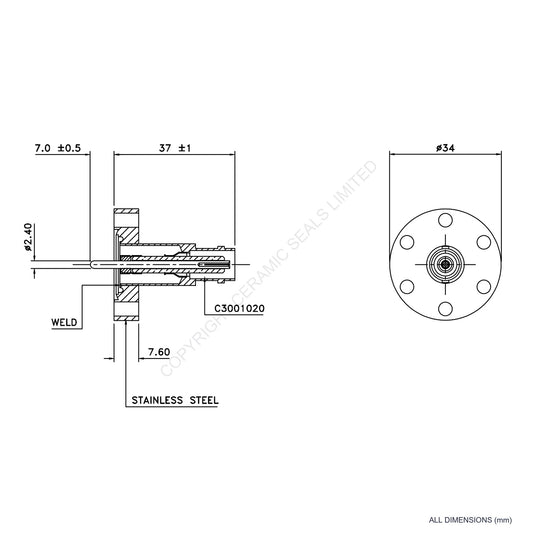

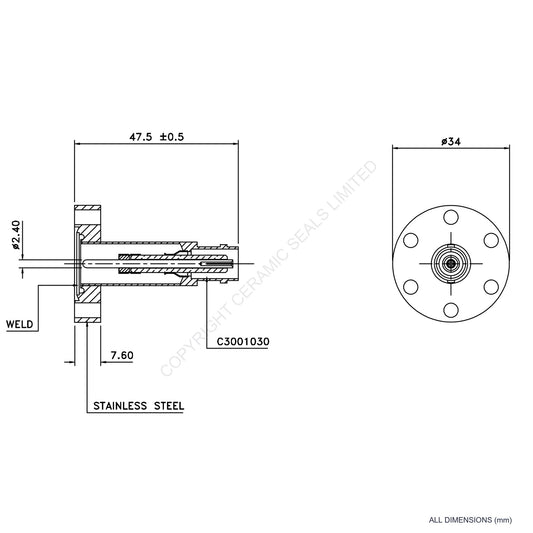

5kV MHV Flanged Connector
5kV MHV Flanged Connector
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
CF Flange
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Flange Material
Stainless Steel (1.4307)
Gasket Nitrile Material
Copper
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
CF Flange
Termination Size
34mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV
5kV MHV Flanged Connector
5kV MHV Flanged Connector
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
CF Flange
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Flange Material
Stainless Steel (1.4307)
Gasket Nitrile Material
Copper
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
CF Flange
Termination Size
34mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV
5kV MHV Flanged Connector
5kV MHV Flanged Connector
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
CF Flange
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Flange Material
Stainless Steel (1.4307)
Gasket Nitrile Material
Copper
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
CF Flange
Termination Size
34mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV

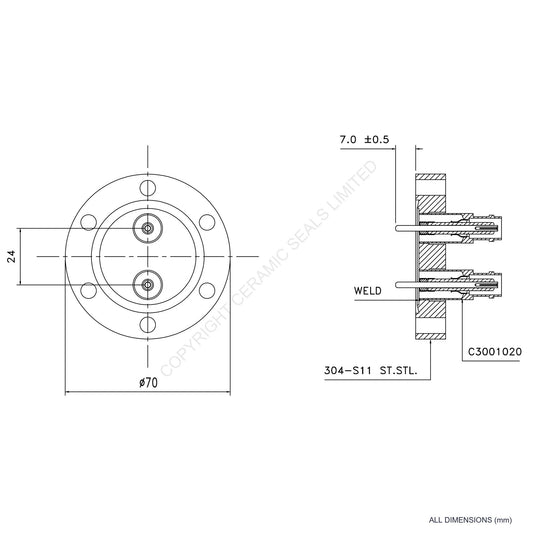

5kV MHV 2 Way Flanged Assembly
5kV MHV 2 Way Flanged Assembly
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
CF Flange
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
2
Flange Material
Stainless Steel (1.4307)
Gasket Nitrile Material
Copper
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV

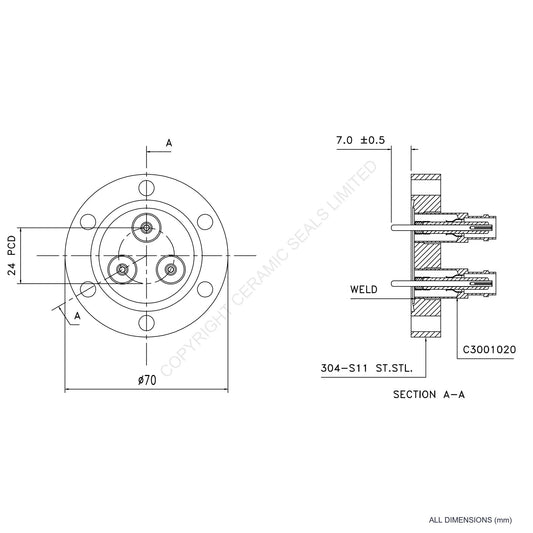

5kV MHV 3 Way Flanged Assembly
5kV MHV 3 Way Flanged Assembly
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
CF Flange
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
3
Flange Material
Stainless Steel (1.4307)
Gasket Nitrile Material
Copper
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV

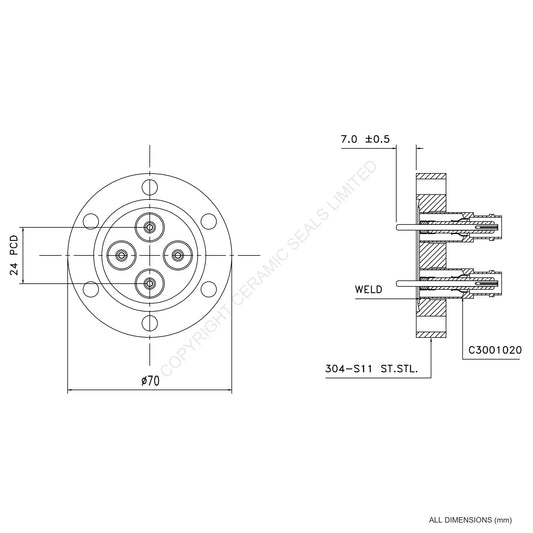

5kV MHV 4 Way Flanged Assembly
5kV MHV 4 Way Flanged Assembly
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
CF Flange
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
4
Flange Material
Stainless Steel (1.4307)
Gasket Nitrile Material
Copper
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
CF Flange
Termination Size
70mm
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-196°C to 450°C
Working Voltage
5.0kV

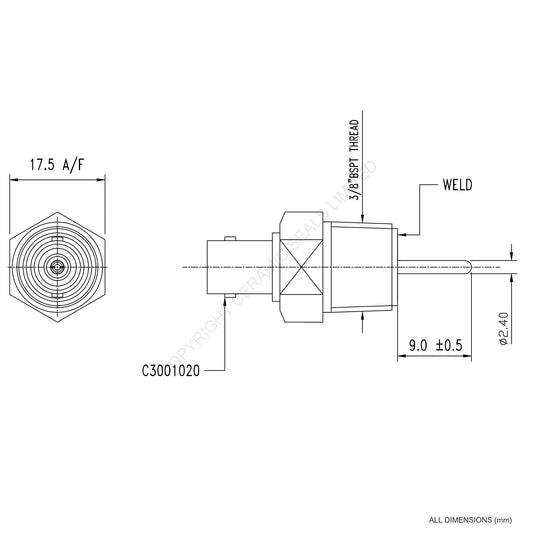

5kV MHV Bulkhead Feedthrough
5kV MHV Bulkhead Feedthrough
Working Voltage:
5.0kV
Current Rating:
3A
Termination:
Bulkhead
Add to Quotation
Add
Sold out
Air Side Plug
C3009001
Configuration
Single Ended
Connector Type
MHV
Current Rating
3A
Feedthrough Quantity
1
Flange Material
Stainless Steel (1.4307)
Insulating Material
Alumina (96-98%)
Magnetic
Yes
Shielding
Grounded
Termination
Bulkhead
Termination Size
3/8" BSPT
U H V Capability
< 1 x 10¯⁹ mbar l s¯¹
Working Temperature
-20°C to 150°C
Working Voltage
5.0kV
