Coaxial Connectors

Product Collection

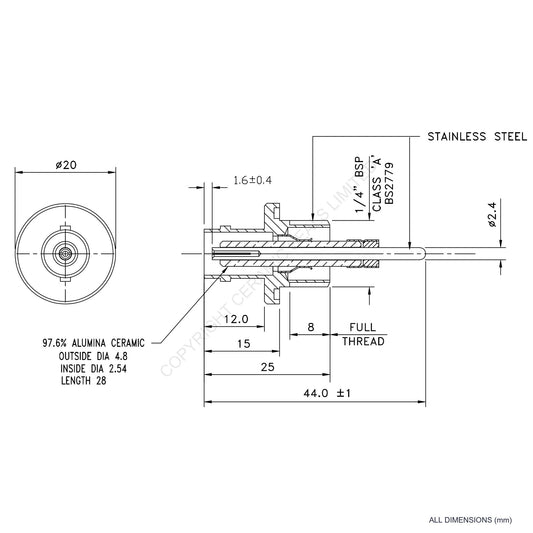

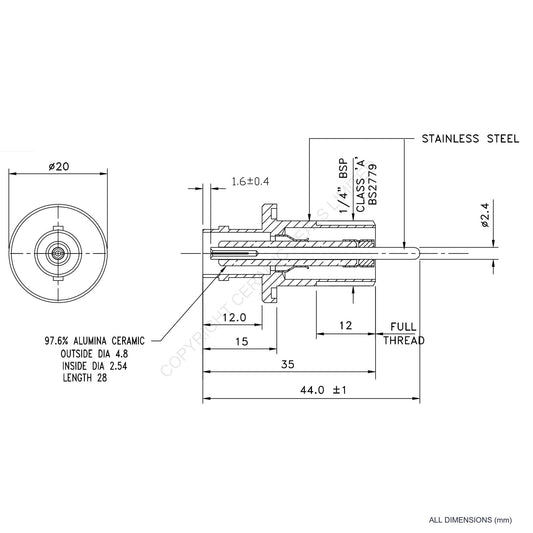

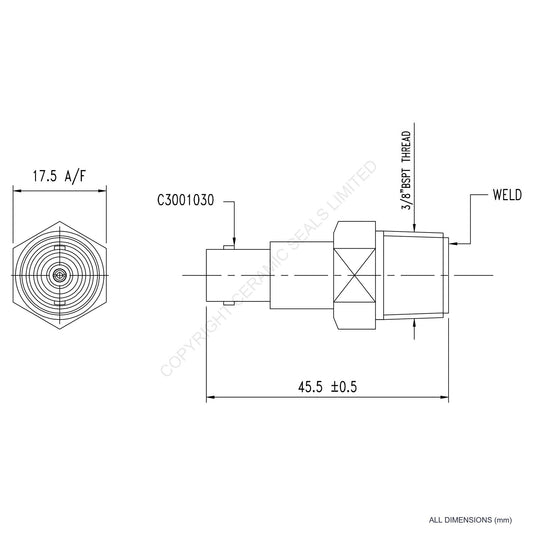

  • 5kV MHV Bulkhead Feedthrough

    5kV MHV Bulkhead Feedthrough

    5kV MHV Bulkhead Feedthrough

    Working Voltage: 5.0kV Current Rating: 3A Termination: Bulkhead
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Bulkhead
    Termination Size 3/8" BSPT
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

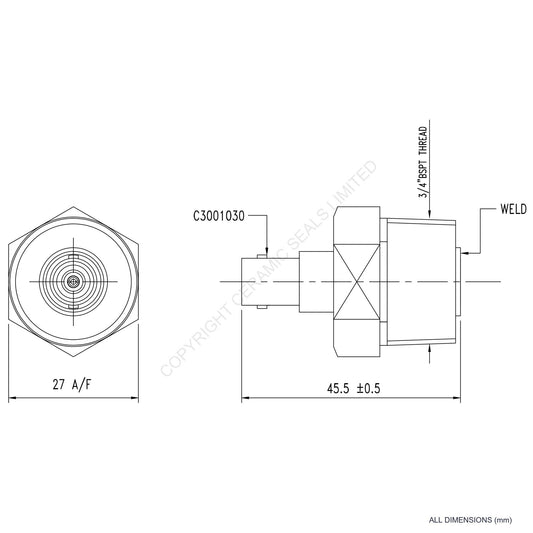

  • 5kV MHV Bulkhead Feedthrough

    5kV MHV Bulkhead Feedthrough

    5kV MHV Bulkhead Feedthrough

    Working Voltage: 5.0kV Current Rating: 3A Termination: Bulkhead
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Bulkhead
    Termination Size 3/4" BSPT
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV
  • 5kV MHV Single O-Ring Connector

    5kV MHV Single O-Ring Connector

    5kV MHV Single O-Ring Connector

    Working Voltage: 5.0kV Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV
  • 5kV MHV Single O-Ring Connector

    5kV MHV Single O-Ring Connector

    5kV MHV Single O-Ring Connector

    Working Voltage: 5.0kV Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV
  • 5kV MHV Single O-Ring Connector

    5kV MHV Single O-Ring Connector

    5kV MHV Single O-Ring Connector

    Working Voltage: 5.0kV Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

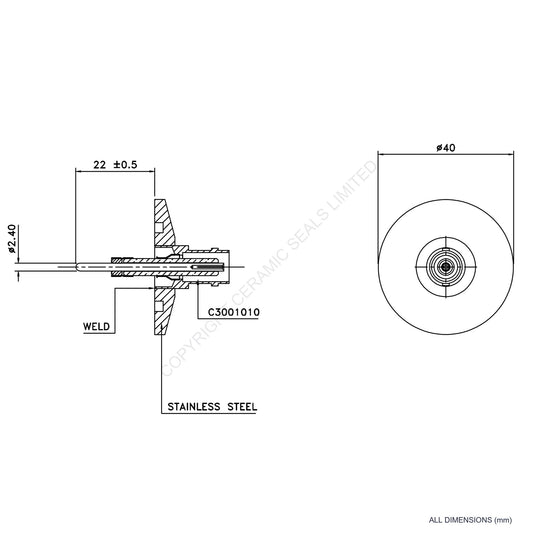

  • 5kV MHV Flanged Connector

    5kV MHV Flanged Connector

    5kV MHV Flanged Connector

    Working Voltage: 5.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV
  • 5kV MHV Flanged Connector

    5kV MHV Flanged Connector

    5kV MHV Flanged Connector

    Working Voltage: 5.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

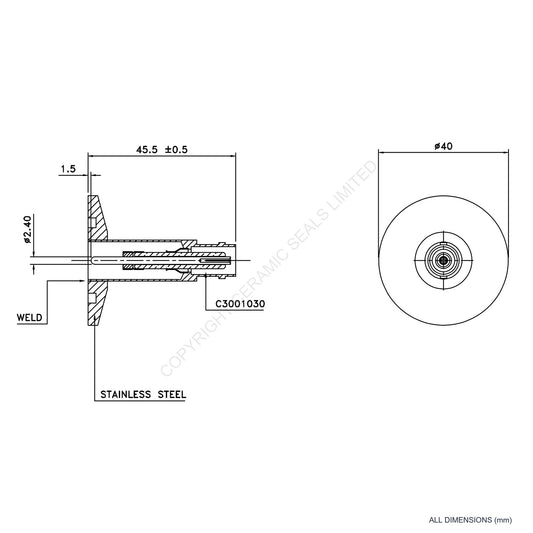

  • 5kV MHV Flanged Connector

    5kV MHV Flanged Connector

    5kV MHV Flanged Connector

    Working Voltage: 5.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

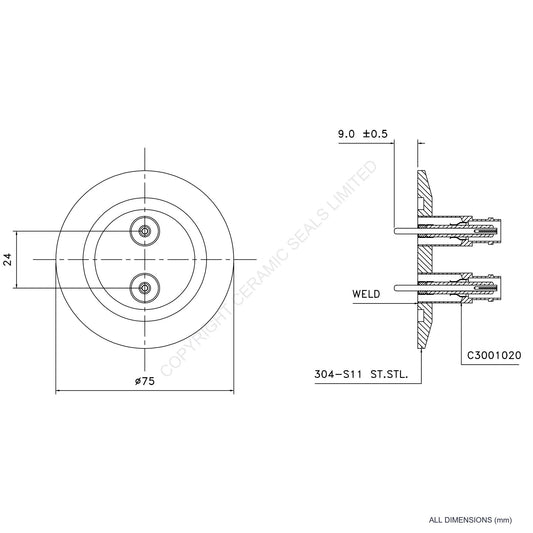

  • 5kV MHV 2 Way O-Ring Assembly

    5kV MHV 2 Way O-Ring Assembly

    5kV MHV 2 Way O-Ring Assembly

    Working Voltage: 5.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 2
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 75mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

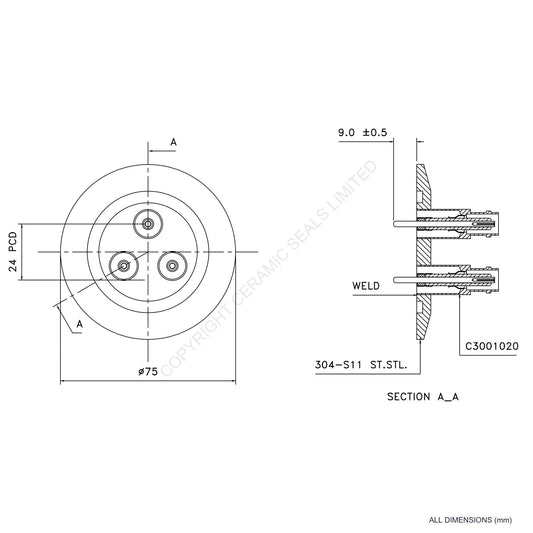

  • 5kV MHV 3 Way O-Ring Assembly

    5kV MHV 3 Way O-Ring Assembly

    5kV MHV 3 Way O-Ring Assembly

    Working Voltage: 5.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 3
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 75mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

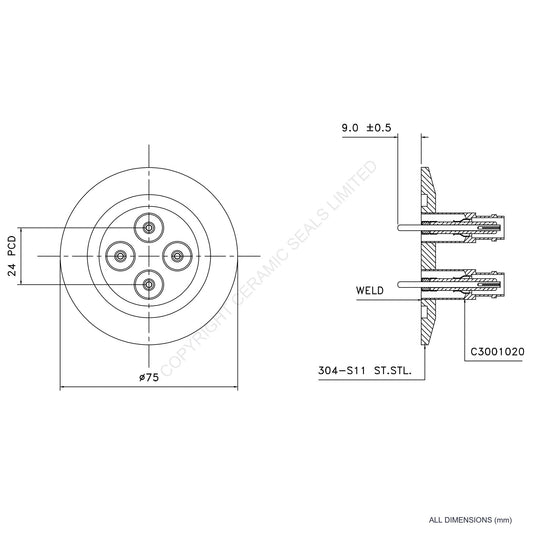

  • 5kV MHV 4 Way O-Ring Assembly

    5kV MHV 4 Way O-Ring Assembly

    5kV MHV 4 Way O-Ring Assembly

    Working Voltage: 5.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C3009001
    Configuration Single Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 4
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 75mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 5.0kV

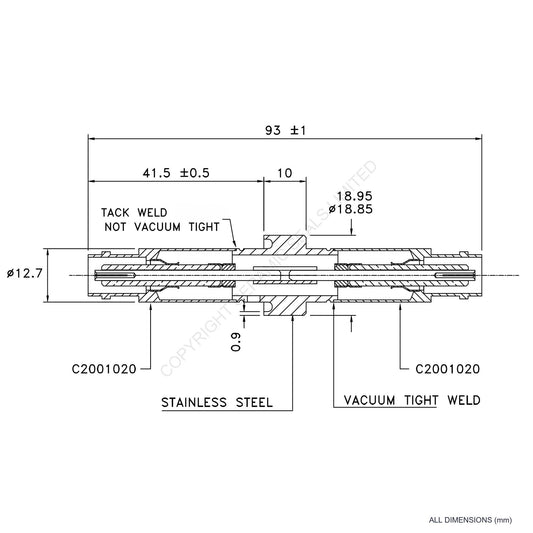

  • 5kV Double Ended MHV

    5kV Double Ended MHV

    5kV Double Ended MHV

    Working Voltage: 5.0kV Current Rating: 3A Termination: Skirt (Weld)
    Air Side Plug C3009001
    Configuration Double Ended
    Connector Type MHV
    Current Rating 3A
    Feedthrough Quantity 1
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Skirt (Weld)
    Termination Size 18.95/18.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector C3009001
    Working Temperature -196°C to 450°C
    Working Voltage 5.0kV
