Electrical Isolators

Product Collection

  • 75kV Flanged Isolator

    75kV Flanged Isolator

    75kV Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 75.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 38mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 75.0kV
  • 100kV Flanged Isolator

    100kV Flanged Isolator

    100kV Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 38mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
  • 10kV Vacuum Break

    10kV Vacuum Break

    10kV Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 66.10/65.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

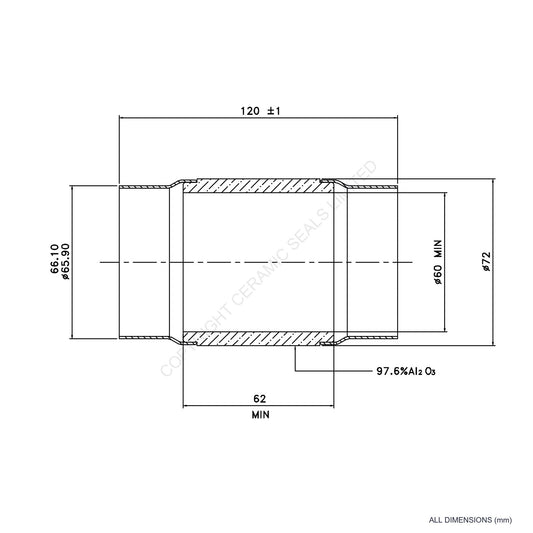

  • 25kV Vacuum Break

    25kV Vacuum Break

    25kV Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 25.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 66.10/65.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 25.0kV

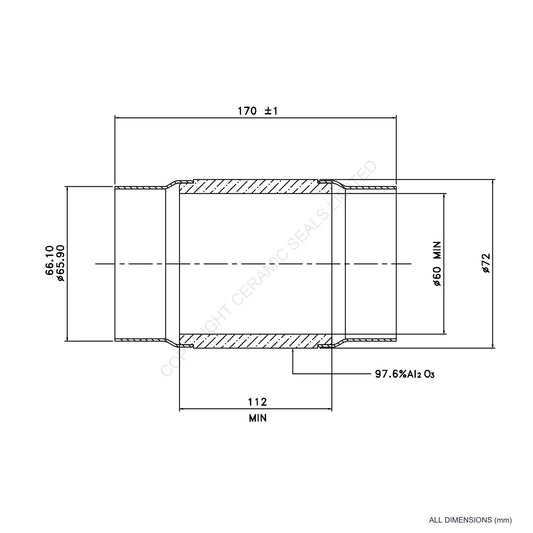

  • 50kV Vacuum Break

    50kV Vacuum Break

    50kV Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 50.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 66.10/65.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 50.0kV
  • 75kV Vacuum Break

    75kV Vacuum Break

    75kV Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 75.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 66.10/65.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 75.0kV

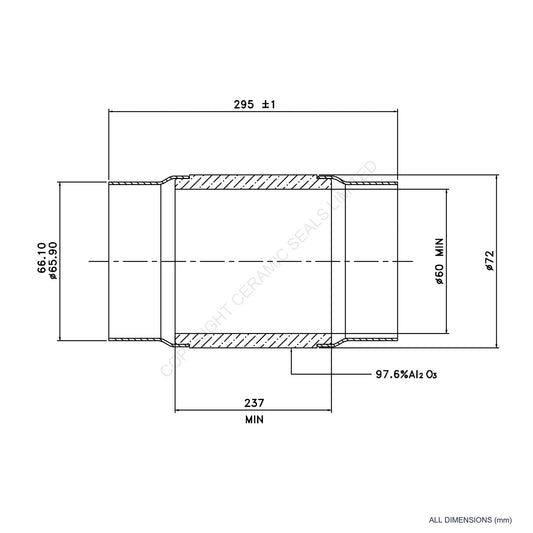

  • 100kV Vacuum Break

    100kV Vacuum Break

    100kV Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 66.10/65.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
  • 10kV Flanged Vacuum Break

    10kV Flanged Vacuum Break

    10kV Flanged Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 60mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

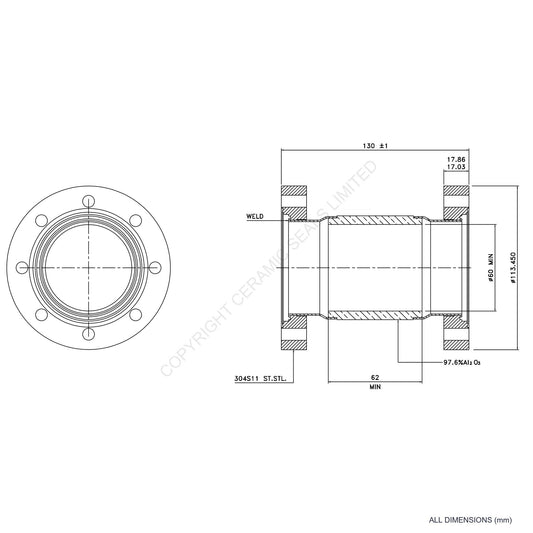

  • 25kV Flanged Vacuum Break

    25kV Flanged Vacuum Break

    25kV Flanged Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 25.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 60mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 25.0kV
  • 50kV Flanged Vacuum Break

    50kV Flanged Vacuum Break

    50kV Flanged Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 50.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 60mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 50.0kV
  • 75kV Flanged Vacuum Break

    75kV Flanged Vacuum Break

    75kV Flanged Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 75.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 60mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 75.0kV

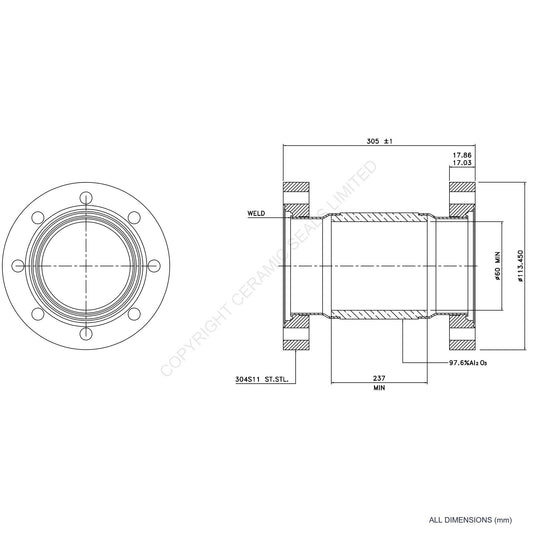

  • 100kV Flanged Vacuum Break

    100kV Flanged Vacuum Break

    100kV Flanged Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 60mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
