Electrical Isolators

Product Collection

  • 50kV 100mm Through Isolator

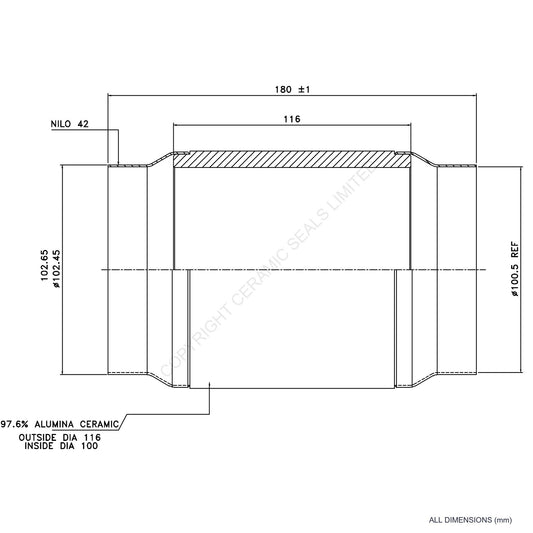

    50kV 100mm Through Isolator

    50kV 100mm Through Isolator

    Isolator Type: Vacuum Break Working Voltage: 50.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 102.65/102.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 50.0kV
  • 75kV 100mm Through Isolator

    75kV 100mm Through Isolator

    75kV 100mm Through Isolator

    Isolator Type: Vacuum Break Working Voltage: 75.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 102.65/102.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 75.0kV

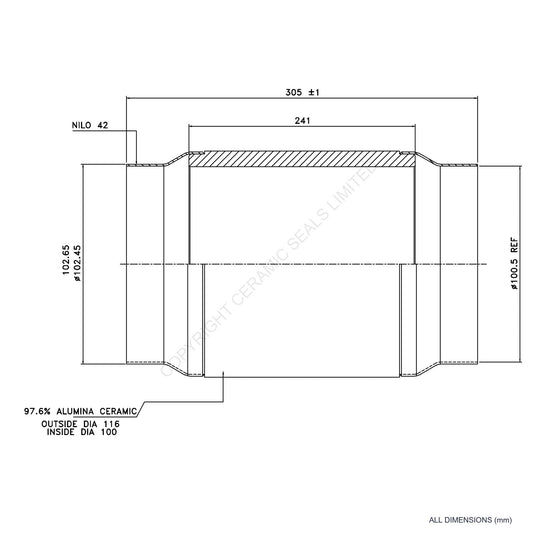

  • 100kV 100mm Through Isolator

    100kV 100mm Through Isolator

    100kV 100mm Through Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 102.65/102.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
  • 10kV 100mm Through Flanged Isolator

    10kV 100mm Through Flanged Isolator

    10kV 100mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 100mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

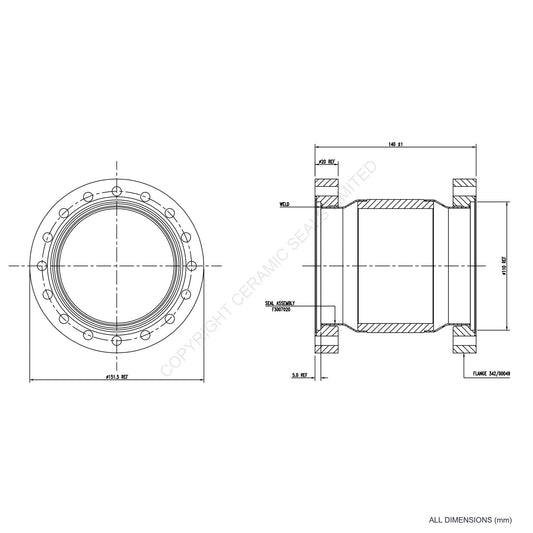

  • 25kV 100mm Through Flanged Isolator

    25kV 100mm Through Flanged Isolator

    25kV 100mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 25.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 100mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 25.0kV

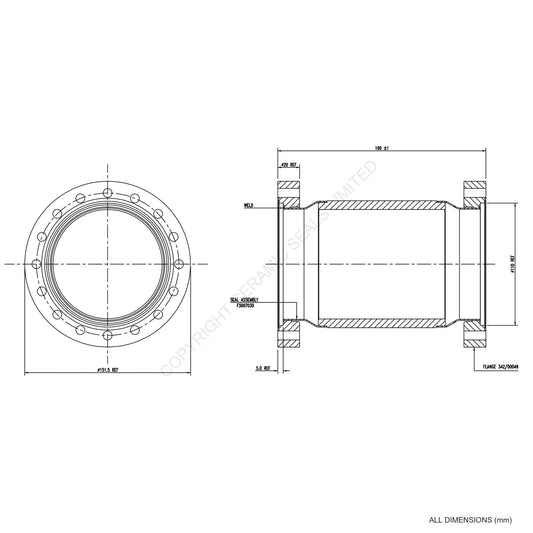

  • 50kV 100mm Through Flanged Isolator

    50kV 100mm Through Flanged Isolator

    50kV 100mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 50.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 100mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 50.0kV

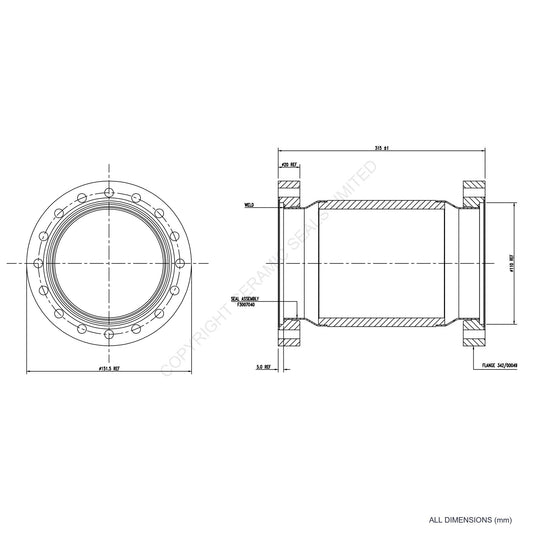

  • 75kV 100mm Through Flanged Isolator

    75kV 100mm Through Flanged Isolator

    75kV 100mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 75.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 100mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 75.0kV
  • 100kV 100mm Through Flanged Isolator

    100kV 100mm Through Flanged Isolator

    100kV 100mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 100mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

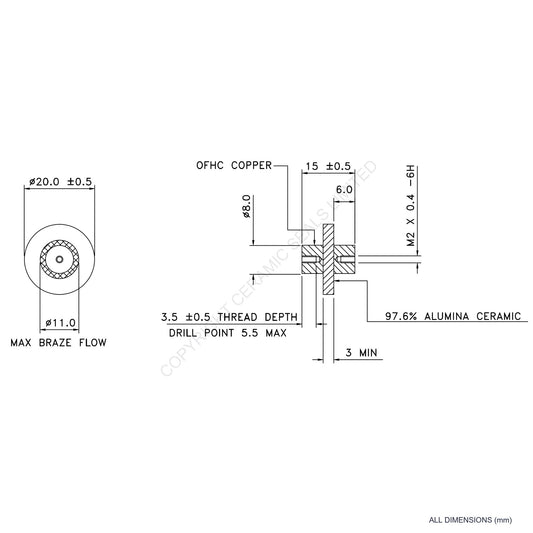

  • Heat Sink Isolator (M2)

    Heat Sink Isolator (M2)

    Heat Sink Isolator (M2)

    Isolator Type: Heat Sink Isolator Working Voltage: - Termination: Thread Female
    Insulating Material Alumina (96-98%)
    Isolator Type Heat Sink Isolator
    Magnetic Yes
    Termination Thread Female
    Termination Size M2
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

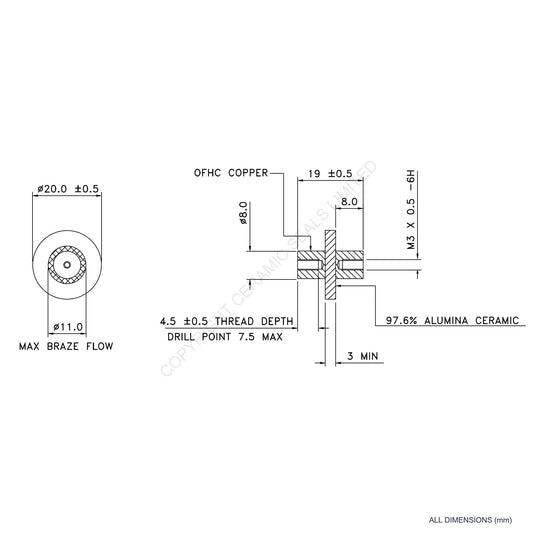

  • Heat Sink Isolator (M3)

    Heat Sink Isolator (M3)

    Heat Sink Isolator (M3)

    Isolator Type: Heat Sink Isolator Working Voltage: - Termination: Thread Female
    Insulating Material Alumina (96-98%)
    Isolator Type Heat Sink Isolator
    Magnetic Yes
    Termination Thread Female
    Termination Size M3
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

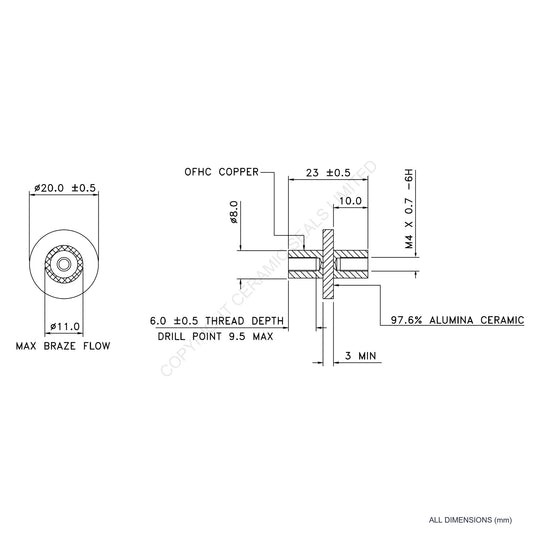

  • Heat Sink Isolator (M4)

    Heat Sink Isolator (M4)

    Heat Sink Isolator (M4)

    Isolator Type: Heat Sink Isolator Working Voltage: - Termination: Thread Female
    Insulating Material Alumina (96-98%)
    Isolator Type Heat Sink Isolator
    Magnetic Yes
    Termination Thread Female
    Termination Size M4
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

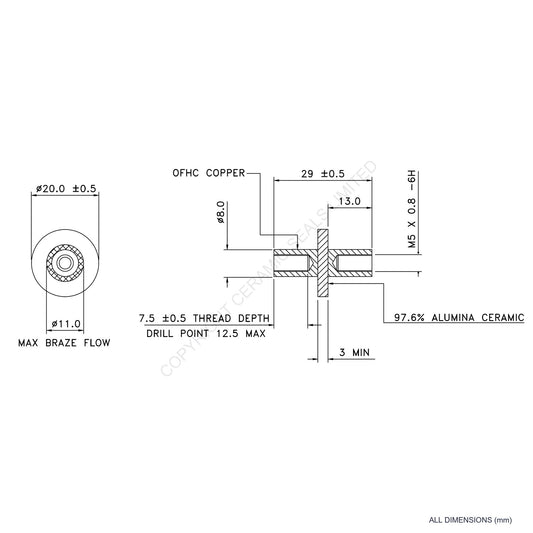

  • Heat Sink Isolator (M5)

    Heat Sink Isolator (M5)

    Heat Sink Isolator (M5)

    Isolator Type: Heat Sink Isolator Working Voltage: - Termination: Thread Female
    Insulating Material Alumina (96-98%)
    Isolator Type Heat Sink Isolator
    Magnetic Yes
    Termination Thread Female
    Termination Size M5
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
