Thermocouple

Product Collection

  • 4 Pair Thermocouple Flanged

    4 Pair Thermocouple Flanged

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Copper / Constantan
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009001
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Spade
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

  • 4 Pair Thermocouple Flanged

    4 Pair Thermocouple Flanged

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Iron / Constantan
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009002
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Spade
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

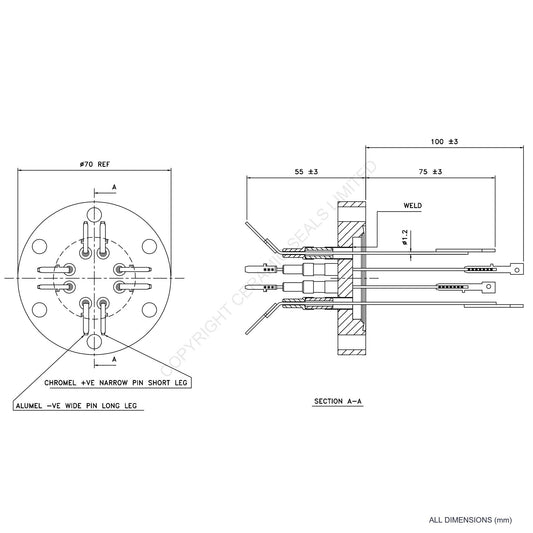

  • 4 Pair Thermocouple Flanged Type K

    4 Pair Thermocouple Flanged Type K

    4 Pair Thermocouple Flanged Type K

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Chromel / Alumel
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009003
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 0°C to 1100°C
    Thermocouple Termination Spade
    Thermocouple Type Type K
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • 4 Pair Thermocouple Flanged Type R incl. Compensating Material

    4 Pair Thermocouple Flanged Type R incl. Compensating Material

    4 Pair Thermocouple Flanged Type R incl. Compensating Material

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Platinum - 13% Rhodium / Platinum
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009004
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 0°C to 1600°C
    Thermocouple Termination Spade
    Thermocouple Type Type R
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

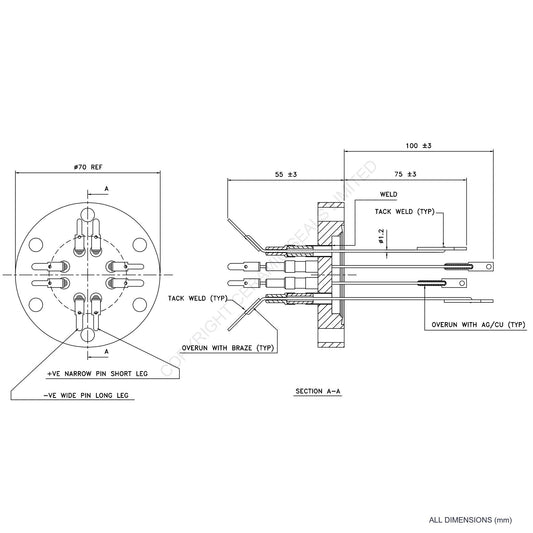

  • 4 Pair Thermocouple Flanged Type S incl. Compensating Cables

    4 Pair Thermocouple Flanged Type S incl. Compensating Cables

    4 Pair Thermocouple Flanged Type S incl. Compensating Cables

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Platinum - 10% Rhodium / Platinum
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009005
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 0°C to 1500°C
    Thermocouple Termination Spade
    Thermocouple Type Type S
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

  • 5 Pair Thermocouple Flanged

    5 Pair Thermocouple Flanged

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Copper / Constantan
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009001
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Spade
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

  • 5 Pair Thermocouple Flanged

    5 Pair Thermocouple Flanged

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Iron / Constantan
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009002
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Spade
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

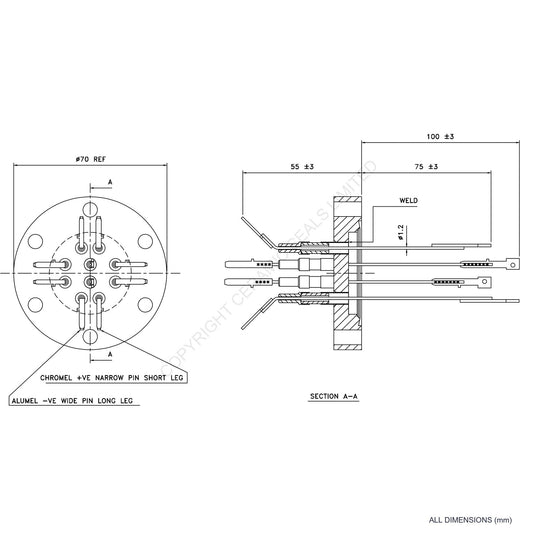

  • 5 Pair Thermocouple Flanged Type K

    5 Pair Thermocouple Flanged Type K

    5 Pair Thermocouple Flanged Type K

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Chromel / Alumel
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009003
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 0°C to 1100°C
    Thermocouple Termination Spade
    Thermocouple Type Type K
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

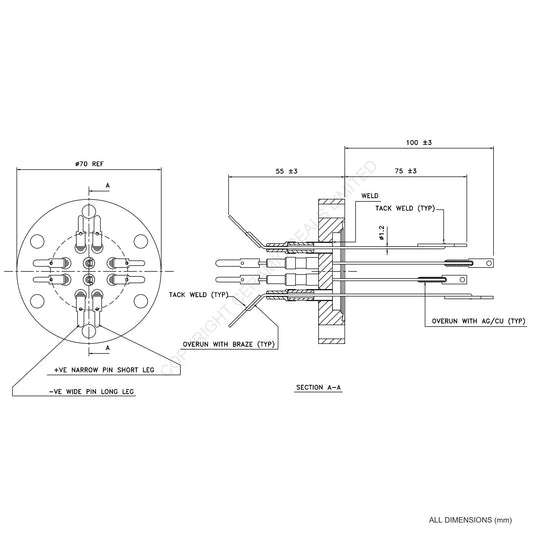

  • 5 Pair Thermocouple Flanged Type R incl. Compensating Material

    5 Pair Thermocouple Flanged Type R incl. Compensating Material

    5 Pair Thermocouple Flanged Type R incl. Compensating Material

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Platinum - 13% Rhodium / Platinum
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009004
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 0°C to 1600°C
    Thermocouple Termination Spade
    Thermocouple Type Type R
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

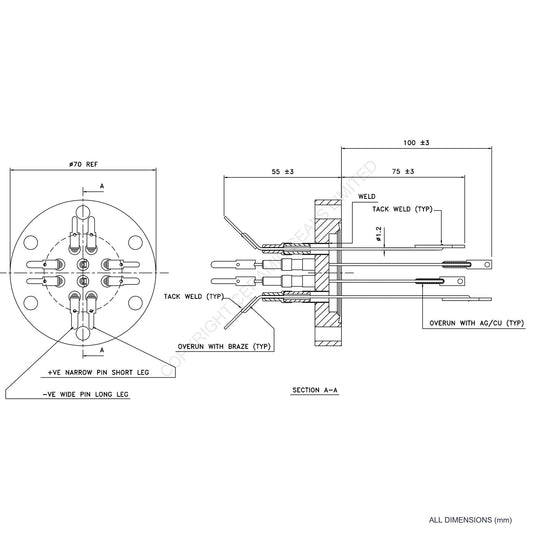

  • 5 Pair Thermocouple Flanged Type S incl. Compensating Cables

    5 Pair Thermocouple Flanged Type S incl. Compensating Cables

    5 Pair Thermocouple Flanged Type S incl. Compensating Cables

    Working Voltage: - Current Rating: - Termination: CF Flange
    Conductor Material Platinum - 10% Rhodium / Platinum
    Feedthrough Style Pair
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009005
    Termination CF Flange
    Termination Size 70mm
    Thermocouple Range 0°C to 1500°C
    Thermocouple Termination Spade
    Thermocouple Type Type S
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Power And Thermocouple Type T

    Power And Thermocouple Type T

    Power And Thermocouple Type T

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Copper / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination CF Flange
    Termination Size 34mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Plain
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
  • Power And Thermocouple Type J

    Power And Thermocouple Type J

    Power And Thermocouple Type J

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Iron / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination CF Flange
    Termination Size 34mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Plain
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
