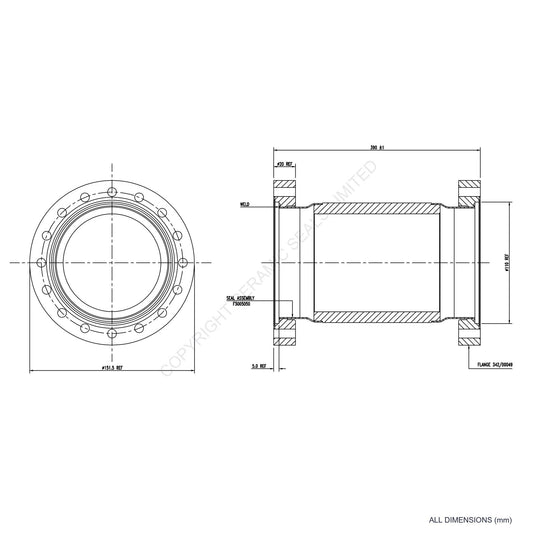

  • 100kV 100mm Through Flanged Isolator

    100kV 100mm Through Flanged Isolator

    100kV 100mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 100mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

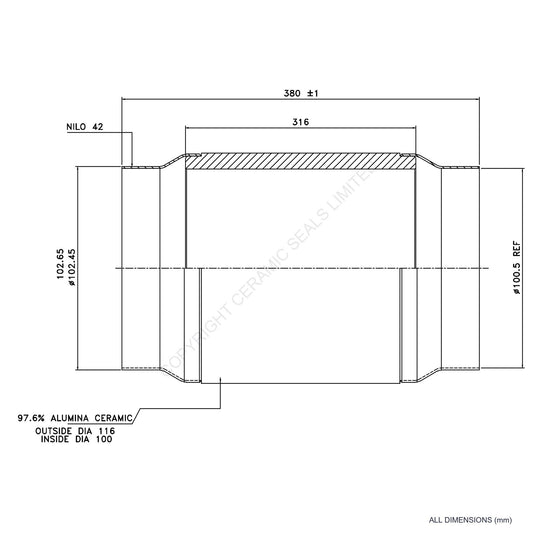

  • 100kV 100mm Through Isolator

    100kV 100mm Through Isolator

    100kV 100mm Through Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 102.65/102.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

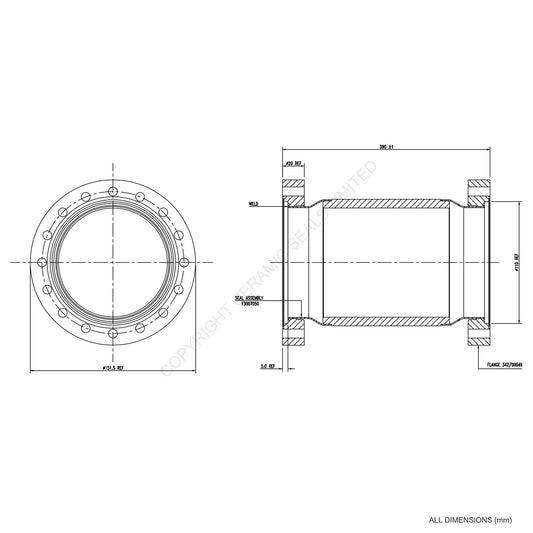

  • 100kV 90mm Through Flanged Isolator

    100kV 90mm Through Flanged Isolator

    100kV 90mm Through Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

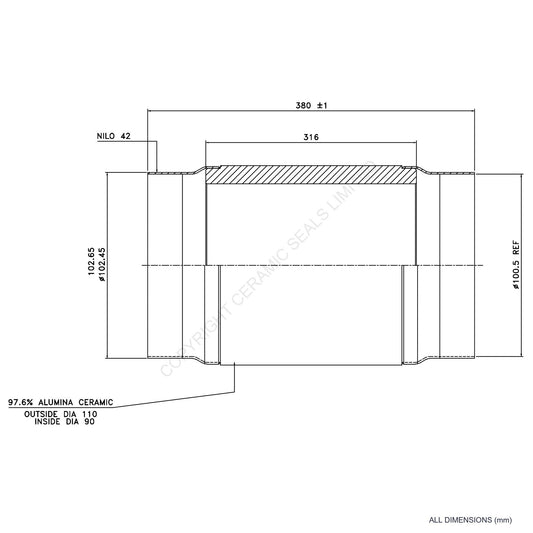

  • 100kV 90mm Through Isolator

    100kV 90mm Through Isolator

    100kV 90mm Through Isolator

    Isolator Type: Vacuum Break Working Voltage: 100.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 102.65/102.45mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

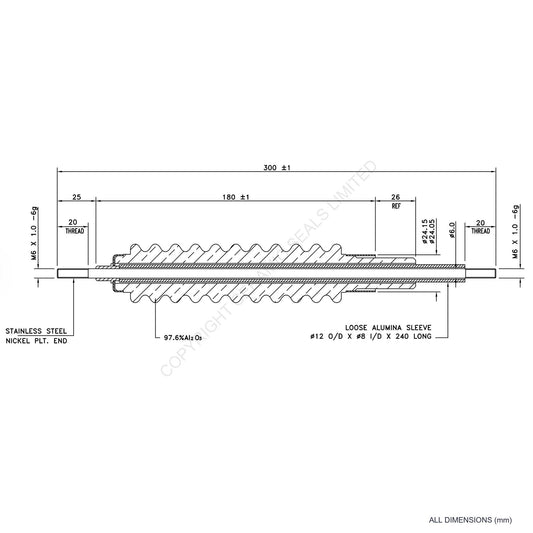

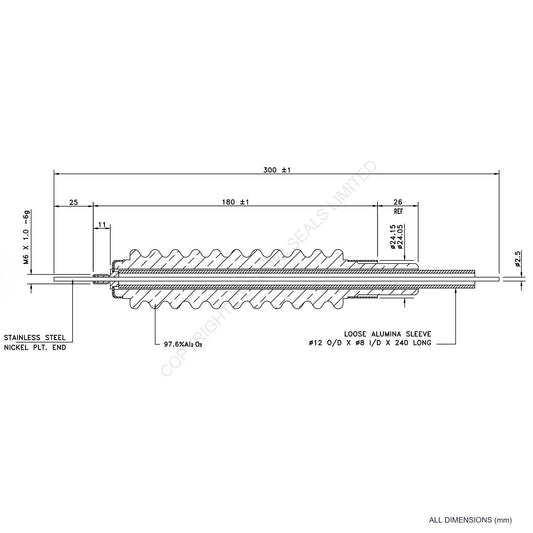

  • 100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    Working Voltage: 100.0kV Current Rating: 7A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 7A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

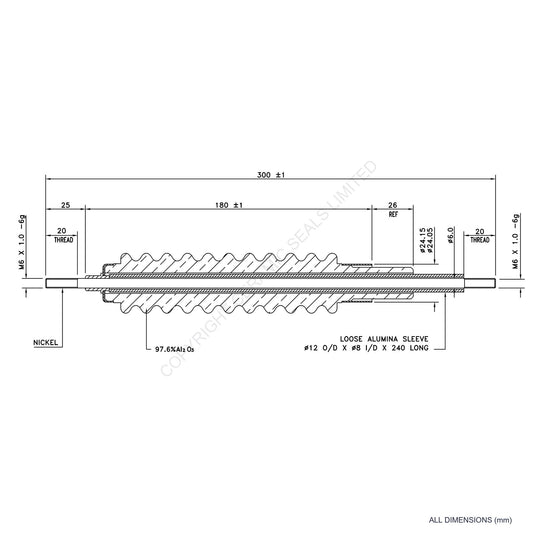

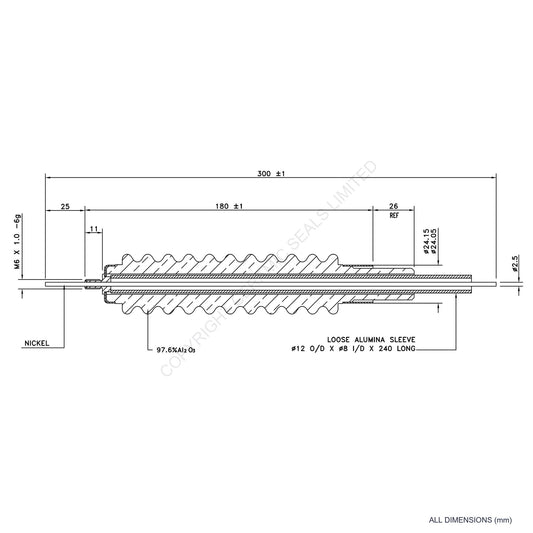

  • 100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    Working Voltage: 100.0kV Current Rating: 20A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
  • 100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    Working Voltage: 100.0kV Current Rating: 40A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
  • 100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    Working Voltage: 100.0kV Current Rating: 25A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 25A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
  • 100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    Working Voltage: 100.0kV Current Rating: 70A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

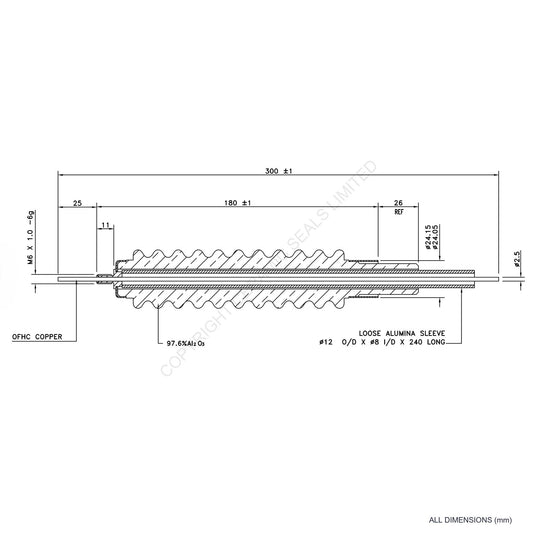

  • 100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    100kV Feedthrough Assembly

    Working Voltage: 100.0kV Current Rating: 150A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 150A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

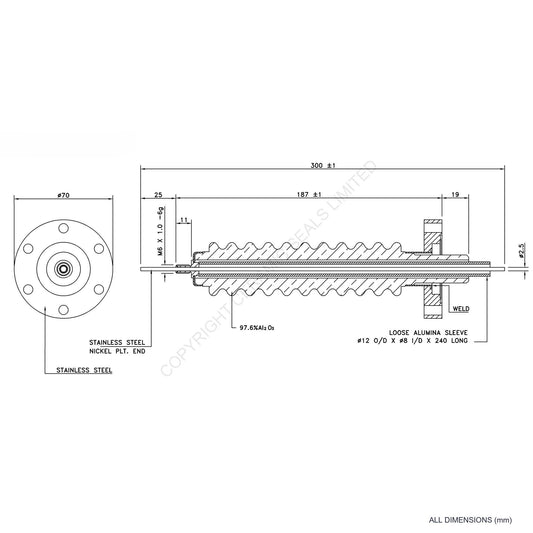

  • 100kV Feedthrough Assembly Flanged

    100kV Feedthrough Assembly Flanged

    100kV Feedthrough Assembly Flanged

    Working Voltage: 100.0kV Current Rating: 7A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 7A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV

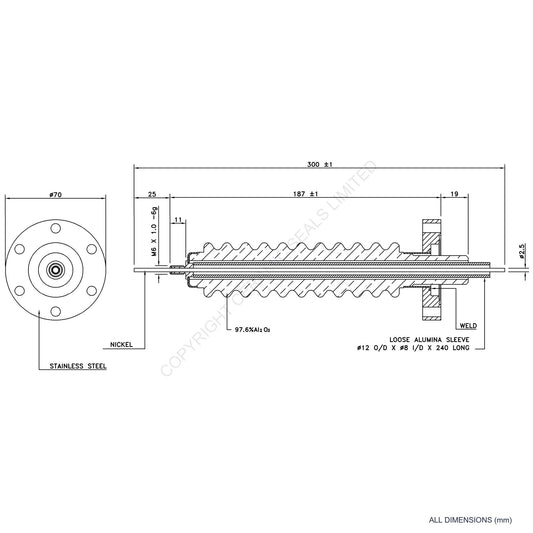

  • 100kV Feedthrough Assembly Flanged

    100kV Feedthrough Assembly Flanged

    100kV Feedthrough Assembly Flanged

    Working Voltage: 100.0kV Current Rating: 20A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 20A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 100.0kV
