Products

Product Collection

  • 10kV Ceramic Insulator

    10kV Ceramic Insulator

    10kV Ceramic Insulator

    Isolator Type: Cryogenic Liquid/Gas Working Voltage: 10.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Cryogenic Liquid/Gas
    Magnetic Yes
    Termination Tube
    Termination Size 6.0mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Ceramic Insulator

    10kV Ceramic Insulator

    10kV Ceramic Insulator

    Isolator Type: Cryogenic Liquid/Gas Working Voltage: 10.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Cryogenic Liquid/Gas
    Magnetic Yes
    Termination Tube
    Termination Size 12.0mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    Working Voltage: 10.0kV Current Rating: 80A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 80A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 35.00/34.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

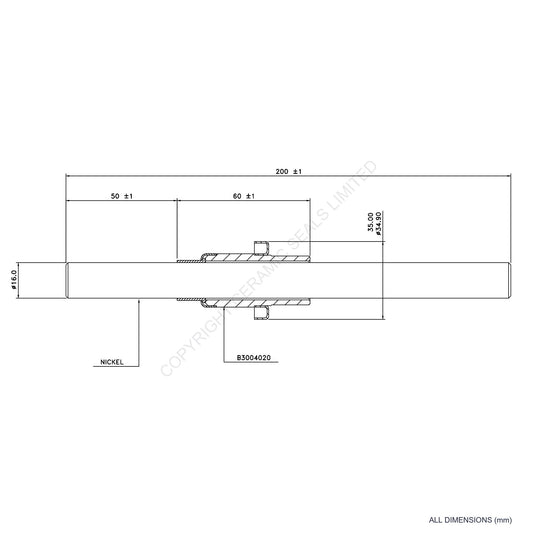

  • 10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    Working Voltage: 10.0kV Current Rating: 240A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 240A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 35.00/34.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

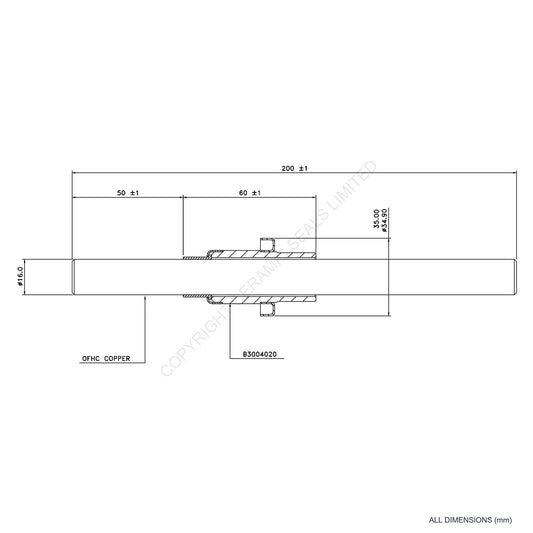

  • 10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    Working Voltage: 10.0kV Current Rating: 500A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 500A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 35.00/34.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

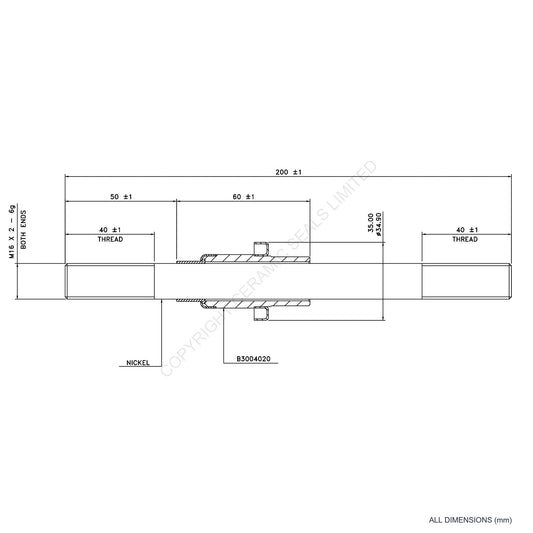

  • 10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    10kV Ceramic Metal Seal

    Working Voltage: 10.0kV Current Rating: 240A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 240A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 35.00/34.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

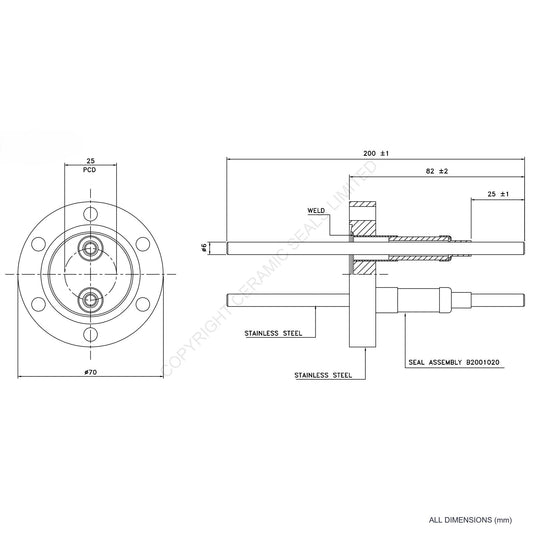

  • 10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 25A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 25A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 70A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

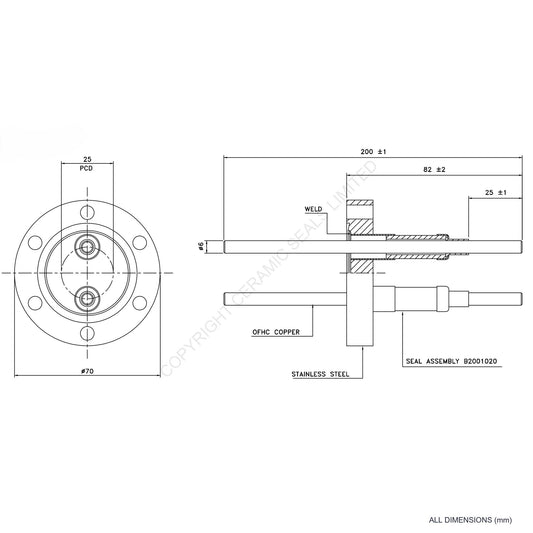

  • 10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    10kV Double Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 150A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 150A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

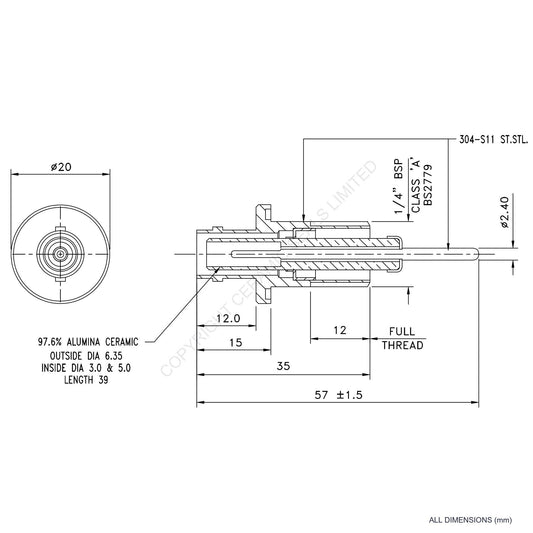

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 10.0kV

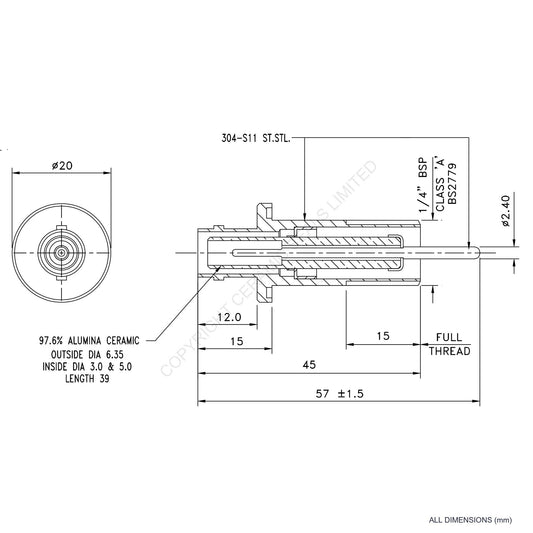

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 10.0kV
