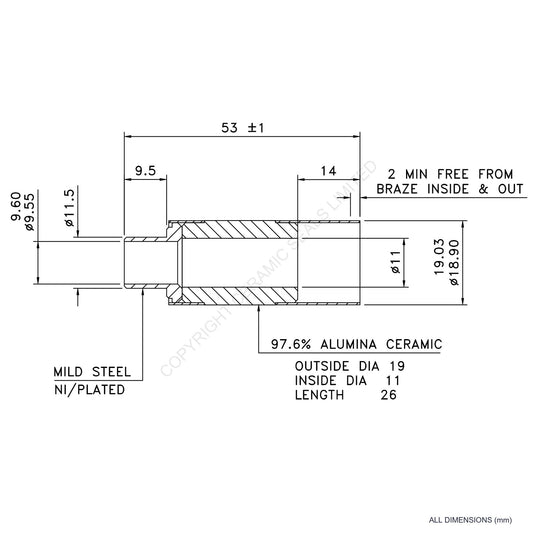

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: - Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

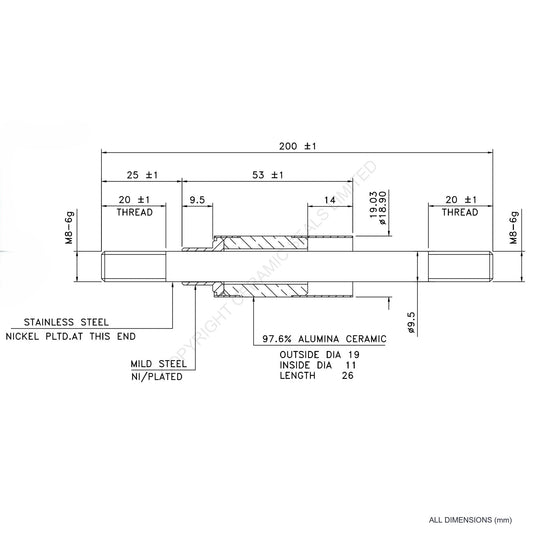

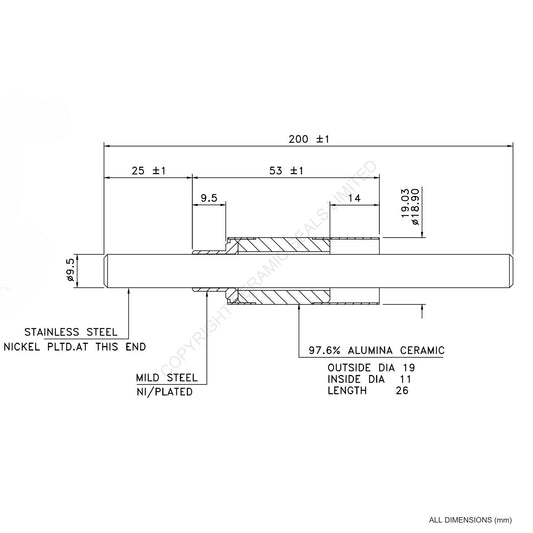

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 40A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

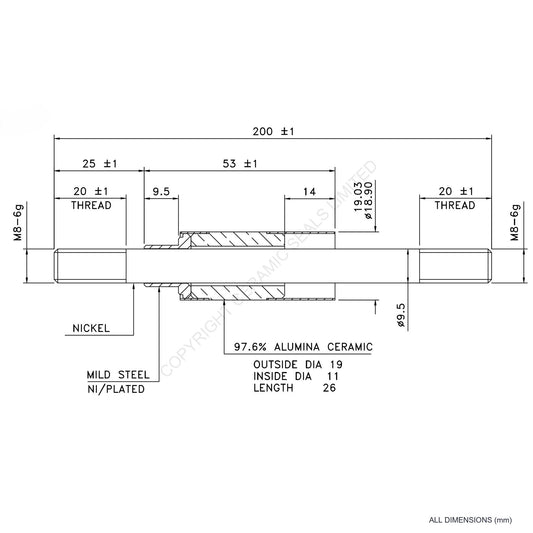

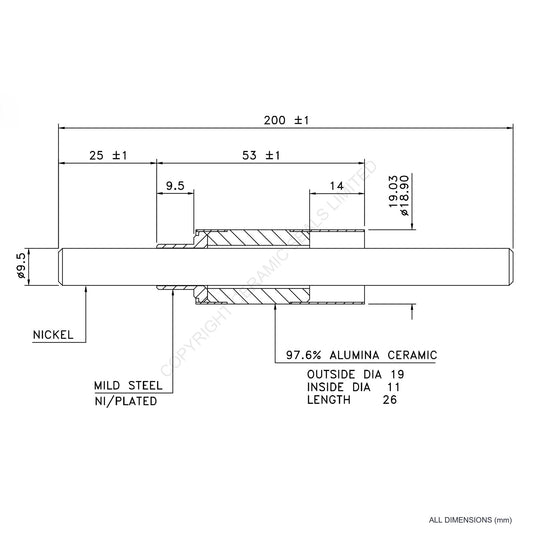

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 120A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 120A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

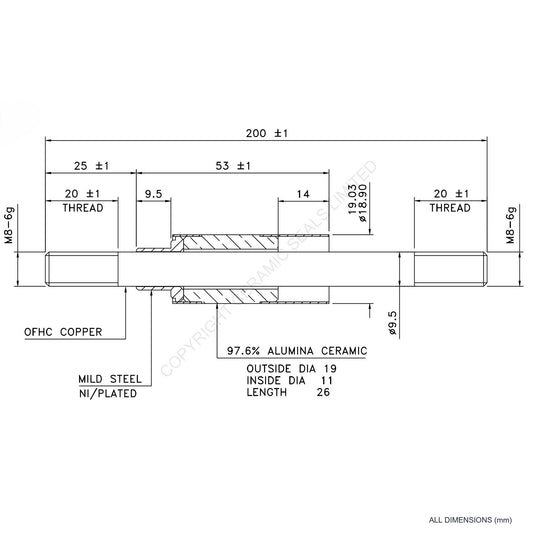

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 250A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 250A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 40A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 120A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 120A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

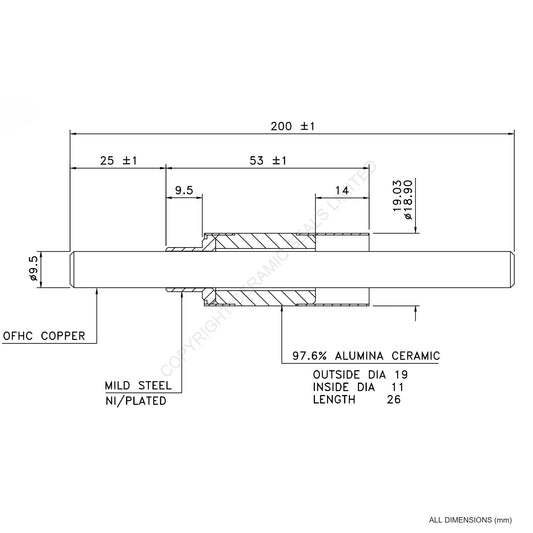

  • 10kV Feedthrough

    10kV Feedthrough

    10kV Feedthrough

    Working Voltage: 10.0kV Current Rating: 250A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 250A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

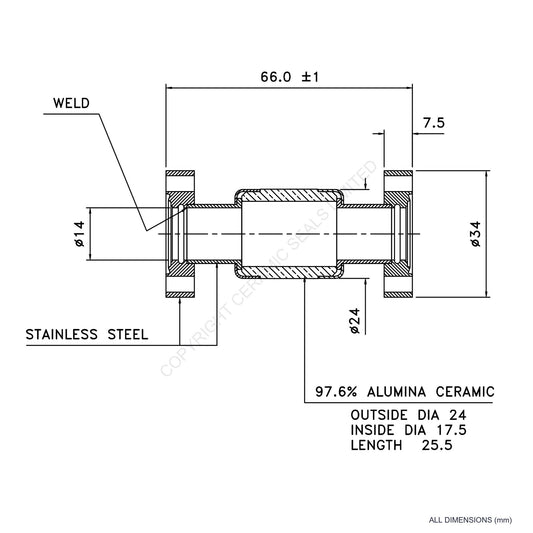

  • 10kV Flanged Isolator

    10kV Flanged Isolator

    10kV Flanged Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination CF Flange
    Termination Size 14mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

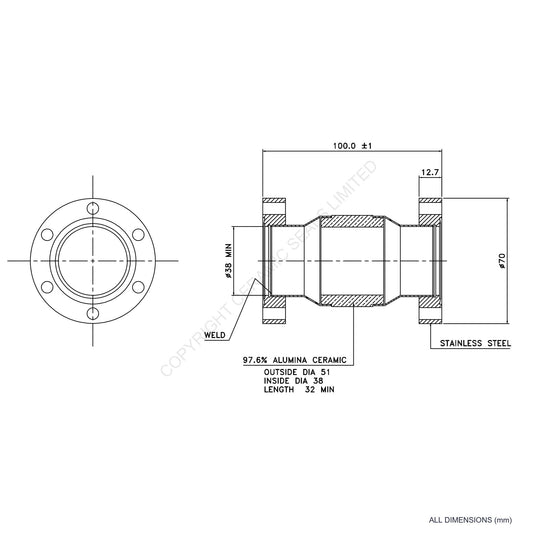

  • 10kV Flanged Isolator

    10kV Flanged Isolator

    10kV Flanged Isolator

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 38mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

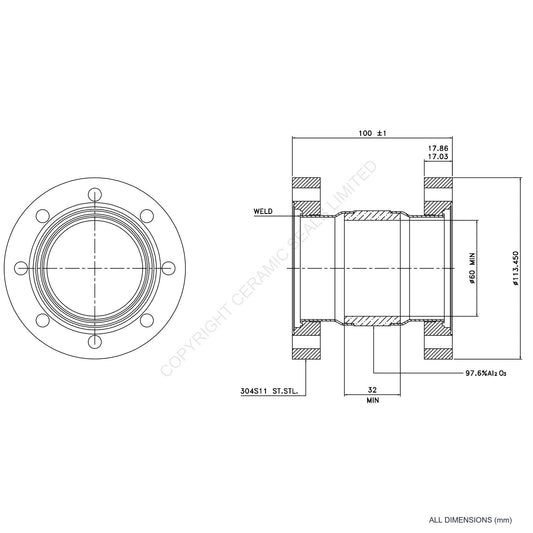

  • 10kV Flanged Vacuum Break

    10kV Flanged Vacuum Break

    10kV Flanged Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: CF Flange
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination CF Flange
    Termination Size 60mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

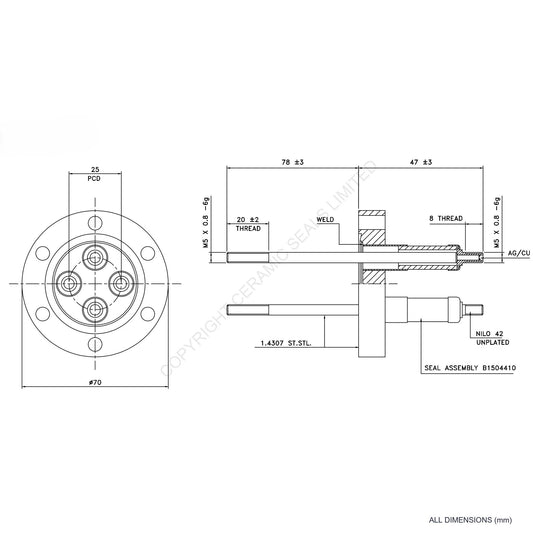

  • 10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

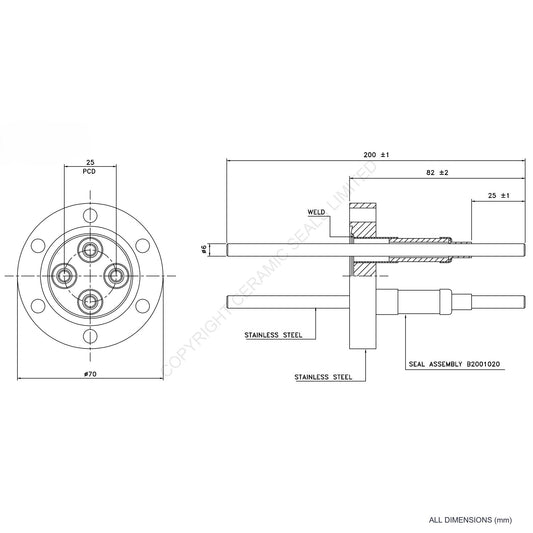

  • 10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 25A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 25A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
