  • 10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 70A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

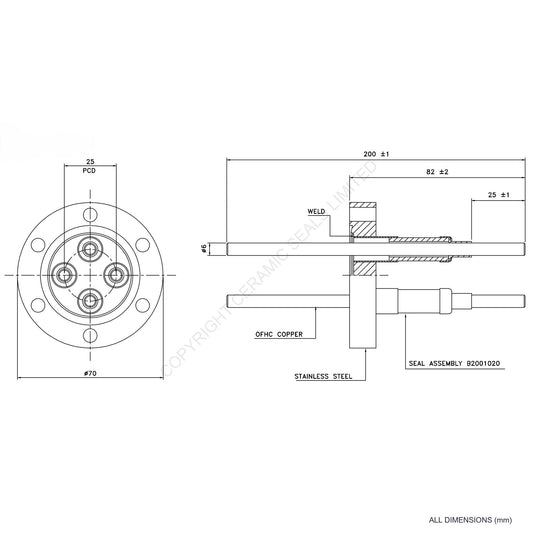

  • 10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    10kV Four Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 150A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 150A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 4
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube
    Termination Size 3mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube
    Termination Size 6mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 9.47/9.27mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 12.26/12.13mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

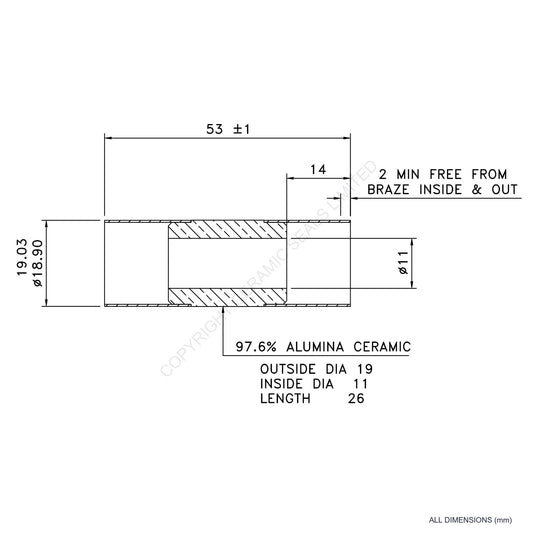

  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 24.15/24.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

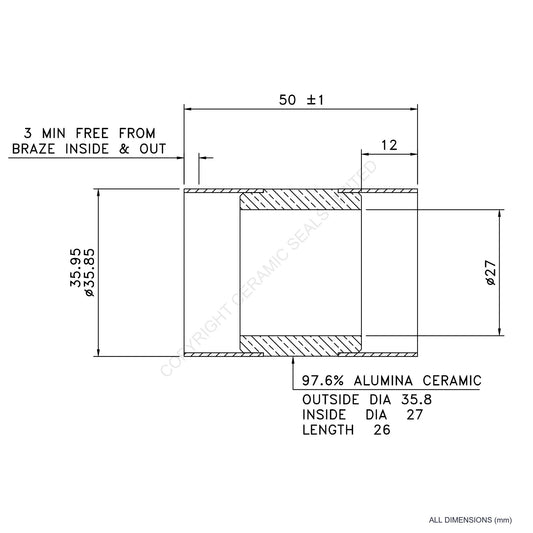

  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 35.95/35.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Isolator Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Isolator
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 16.05/15.95mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

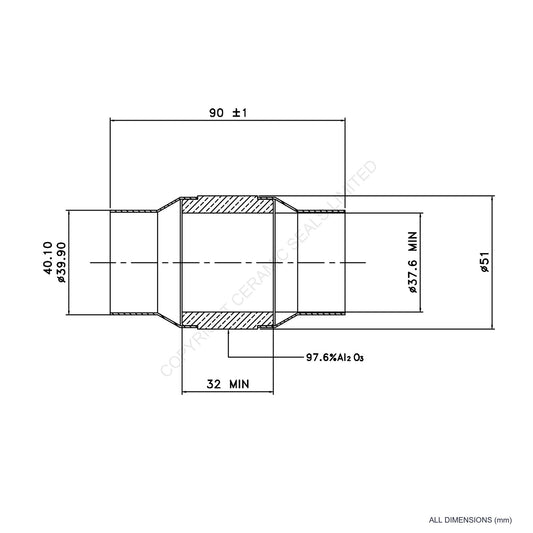

  • 10kV Isolator

    10kV Isolator

    10kV Isolator

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 40.10/39.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    Isolator Type: Cryogenic Liquid/Gas Working Voltage: 10.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Cryogenic Liquid/Gas
    Magnetic Yes
    Termination Tube
    Termination Size 3.0mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
