Products

Product Collection

  • 15kV Ceramic Insulator

    15kV Ceramic Insulator

    15kV Ceramic Insulator

    Isolator Type: Cryogenic Liquid/Gas Working Voltage: 15.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Cryogenic Liquid/Gas
    Magnetic Yes
    Termination Tube
    Termination Size 12.0mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
  • 15kV Ceramic Metal Seal

    15kV Ceramic Metal Seal

    15kV Ceramic Metal Seal

    Working Voltage: 15.0kV Current Rating: - Termination: Skirt (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 35.00/34.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

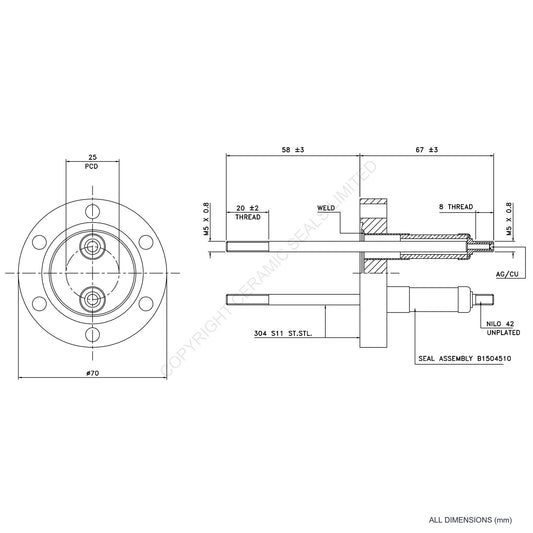

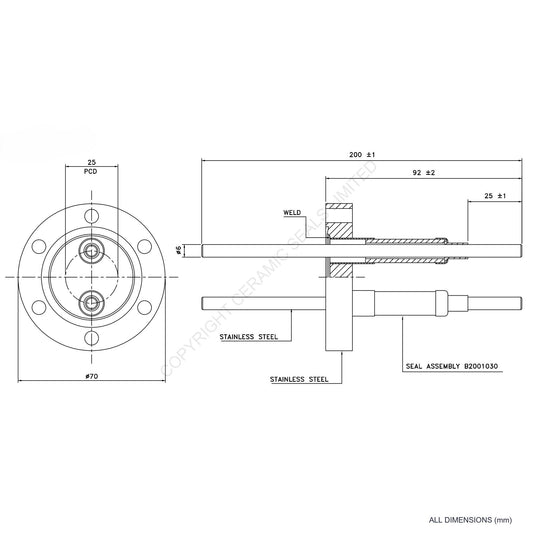

  • 15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
  • 15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 25A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 25A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

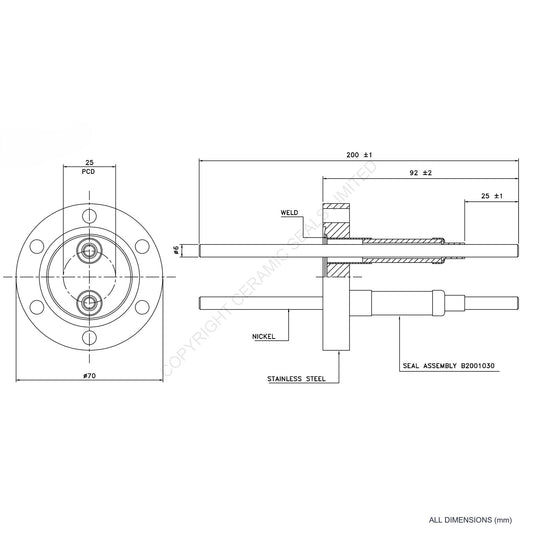

  • 15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 70A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

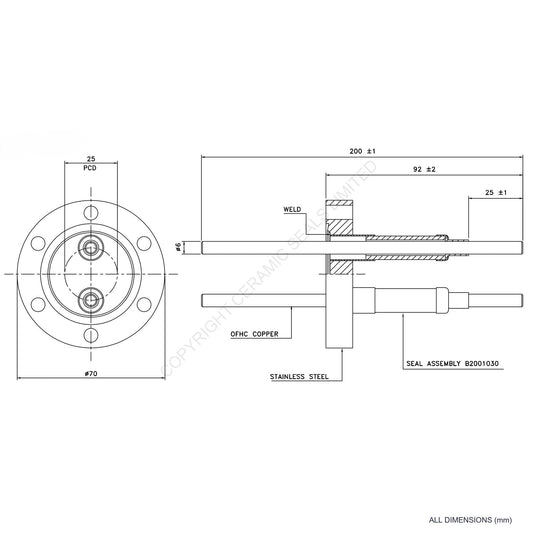

  • 15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    15kV Double Feedthrough Flanged

    Working Voltage: 15.0kV Current Rating: 150A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 150A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 2
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

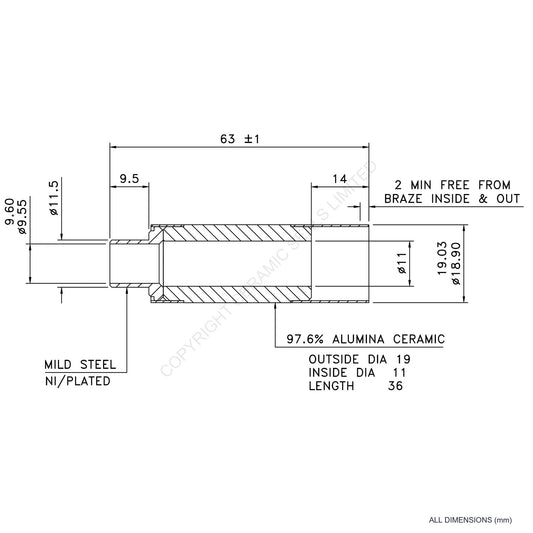

  • 15kV Feedthrough

    15kV Feedthrough

    15kV Feedthrough

    Working Voltage: 15.0kV Current Rating: - Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

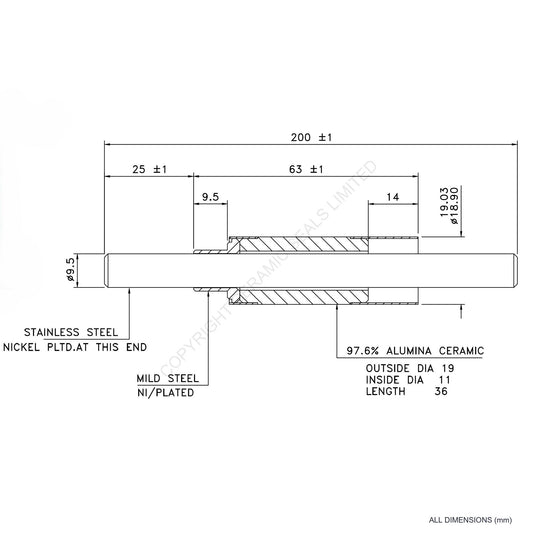

  • 15kV Feedthrough

    15kV Feedthrough

    15kV Feedthrough

    Working Voltage: 15.0kV Current Rating: 40A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

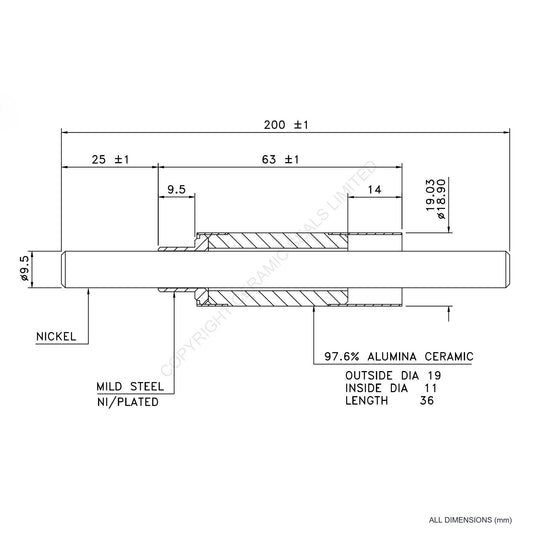

  • 15kV Feedthrough

    15kV Feedthrough

    15kV Feedthrough

    Working Voltage: 15.0kV Current Rating: 120A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 120A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

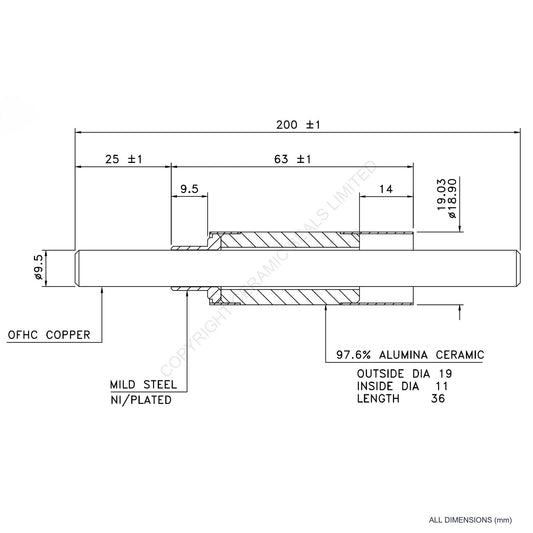

  • 15kV Feedthrough

    15kV Feedthrough

    15kV Feedthrough

    Working Voltage: 15.0kV Current Rating: 250A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 250A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

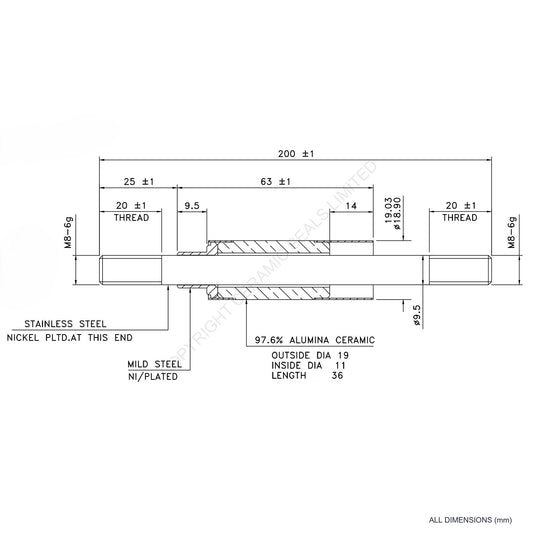

  • 15kV Feedthrough

    15kV Feedthrough

    15kV Feedthrough

    Working Voltage: 15.0kV Current Rating: 40A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV

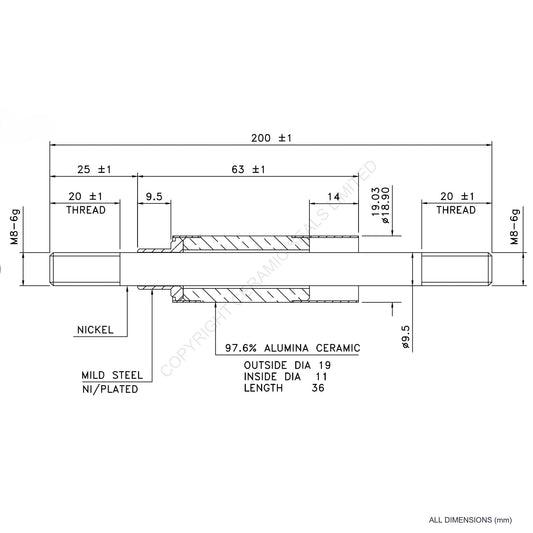

  • 15kV Feedthrough

    15kV Feedthrough

    15kV Feedthrough

    Working Voltage: 15.0kV Current Rating: 120A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 120A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 19.03/18.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
