Products

Product Collection

  • 12 Way Socket

    12 Way Socket

    12 Way Socket

    No. of Pins: 12 Breakdown Voltage: 3.0kV Termination: CF Flange
    Atmosphere Plug E2001910
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 12
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C
  • 12 Way Socket

    12 Way Socket

    12 Way Socket

    No. of Pins: 12 Breakdown Voltage: 3.0kV Termination: CF Flange
    Atmosphere Plug E2002010
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 12
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C

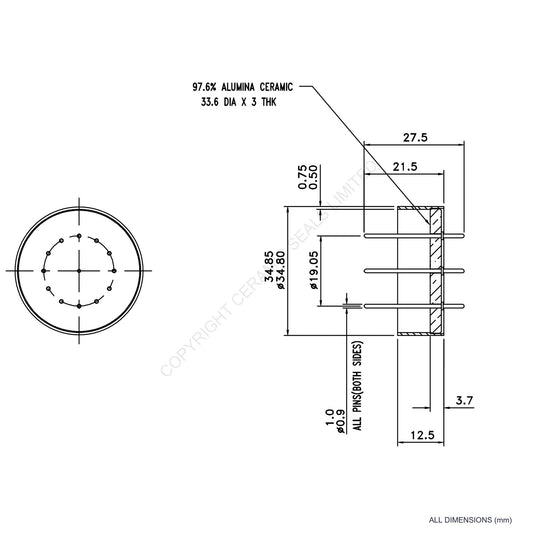

  • 13 Pin Feedthrough

    13 Pin Feedthrough

    13 Pin Feedthrough

    No. of Pins: 13 Breakdown Voltage: 3.0kV Termination: Tube (Weld)
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 13
    Termination Tube (Weld)
    Termination Size 34.85/34.80mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003520
    Working Temperature -196°C to 450°C

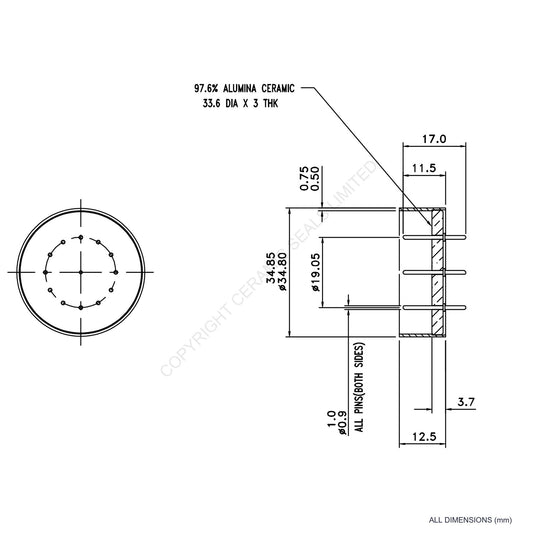

  • 13 Pin Feedthrough

    13 Pin Feedthrough

    13 Pin Feedthrough

    No. of Pins: 13 Breakdown Voltage: 3.0kV Termination: Tube (Weld)
    Atmosphere Plug E3002010
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 13
    Termination Tube (Weld)
    Termination Size 34.85/34.80mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003520
    Working Temperature -196°C to 450°C

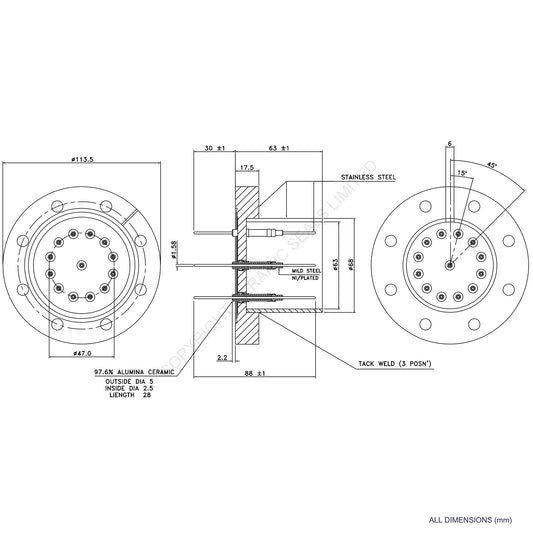

  • 13 Pin Socket

    13 Pin Socket

    13 Pin Socket

    No. of Pins: 13 Breakdown Voltage: 7.5kV Termination: CF Flange
    Atmosphere Plug E4008010
    Breakdown Voltage Pin To Ground 7.5kV
    Breakdown Voltage Pin To Pin 7.5kV
    Current Rating 2.5A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 13
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9005040
    Working Temperature -196°C to 450°C

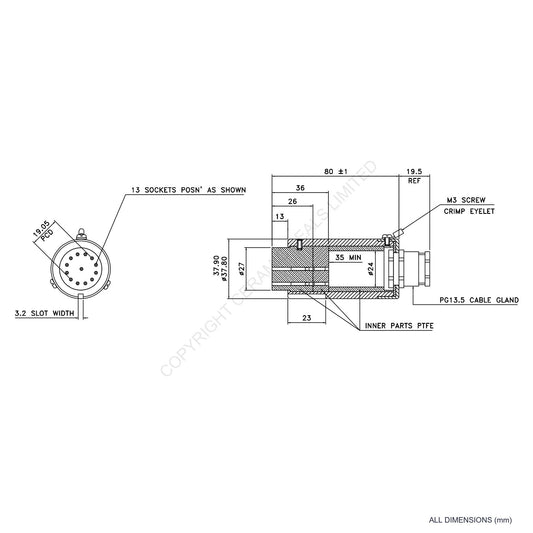

  • 13 Way Plug

    13 Way Plug

    13 Way Plug

    No. of Pins: 11 Breakdown Voltage: 2.5kV Termination: Cable
    Breakdown Voltage Pin To Ground 2.5kV
    Breakdown Voltage Pin To Pin 2.5kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 11
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C

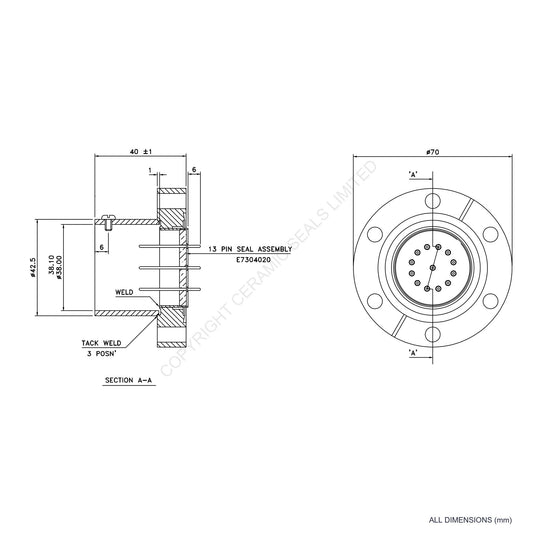

  • 13 Way Socket

    13 Way Socket

    13 Way Socket

    No. of Pins: 13 Breakdown Voltage: 2.5kV Termination: CF Flange
    Atmosphere Plug E3002010
    Breakdown Voltage Centre Pin To Ground 5.0kV
    Breakdown Voltage Pin To Ground 2.5kV
    Breakdown Voltage Pin To Pin 2.5kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 13
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003520
    Working Temperature -196°C to 450°C

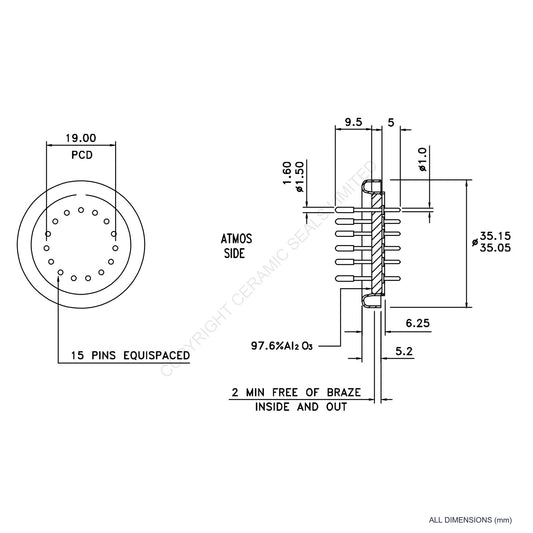

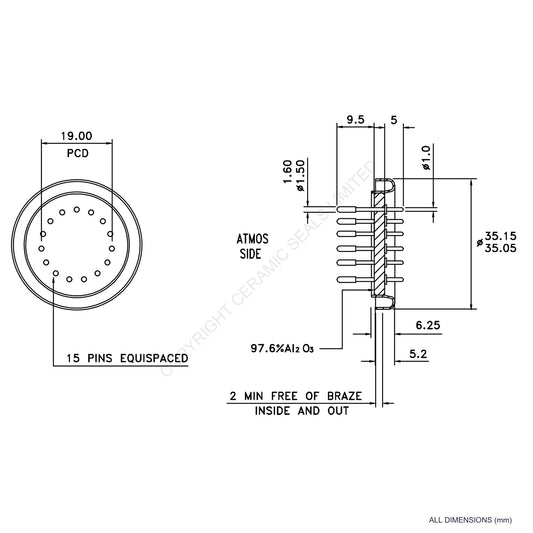

  • 15 Pin Feedthrough

    15 Pin Feedthrough

    15 Pin Feedthrough

    No. of Pins: 15 Breakdown Voltage: 2.0kV Termination: Skirt (Weld)
    Breakdown Voltage Pin To Ground 2.0kV
    Breakdown Voltage Pin To Pin 2.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 15
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003020
    Working Temperature -196°C to 450°C
  • 15 Pin Feedthrough

    15 Pin Feedthrough

    15 Pin Feedthrough

    No. of Pins: 15 Breakdown Voltage: 2.0kV Termination: Skirt (Weld)
    Breakdown Voltage Pin To Ground 2.0kV
    Breakdown Voltage Pin To Pin 2.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 15
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003020
    Working Temperature -196°C to 450°C

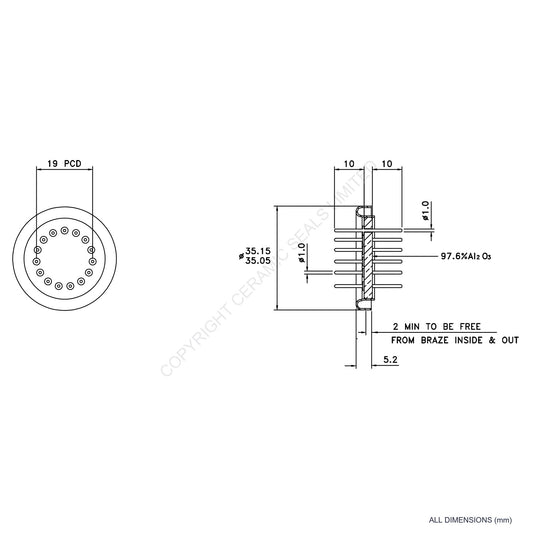

  • 15 Pin Feedthrough

    15 Pin Feedthrough

    15 Pin Feedthrough

    No. of Pins: 15 Breakdown Voltage: 1.5kV Termination: Skirt (Weld)
    Breakdown Voltage Pin To Ground 1.5kV
    Breakdown Voltage Pin To Pin 1.5kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 15
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003020
    Working Temperature -196°C to 450°C

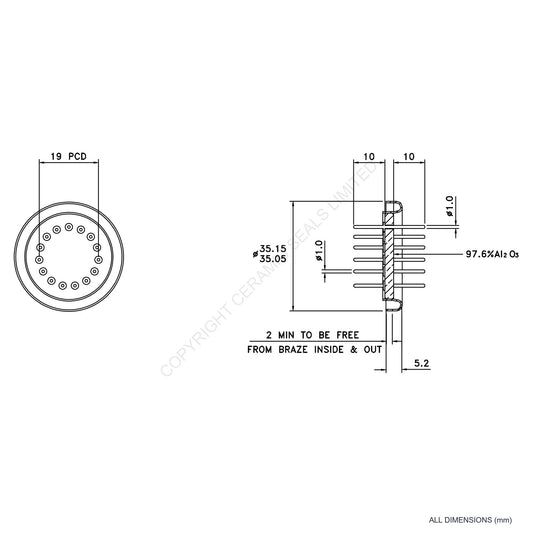

  • 15 Pin Feedthrough

    15 Pin Feedthrough

    15 Pin Feedthrough

    No. of Pins: 15 Breakdown Voltage: 1.5kV Termination: Skirt (Weld)
    Breakdown Voltage Pin To Ground 1.5kV
    Breakdown Voltage Pin To Pin 1.5kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 15
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003020
    Working Temperature -196°C to 450°C

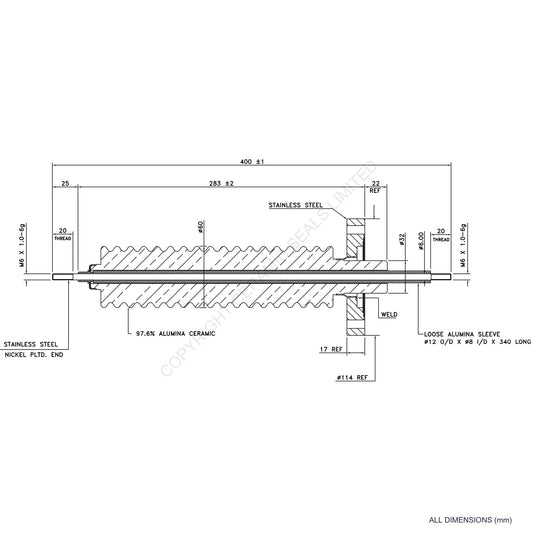

  • 150kV Feedthorugh Assembly Flange

    150kV Feedthorugh Assembly Flange

    150kV Feedthorugh Assembly Flange

    Working Voltage: 150.0kV Current Rating: 25A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 25A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV
