Products

Product Collection

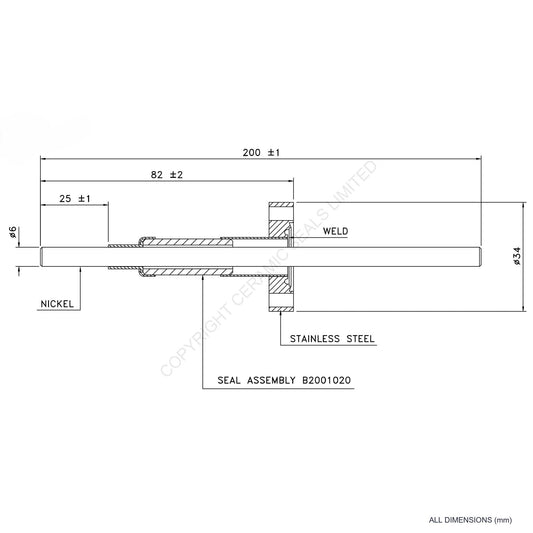

  • 10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 70A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

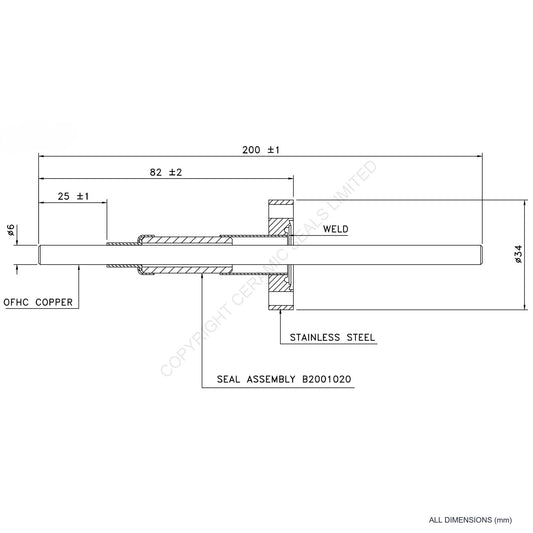

  • 10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 150A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 150A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

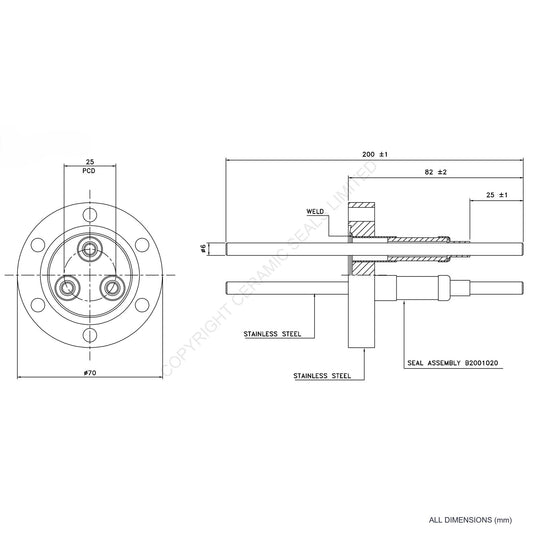

  • 10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 3
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 25A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 25A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 3
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

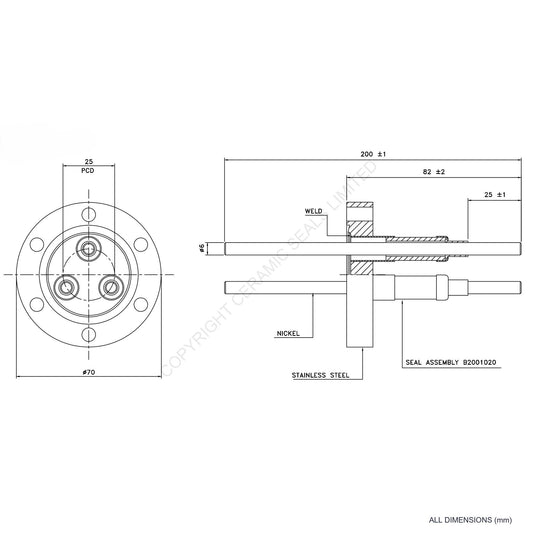

  • 10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 70A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 3
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

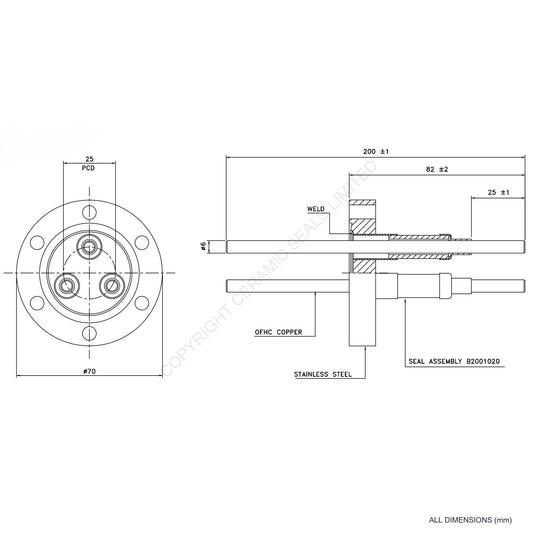

  • 10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    10kV Three Way Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 150A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 150A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 3
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

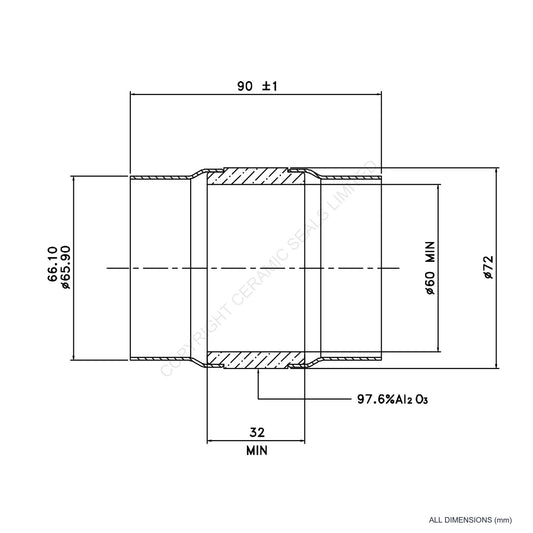

  • 10kV Vacuum Break

    10kV Vacuum Break

    10kV Vacuum Break

    Isolator Type: Vacuum Break Working Voltage: 10.0kV Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Isolator Type Vacuum Break
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 66.10/65.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

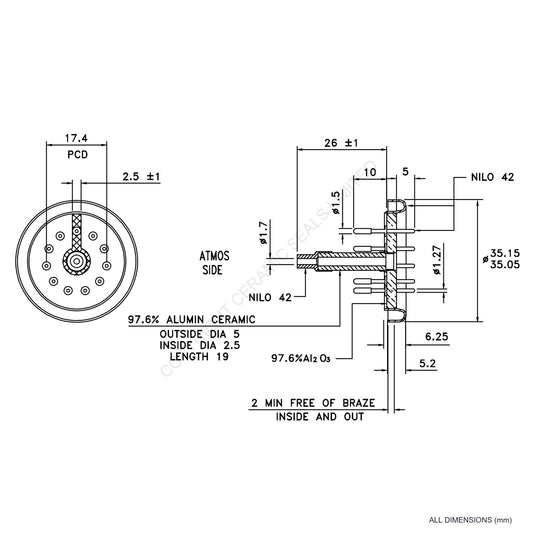

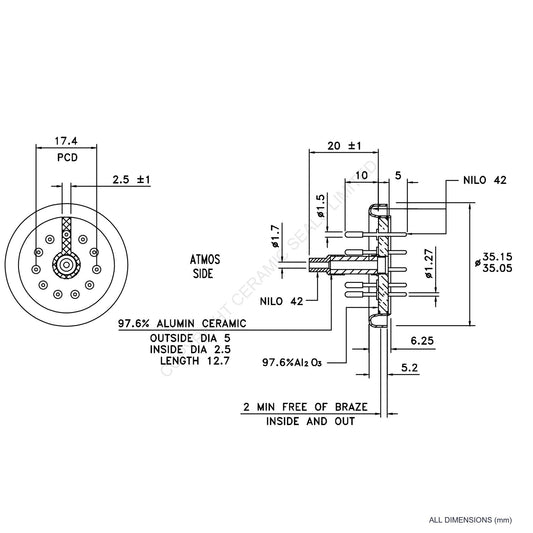

  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Breakdown Voltage Centre Pin To Ground 4.0kV
    Breakdown Voltage Pin To Ground 3.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002020
    Working Temperature -196°C to 450°C

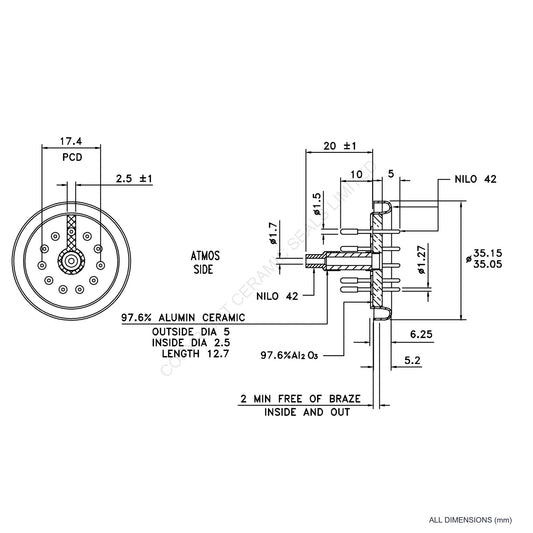

  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Breakdown Voltage Centre Pin To Ground 4.0kV
    Breakdown Voltage Pin To Ground 3.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002020
    Working Temperature -196°C to 450°C

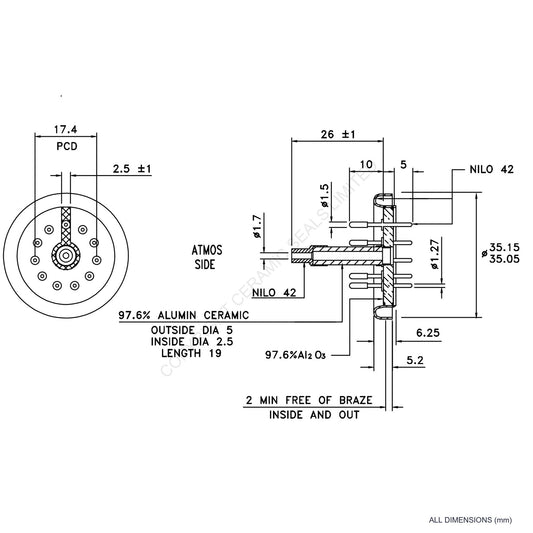

  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002020
    Working Temperature -196°C to 450°C
  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002020
    Working Temperature -196°C to 450°C

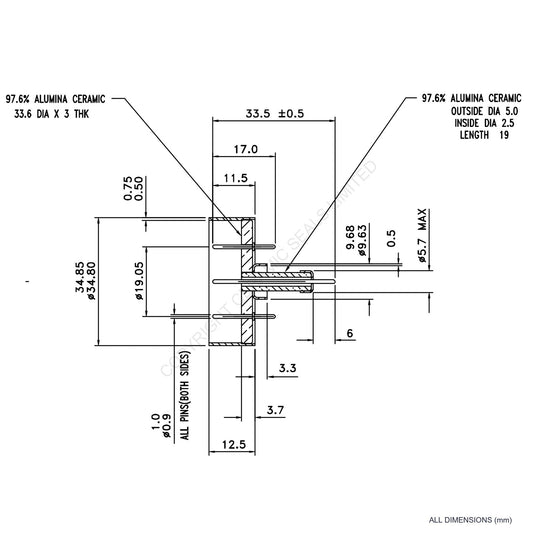

  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Tube (Weld)
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Tube (Weld)
    Termination Size 34.85/34.80mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
