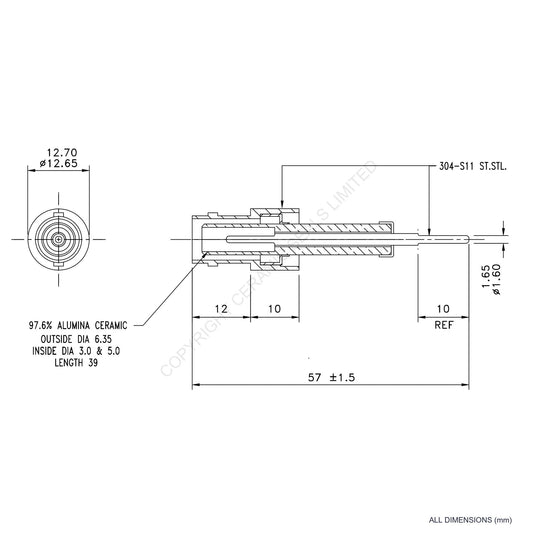

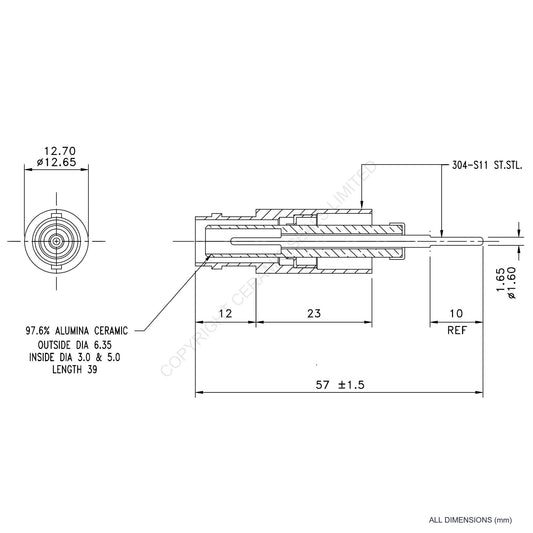

  • 10kV SHV Feedthrough

    10kV SHV Feedthrough

    10kV SHV Feedthrough

    Working Voltage: 10.0kV Current Rating: 3A Termination: Tube (Weld)
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Tube (Weld)
    Termination Size 12.70/12.65mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

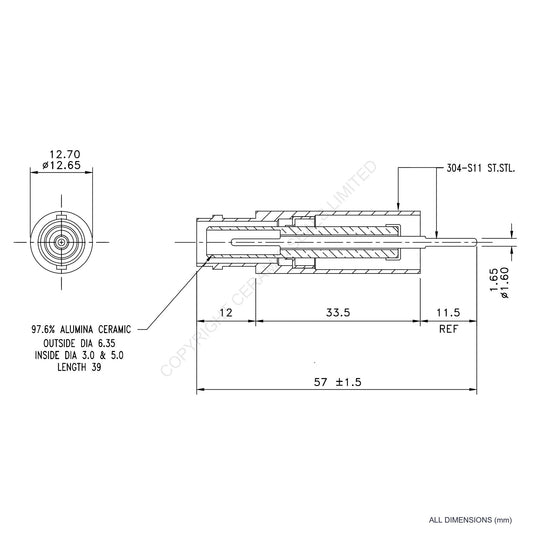

  • 10kV SHV Feedthrough

    10kV SHV Feedthrough

    10kV SHV Feedthrough

    Working Voltage: 10.0kV Current Rating: 3A Termination: Tube (Weld)
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Tube (Weld)
    Termination Size 12.70/12.65mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV SHV Feedthrough

    10kV SHV Feedthrough

    10kV SHV Feedthrough

    Working Voltage: 10.0kV Current Rating: 3A Termination: Tube (Weld)
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Tube (Weld)
    Termination Size 12.70/12.65mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

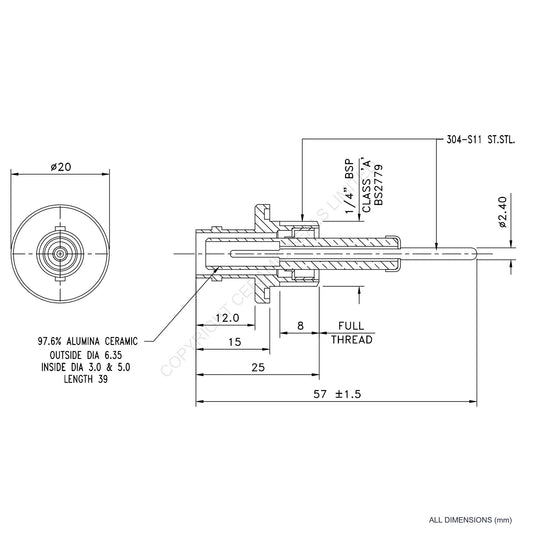

  • 10kV SHV Feedthrough

    10kV SHV Feedthrough

    10kV SHV Feedthrough

    Working Voltage: 10.0kV Current Rating: 3A Termination: O-Ring Connector
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Viton (FKM)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination O-Ring Connector
    Termination Size 20mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 10.0kV

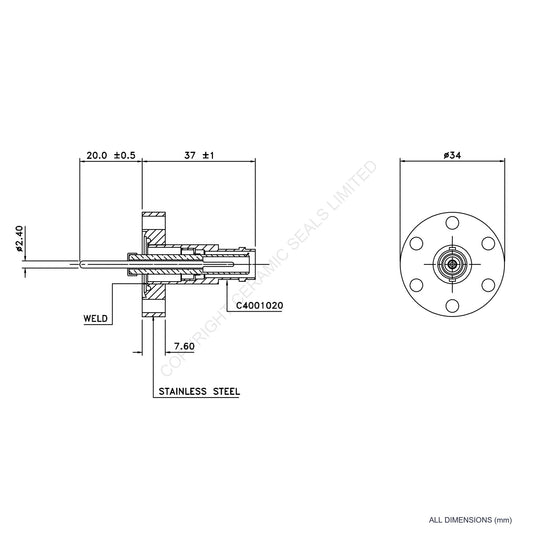

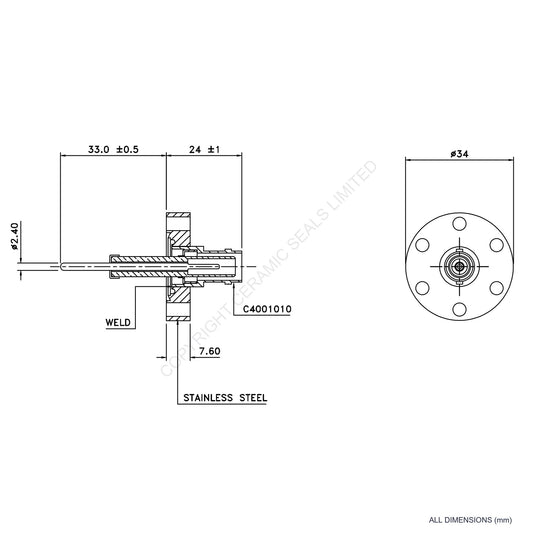

  • 10kV SHV Flanged Connector

    10kV SHV Flanged Connector

    10kV SHV Flanged Connector

    Working Voltage: 10.0kV Current Rating: 3A Termination: CF Flange
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

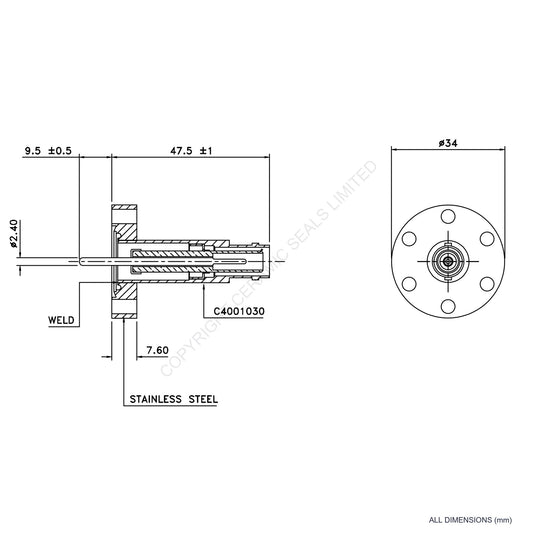

  • 10kV SHV Flanged Connector

    10kV SHV Flanged Connector

    10kV SHV Flanged Connector

    Working Voltage: 10.0kV Current Rating: 3A Termination: CF Flange
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV SHV Flanged Connector

    10kV SHV Flanged Connector

    10kV SHV Flanged Connector

    Working Voltage: 10.0kV Current Rating: 3A Termination: CF Flange
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

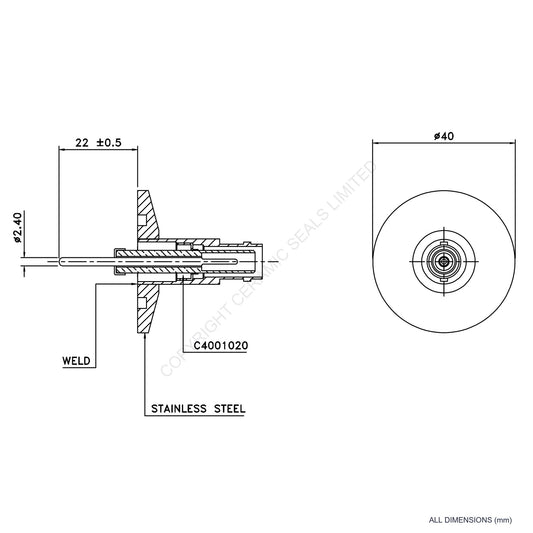

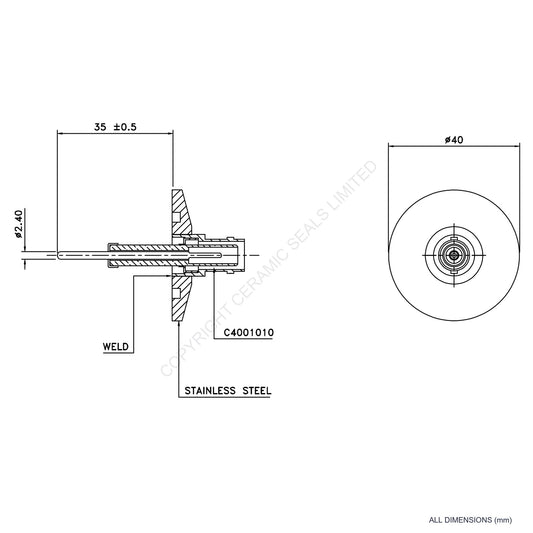

  • 10kV SHV O-Ring Flanged Assembly

    10kV SHV O-Ring Flanged Assembly

    10kV SHV O-Ring Flanged Assembly

    Working Voltage: 10.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 10.0kV

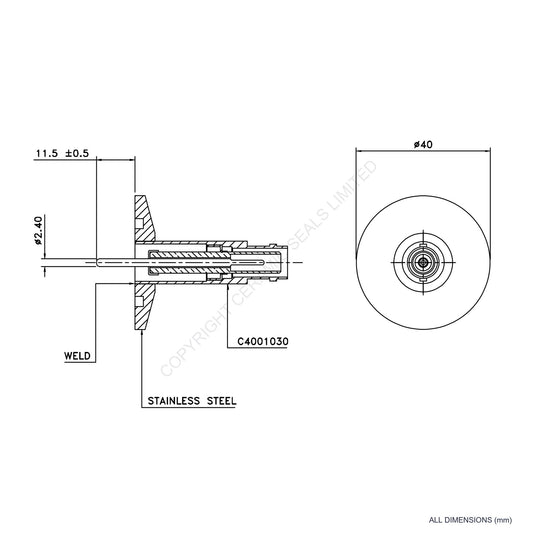

  • 10kV SHV O-Ring Flanged Assembly

    10kV SHV O-Ring Flanged Assembly

    10kV SHV O-Ring Flanged Assembly

    Working Voltage: 10.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 10.0kV
  • 10kV SHV O-Ring Flanged Assembly

    10kV SHV O-Ring Flanged Assembly

    10kV SHV O-Ring Flanged Assembly

    Working Voltage: 10.0kV Current Rating: 3A Termination: Klein Flange
    Air Side Plug C4009001
    Configuration Single Ended
    Connector Type SHV
    Current Rating 3A
    Feedthrough Quantity 1
    Flange Material Stainless Steel (1.4307)
    Gasket Nitrile Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Shielding Grounded
    Termination Klein Flange
    Termination Size 40mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 10.0kV

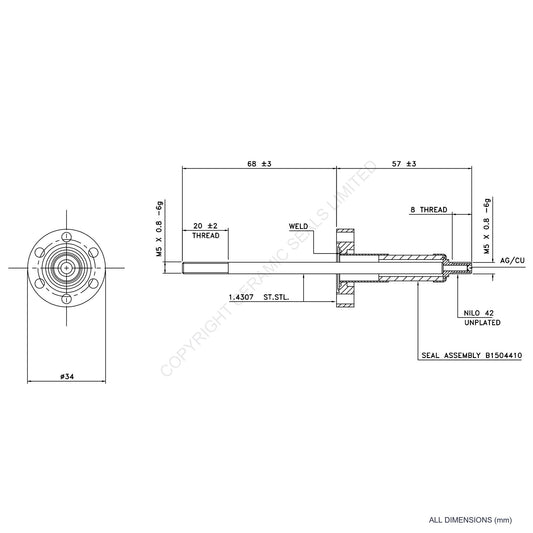

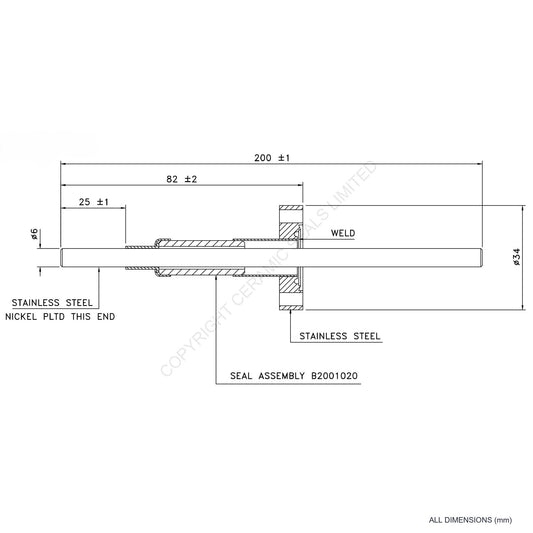

  • 10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 15A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 15A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    10kV Single Feedthrough Flanged

    Working Voltage: 10.0kV Current Rating: 25A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 25A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 34mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
