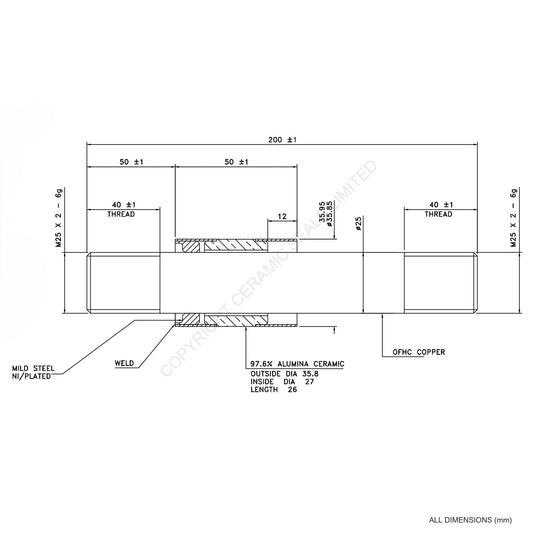

  • 10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    Working Voltage: 10.0kV Current Rating: 1000A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 1000A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 35.95/35.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    Working Voltage: 10.0kV Current Rating: 160A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 160A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 35.95/35.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
  • 10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    Working Voltage: 10.0kV Current Rating: 450A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 450A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 35.95/35.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

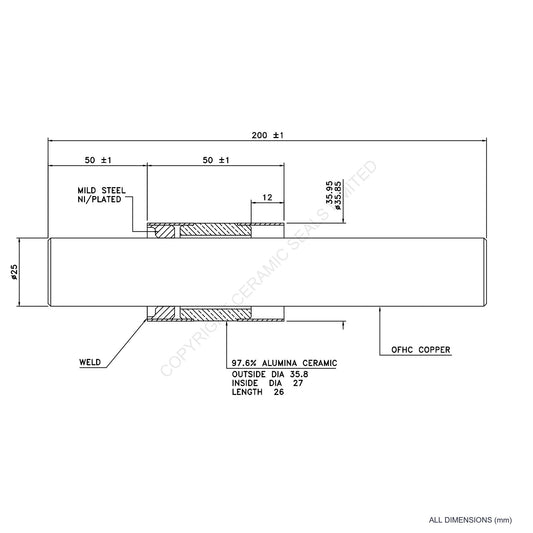

  • 10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    10kV Metal Ceramic Seal

    Working Voltage: 10.0kV Current Rating: 1000A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 1000A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 35.95/35.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

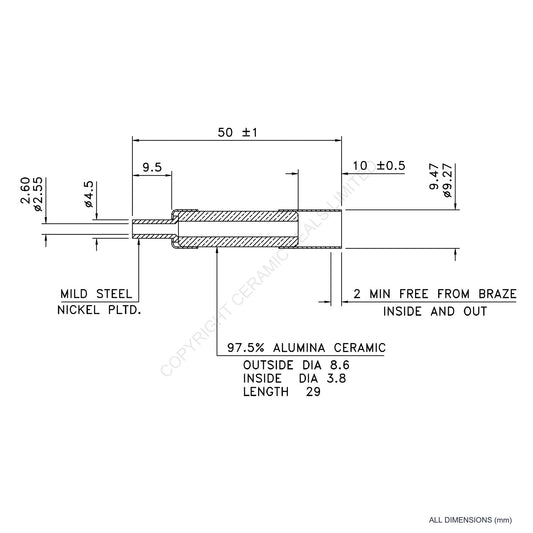

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: - Termination: Tube (Weld)
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 9.47/9.27mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

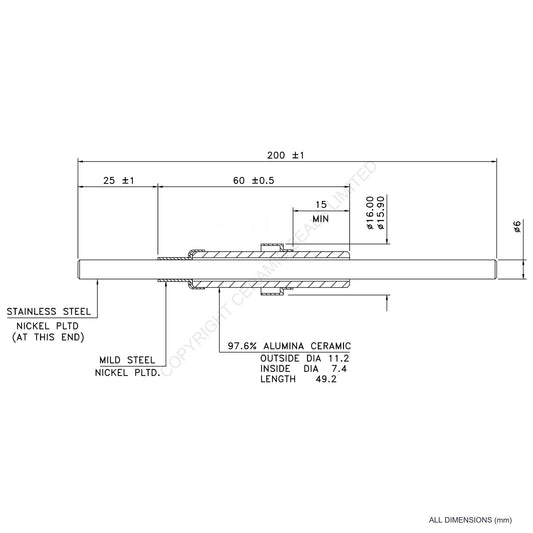

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: 25A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 25A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 16.00/15.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

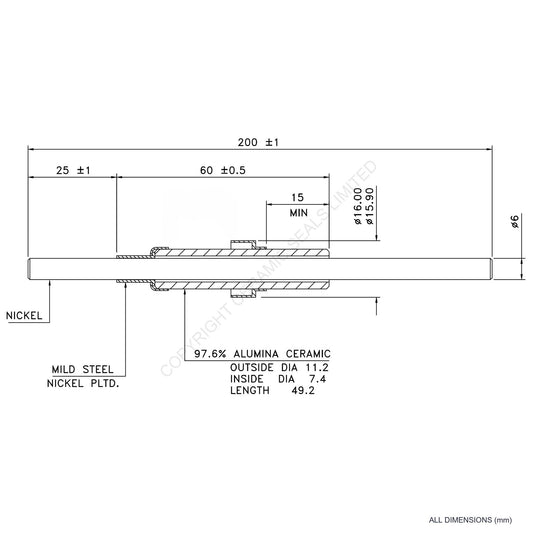

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: 70A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 16.00/15.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

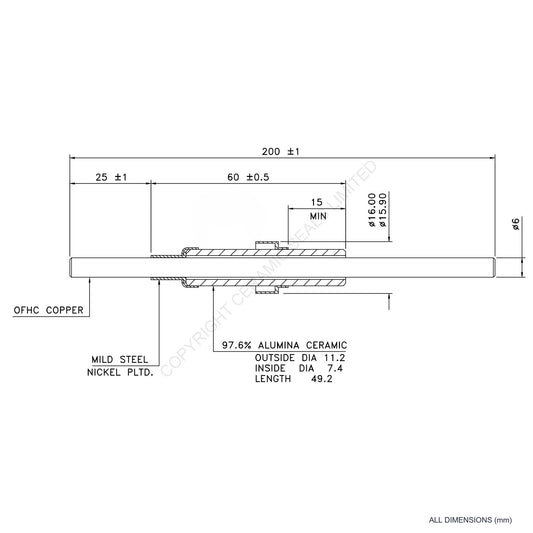

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: 150A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 150A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 16.00/15.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

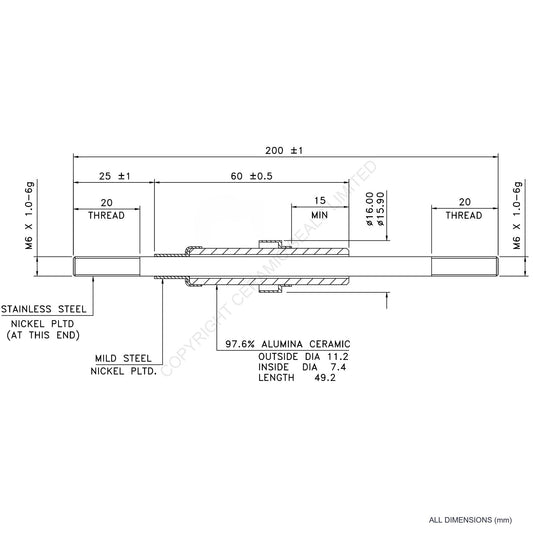

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: 25A Termination: Skirt (Weld)
    Conductor Material Stainless Steel
    Current Rating 25A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 16.00/15.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

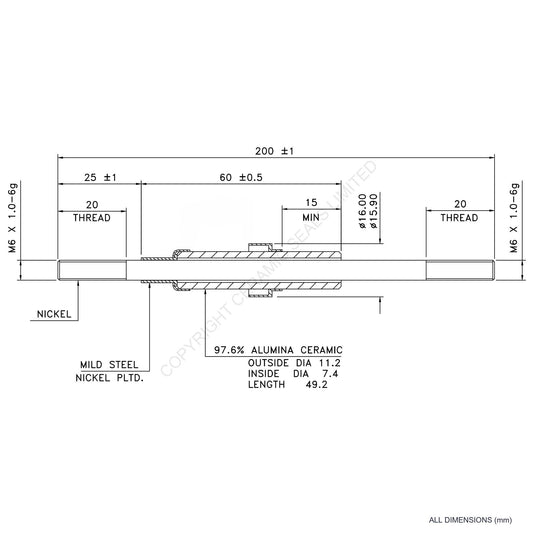

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: 70A Termination: Skirt (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 16.00/15.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

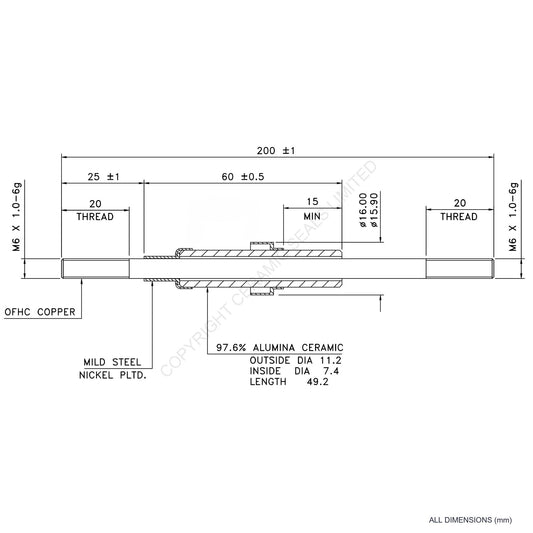

  • 10kV Power Feedthrough

    10kV Power Feedthrough

    10kV Power Feedthrough

    Working Voltage: 10.0kV Current Rating: 150A Termination: Skirt (Weld)
    Conductor Material OFHC Copper
    Current Rating 150A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Skirt (Weld)
    Termination Size 16.00/15.90mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV

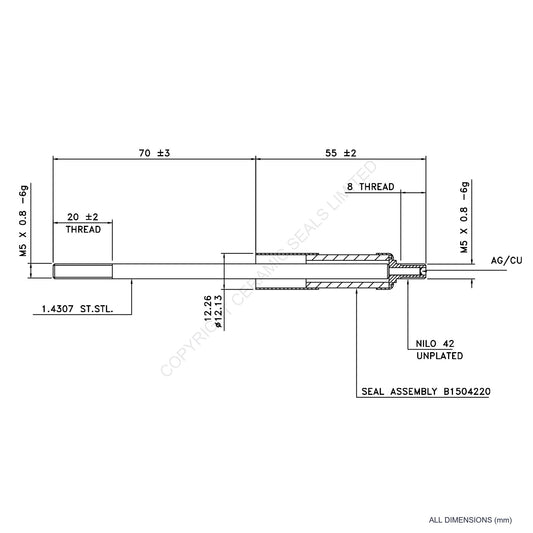

  • 10kV Seal Assembly

    10kV Seal Assembly

    10kV Seal Assembly

    Working Voltage: 10.0kV Current Rating: 15A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 15A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 12.16/12.13mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 10.0kV
