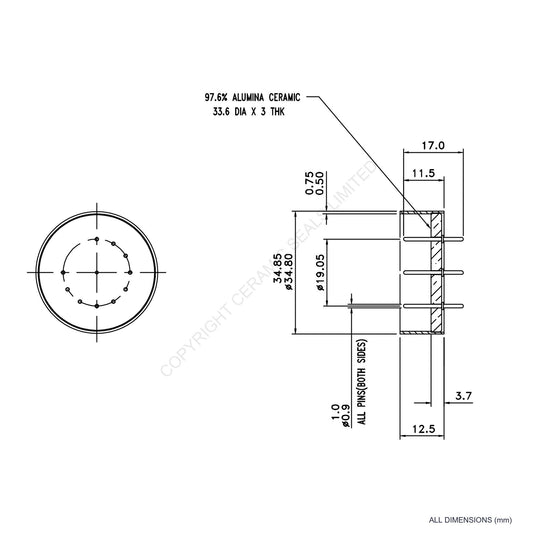

  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Tube (Weld)
    Atmosphere Plug E3002010
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Tube (Weld)
    Termination Size 34.85/34.80mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

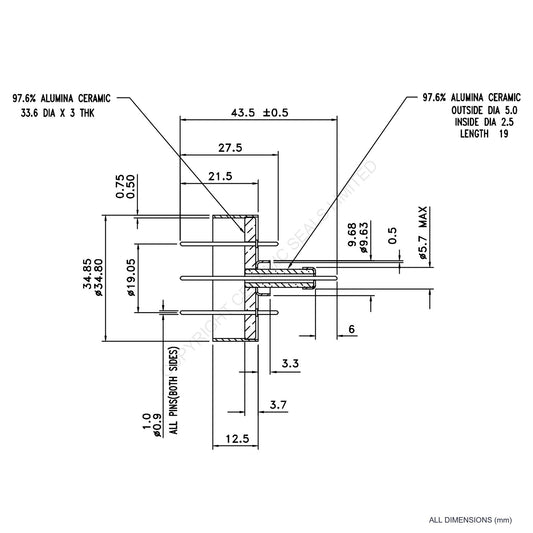

  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Tube (Weld)
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Tube (Weld)
    Termination Size 34.85/34.80mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003520
    Working Temperature -196°C to 450°C
  • 11 Pin Feedthrough

    11 Pin Feedthrough

    11 Pin Feedthrough

    No. of Pins: 11 Breakdown Voltage: 3.0kV Termination: Tube (Weld)
    Atmosphere Plug E3002010
    Breakdown Voltage Centre Pin To Ground 6.0kV
    Breakdown Voltage Pin To Ground 3.0Kv
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 11
    Termination Tube (Weld)
    Termination Size 34.85/34.80mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003520
    Working Temperature -196°C to 450°C

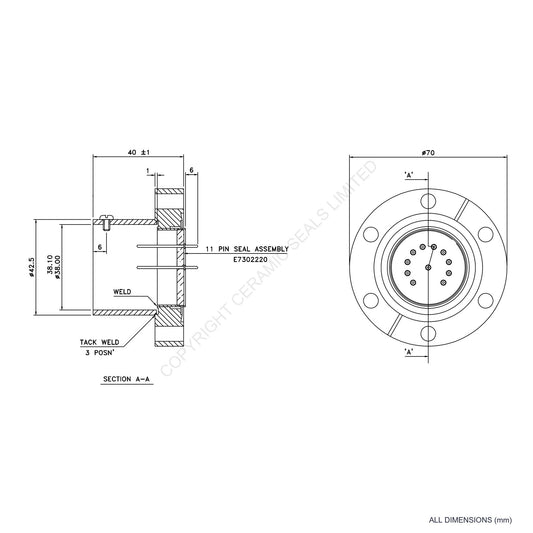

  • 11 Pin Socket

    11 Pin Socket

    11 Pin Socket

    No. of Pins: 11 Breakdown Voltage: 2.5kV Termination: CF Flange
    Atmosphere Plug E3002010
    Breakdown Voltage Centre Pin To Ground 5.0kV
    Breakdown Voltage Pin To Ground 2.5kV
    Breakdown Voltage Pin To Pin 2.5kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 11
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9003520
    Working Temperature -196°C to 450°C

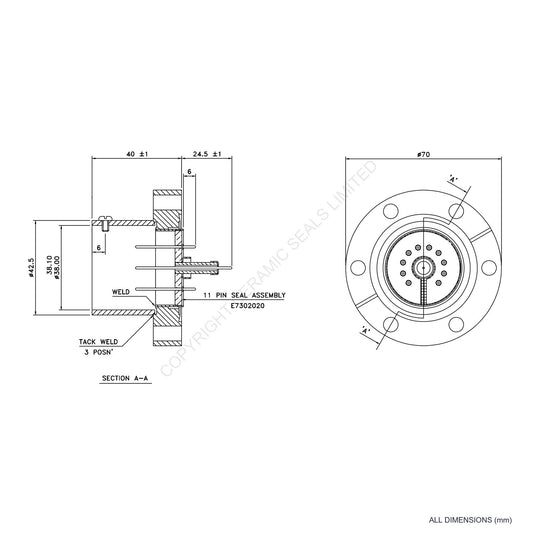

  • 11 Way Socket

    11 Way Socket

    11 Way Socket

    No. of Pins: 11 Breakdown Voltage: 2.5kV Termination: CF Flange
    Atmosphere Plug E3002010
    Breakdown Voltage Centre Pin To Ground 5.0kV
    Breakdown Voltage Pin To Ground 2.5kV
    Breakdown Voltage Pin To Pin 2.5kV
    Current Rating 1.4A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper Fixed
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Socket
    No Of Pins 11
    Termination CF Flange
    Termination Size 70mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

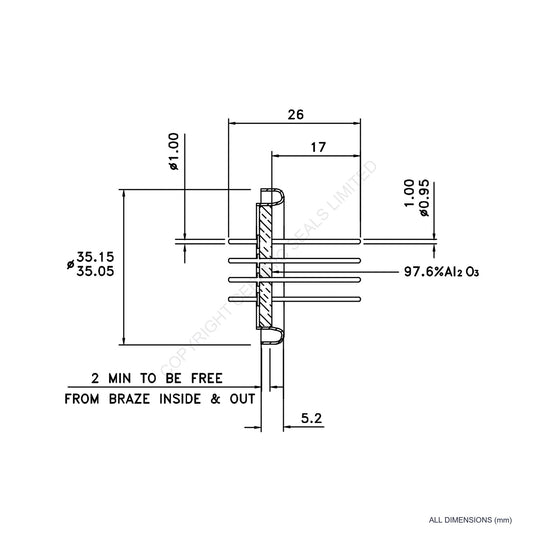

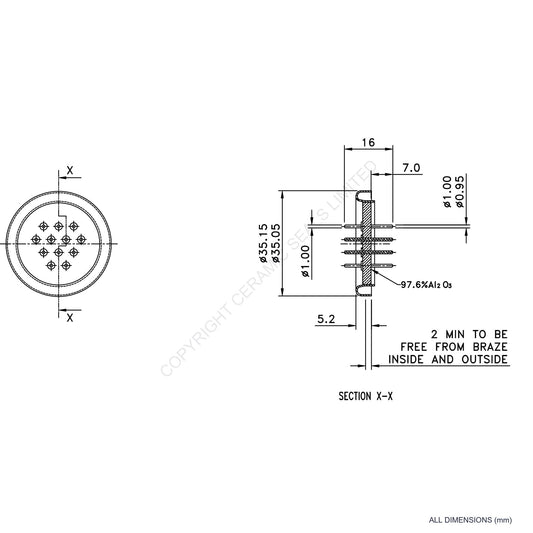

  • 12 Pin Feedthrough

    12 Pin Feedthrough

    12 Pin Feedthrough

    No. of Pins: 12 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Atmosphere Plug E2002010
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 12
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C
  • 12 Pin Feedthrough

    12 Pin Feedthrough

    12 Pin Feedthrough

    No. of Pins: 12 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Atmosphere Plug E2002010
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 12
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C
  • 12 Pin Feedthrough

    12 Pin Feedthrough

    12 Pin Feedthrough

    No. of Pins: 12 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Atmosphere Plug E2001910
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 12
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C
  • 12 Pin Feedthrough

    12 Pin Feedthrough

    12 Pin Feedthrough

    No. of Pins: 12 Breakdown Voltage: 3.0kV Termination: Skirt (Weld)
    Atmosphere Plug E2001910
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 3.0kV
    Current Rating 1.4A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Multi Pin Type Feedthrough
    No Of Pins 12
    Termination Skirt (Weld)
    Termination Size 35.15/35.05mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Vacuum Connector E9002040
    Working Temperature -196°C to 450°C
  • 12 Way Plug

    12 Way Plug

    12 Way Plug

    No. of Pins: 12 Breakdown Voltage: 5.0kV Termination: Cable
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 12
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
  • 12 Way Plug

    12 Way Plug

    12 Way Plug

    No. of Pins: 12 Breakdown Voltage: 5.0kV Termination: Cable
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 12
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
  • 12 Way Plug

    12 Way Plug

    12 Way Plug

    No. of Pins: 12 Breakdown Voltage: 5.0kV Termination: Cable
    Breakdown Voltage Pin To Ground 5.0kV
    Breakdown Voltage Pin To Pin 5.0kV
    Current Rating 1.4A
    Insulating Material PTFE
    Magnetic Yes
    Multi Pin Type Plug
    No Of Pins 12
    Termination Cable
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
