  • 150kV Feedthorugh Assembly Flanged

    150kV Feedthorugh Assembly Flanged

    150kV Feedthorugh Assembly Flanged

    Working Voltage: 150.0kV Current Rating: 70A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

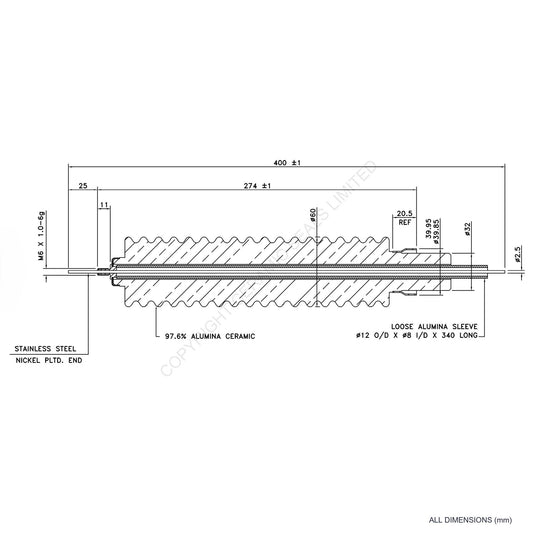

  • 150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    Working Voltage: 150.0kV Current Rating: 7A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 7A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 39.95/39.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

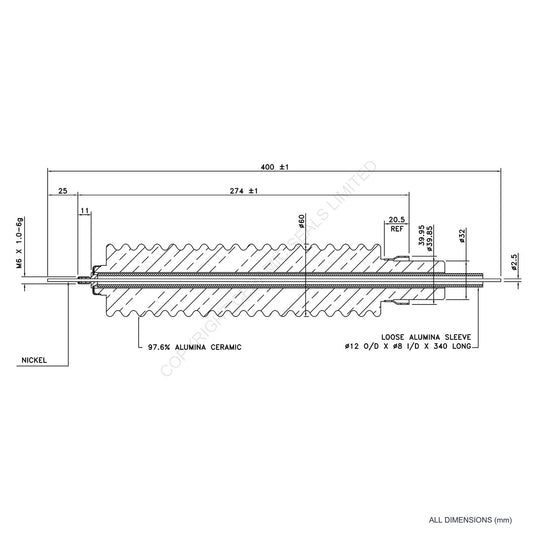

  • 150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    Working Voltage: 150.0kV Current Rating: 20A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 20A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 39.95/39.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

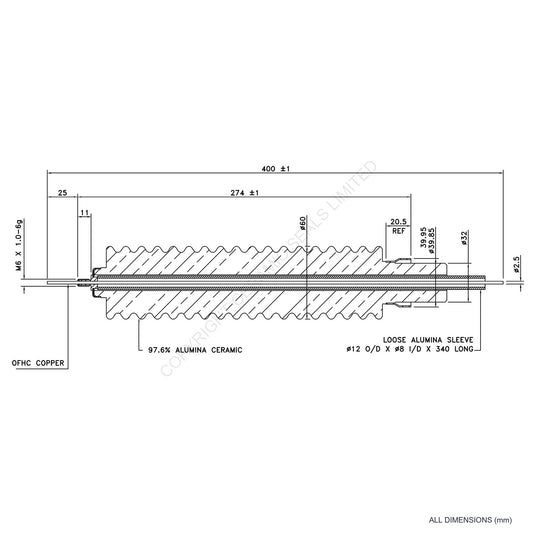

  • 150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    Working Voltage: 150.0kV Current Rating: 40A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 40A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 39.95/39.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV
  • 150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    Working Voltage: 150.0kV Current Rating: 25A Termination: Tube (Weld)
    Conductor Material Stainless Steel
    Current Rating 25A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 39.95/39.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

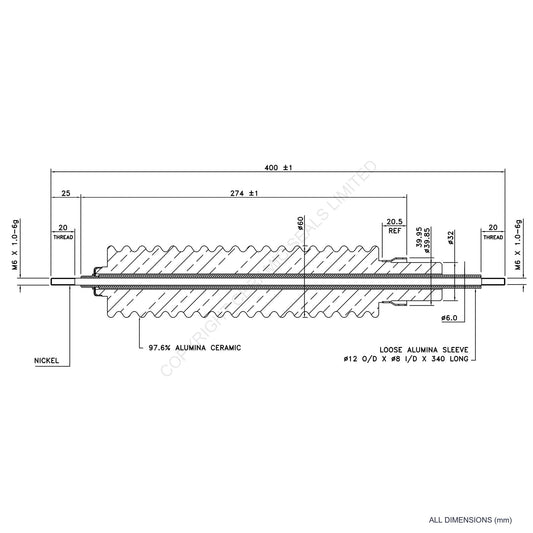

  • 150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    Working Voltage: 150.0kV Current Rating: 70A Termination: Tube (Weld)
    Conductor Material Nickel (Alloy 200)
    Current Rating 70A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 39.95/39.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

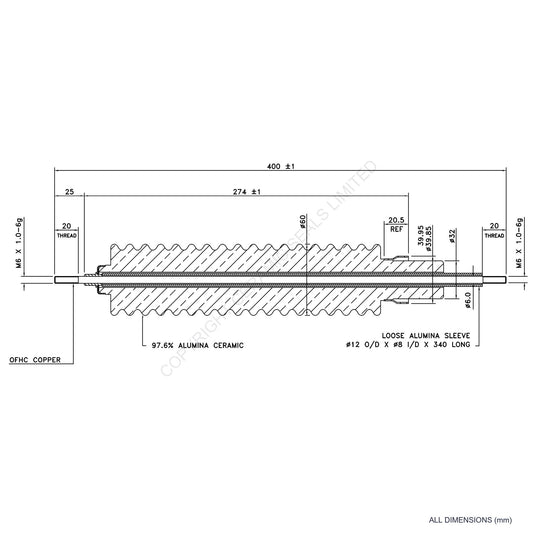

  • 150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    150kV Feedthrough Assembly

    Working Voltage: 150.0kV Current Rating: 150A Termination: Tube (Weld)
    Conductor Material OFHC Copper
    Current Rating 150A
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination Tube (Weld)
    Termination Size 39.95/39.85mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

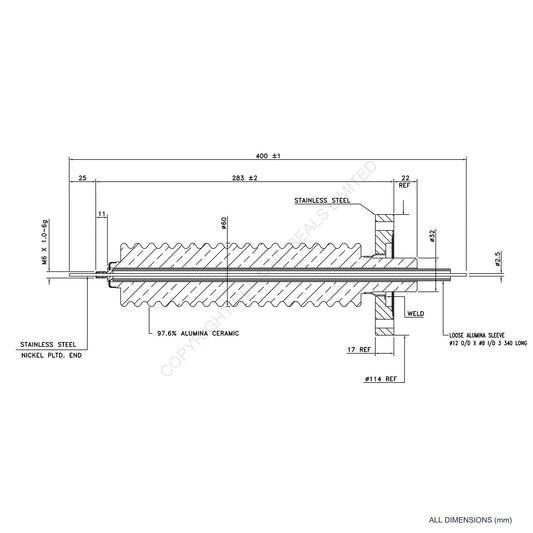

  • 150kV Feedthrough Assembly Flange

    150kV Feedthrough Assembly Flange

    150kV Feedthrough Assembly Flange

    Working Voltage: 150.0kV Current Rating: 7A Termination: CF Flange
    Conductor Material Stainless Steel
    Current Rating 7A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

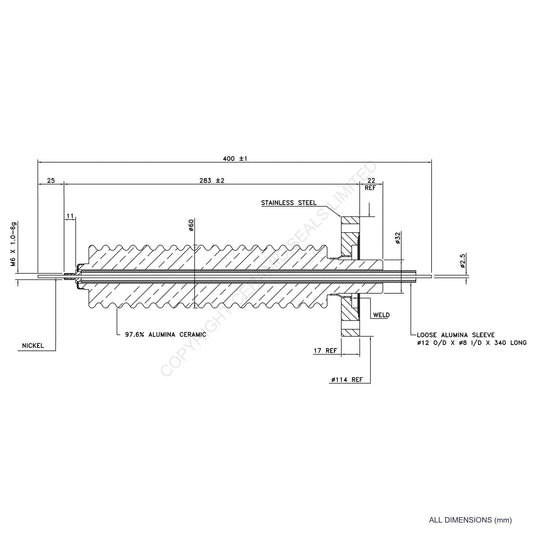

  • 150kV Feedthrough Assembly Flange

    150kV Feedthrough Assembly Flange

    150kV Feedthrough Assembly Flange

    Working Voltage: 150.0kV Current Rating: 20A Termination: CF Flange
    Conductor Material Nickel (Alloy 200)
    Current Rating 20A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

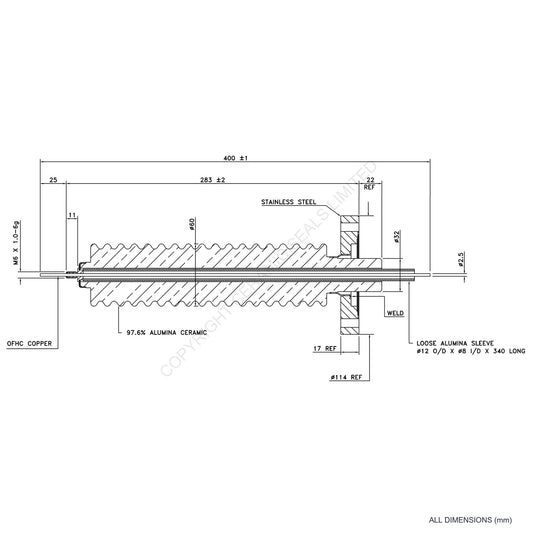

  • 150kV Feedthrough Assembly Flanged

    150kV Feedthrough Assembly Flanged

    150kV Feedthrough Assembly Flanged

    Working Voltage: 150.0kV Current Rating: 40A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 40A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV

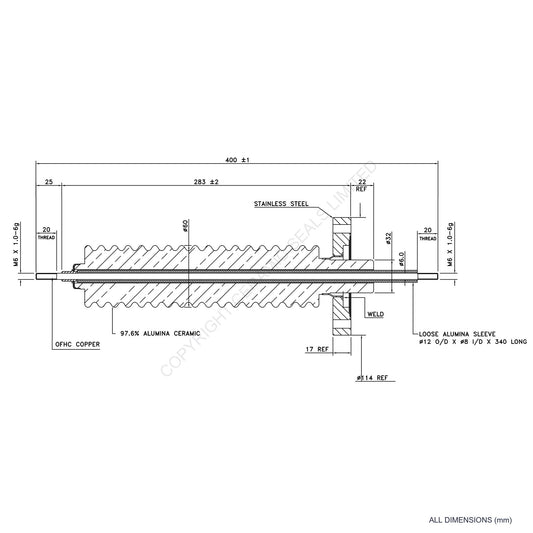

  • 150kV Feedthrough Assembly Flanged

    150kV Feedthrough Assembly Flanged

    150kV Feedthrough Assembly Flanged

    Working Voltage: 150.0kV Current Rating: 150A Termination: CF Flange
    Conductor Material OFHC Copper
    Current Rating 150A
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    No Of Conductors 1
    Termination CF Flange
    Termination Size 114mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 150.0kV
  • 15kV Ceramic Insulator

    15kV Ceramic Insulator

    15kV Ceramic Insulator

    Isolator Type: Cryogenic Liquid/Gas Working Voltage: 15.0kV Termination: Tube
    Insulating Material Alumina (96-98%)
    Isolator Type Cryogenic Liquid/Gas
    Magnetic Yes
    Termination Tube
    Termination Size 6.0mm
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 15.0kV
