Products

Product Collection

  • Power & Thermocouple O-Ring Type R incl. Compensating Cables

    Power & Thermocouple O-Ring Type R incl. Compensating Cables

    Power & Thermocouple O-Ring Type R incl. Compensating Cables

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Platinum - 13% Rhodium / Platinum
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009004
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range 0°C to 1600°C
    Thermocouple Termination Spade
    Thermocouple Type Type R
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV

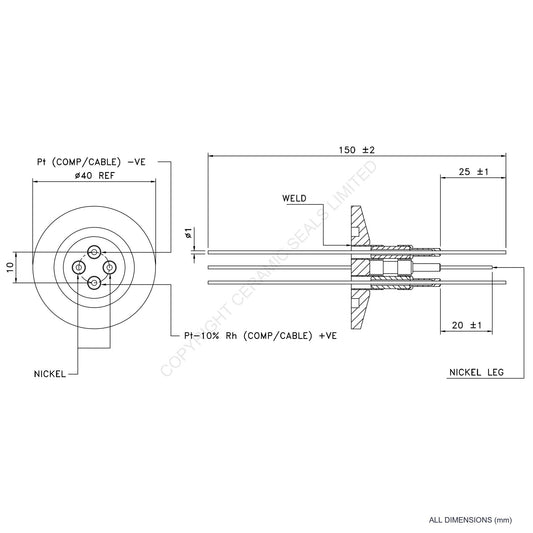

  • Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Platinum - 10% Rhodium / Platinum
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range 0°C to 1500°C
    Thermocouple Termination Plain
    Thermocouple Type Type S
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV

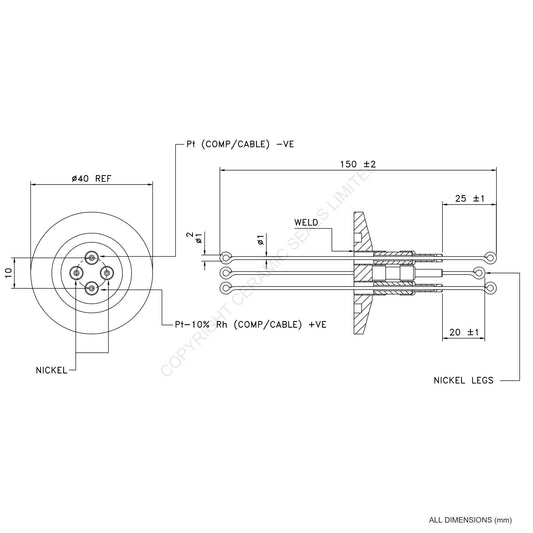

  • Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Platinum - 10% Rhodium / Platinum
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range 0°C to 1500°C
    Thermocouple Termination Loop
    Thermocouple Type Type S
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV
  • Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Power & Thermocouple O-Ring Type S incl. Compensating Cables

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Platinum - 10% Rhodium / Platinum
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Plug D5009005
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range 0°C to 1500°C
    Thermocouple Termination Spade
    Thermocouple Type Type S
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV

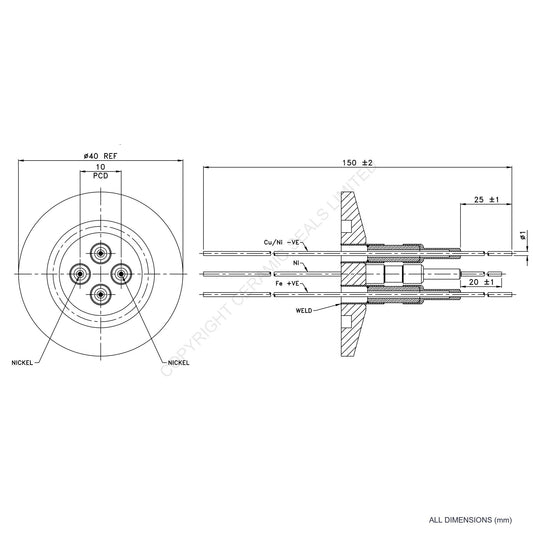

  • Power And Thermocouple O-Ring Type J

    Power And Thermocouple O-Ring Type J

    Power And Thermocouple O-Ring Type J

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Iron / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Plain
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV
  • Power And Thermocouple O-Ring Type J

    Power And Thermocouple O-Ring Type J

    Power And Thermocouple O-Ring Type J

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Iron / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Loop
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV
  • Power And Thermocouple O-Ring Type T

    Power And Thermocouple O-Ring Type T

    Power And Thermocouple O-Ring Type T

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Copper / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Plain
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV

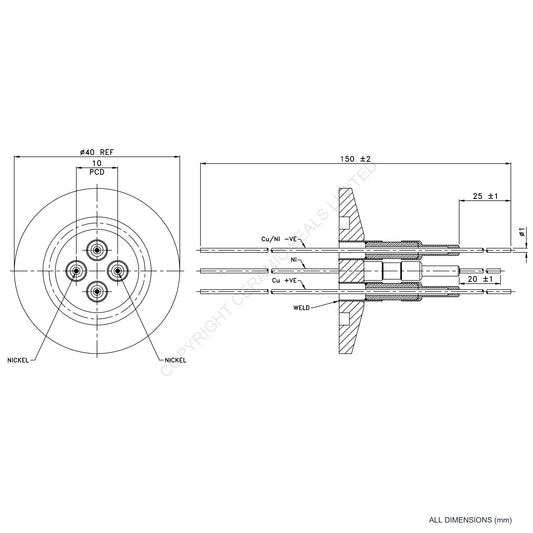

  • Power And Thermocouple O-Ring Type T

    Power And Thermocouple O-Ring Type T

    Power And Thermocouple O-Ring Type T

    Working Voltage: 2.5kV Current Rating: 5A Termination: Klein Flange
    Conductor Material Copper / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Nitrile
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Klein Flange
    Termination Size 40mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Loop
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -20°C to 150°C
    Working Voltage 2.5kV

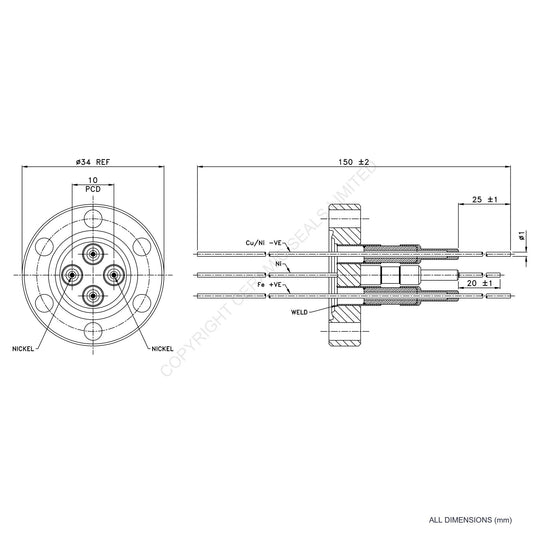

  • Power And Thermocouple Type J

    Power And Thermocouple Type J

    Power And Thermocouple Type J

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Iron / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination CF Flange
    Termination Size 34mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Plain
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
  • Power And Thermocouple Type J

    Power And Thermocouple Type J

    Power And Thermocouple Type J

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Iron / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination CF Flange
    Termination Size 34mm
    Thermocouple Range 20°C to 700°C
    Thermocouple Termination Loop
    Thermocouple Type Type J
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

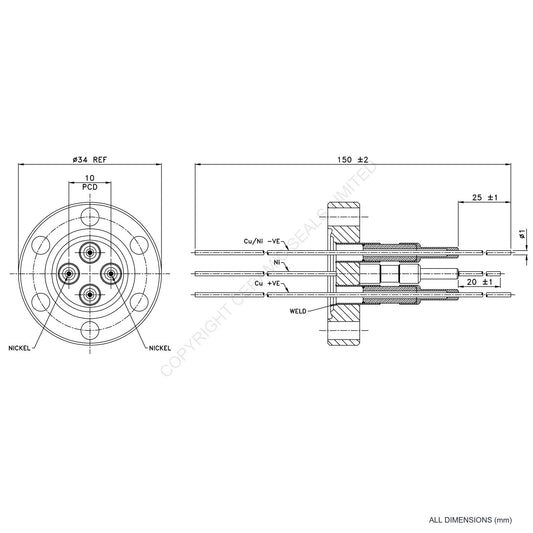

  • Power And Thermocouple Type T

    Power And Thermocouple Type T

    Power And Thermocouple Type T

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Copper / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination CF Flange
    Termination Size 34mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Plain
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV

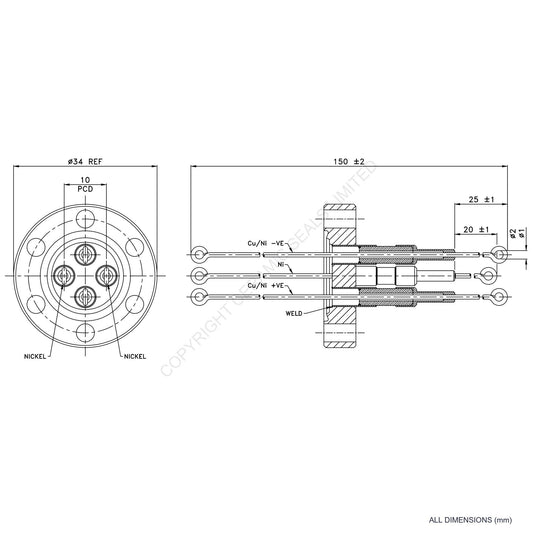

  • Power And Thermocouple Type T

    Power And Thermocouple Type T

    Power And Thermocouple Type T

    Working Voltage: 2.5kV Current Rating: 5A Termination: CF Flange
    Conductor Material Copper / Constantan
    Current Rating 5A
    Feedthrough Style Thermocouple & Power
    Flange Material Stainless Steel (1.4307)
    Gasket O Ring Material Copper
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination CF Flange
    Termination Size 34mm
    Thermocouple Range -185°C to 300°C
    Thermocouple Termination Loop
    Thermocouple Type Type T
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
    Working Voltage 2.5kV
