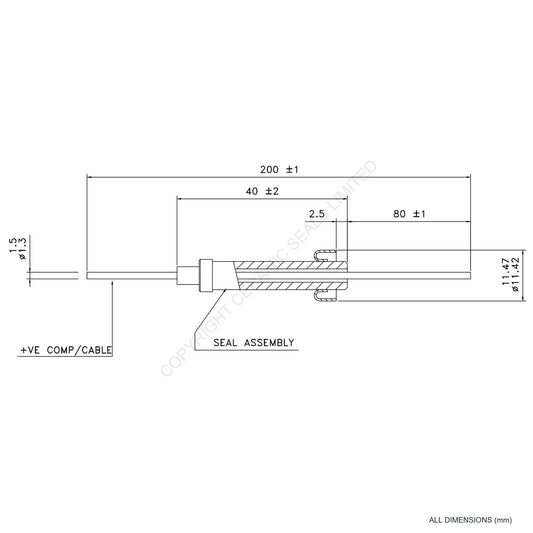

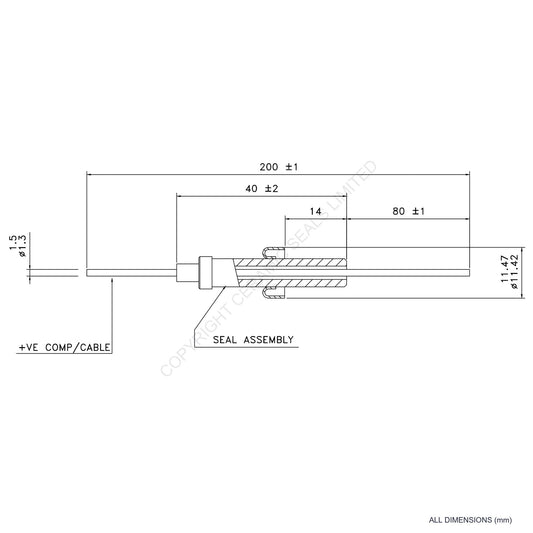

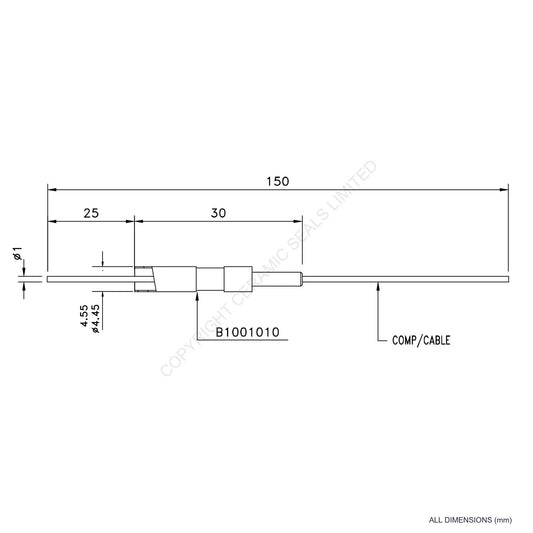

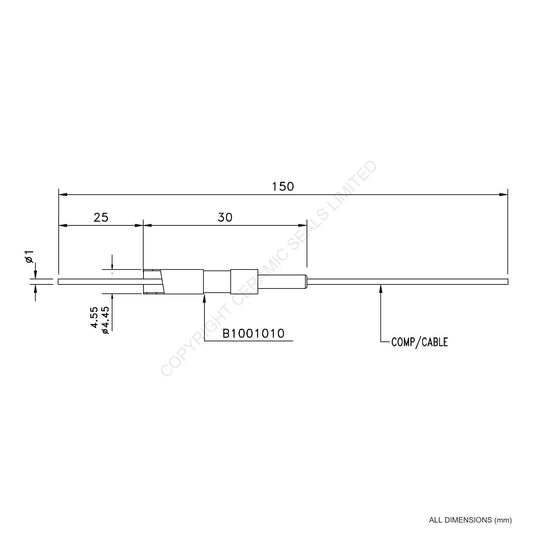

  • Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Tube (Weld)
    Conductor Material Platinum - 10% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Tube (Weld)
    Conductor Material Platinum - 10% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Skirt (Weld)
    Conductor Material Platinum - 10% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 10% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Skirt (Weld)
    Conductor Material Platinum - 10% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Tube (Weld)
    Conductor Material Platinum - 13% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Tube (Weld)
    Conductor Material Platinum - 13% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Skirt (Weld)
    Conductor Material Platinum - 13% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Single Thermocouple (+) Platinum - 13% Rhodium incl. Compensating Cable

    Working Voltage: - Current Rating: - Termination: Skirt (Weld)
    Conductor Material Platinum - 13% Rhodium
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C

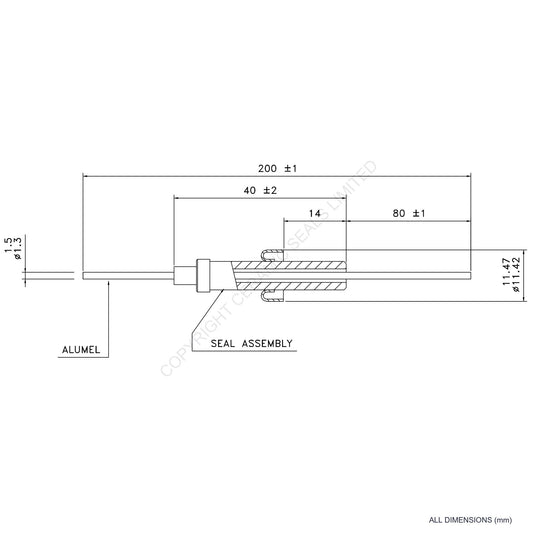

  • Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Working Voltage: - Current Rating: - Termination: Tube (Weld)
    Conductor Material Alumel
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Working Voltage: - Current Rating: - Termination: Tube (Weld)
    Conductor Material Alumel
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Tube (Weld)
    Termination Size 4.55/4.45mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Working Voltage: - Current Rating: - Termination: Skirt (Weld)
    Conductor Material Alumel
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
  • Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Single Thermocouple (-) Alumel

    Working Voltage: - Current Rating: - Termination: Skirt (Weld)
    Conductor Material Alumel
    Feedthrough Style Single
    Insulating Material Alumina (96-98%)
    Magnetic Yes
    Termination Skirt (Weld)
    Termination Size 11.47/11.42mm
    Thermocouple Termination Plain
    U H V Capability < 1 x 10¯⁹ mbar l s¯¹
    Working Temperature -196°C to 450°C
